Partiron

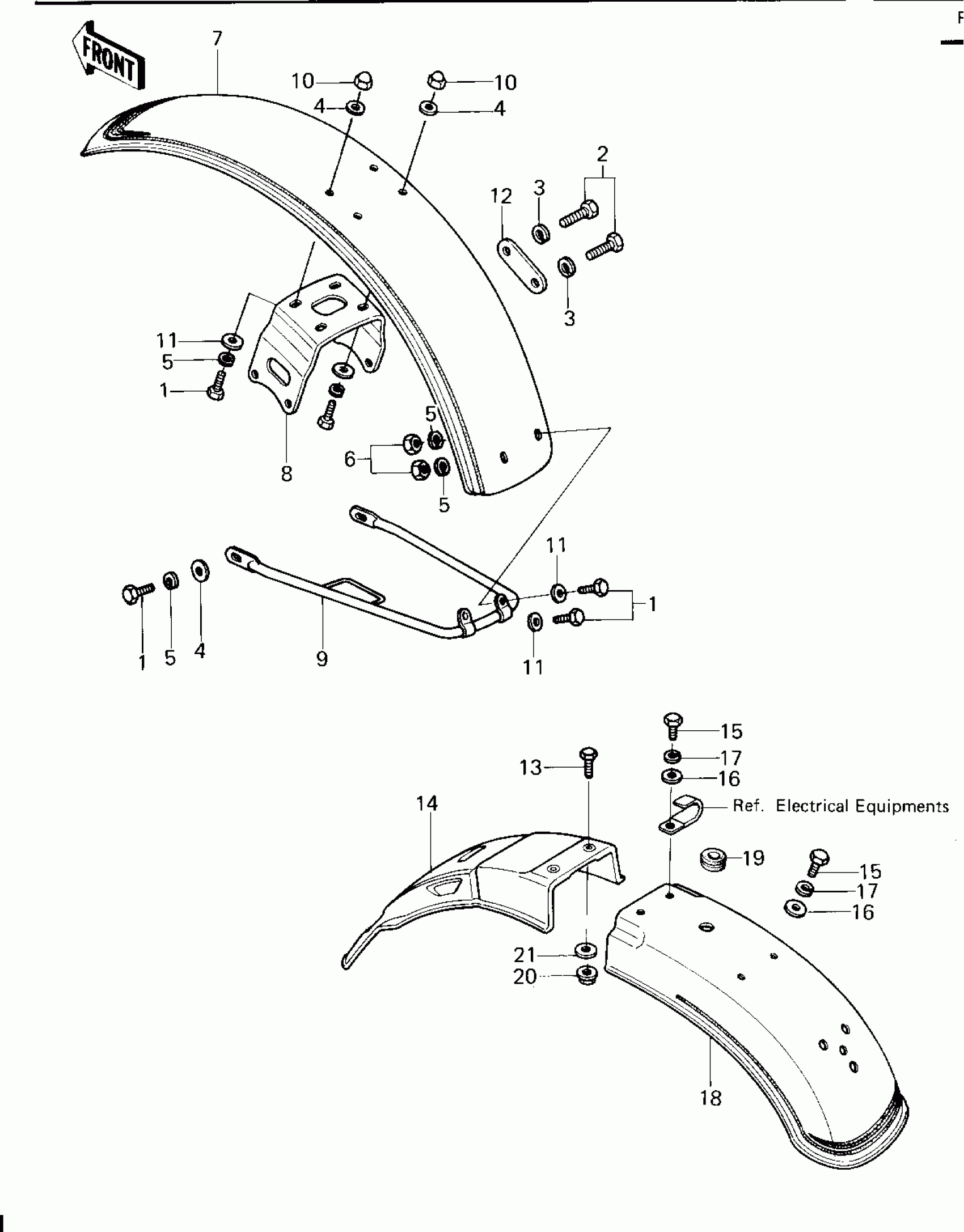

Kawasaki LTD FENDERS Diagram

#

Description
Price

1

BOLT-UPSET 6X14

112B0614

Unavailable

2

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

3

WASHER SPRING 8MM

461F0800

$0.40

4

WASHER PLAIN 6MM

411B0600

$2.84

5

WASHER SPRING 6MM

461F0600

$0.69

6

NUT 6MM

311B0600

$0.93

7

FENDER-FR,BLACK PEARL

35004-1019-B5

$138.98

7

FENDER-FR,P.RED

35001-5015-A5

$225.27

8

BRACE,FRONT FENDER

35009-1005

$48.83

9

STAY,FRONT FENDER

35011-1005

$99.15

10

NUT-6MM

322N0600

$1.08

11

WASHER PLAIN

92022-024

$3.65

12

SPACER,FRONT FENDER

92026-1008

Unavailable

13

BOLT-UPSET,6X16

112G0616

$1.10

14

FENDER-RR

35022-1046

$81.19

15

BOLT-UPSET 6X14

112B0614

Unavailable

16

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

17

WASHER SPRING 6MM

461F0600

$0.69

18

FENDER-RR,BLACK PEARL

35022-1005-B5

$119.52

18

FENDER-RR,C.P.RED

35022-5002-A5

$90.48

19

GROMMET,10MM

92071-019

$3.89

20

NUT,FLANGED,6MM

92015-1078

Unavailable

21

WASHER,6.5X20X1.6

92022-125

$1.40
