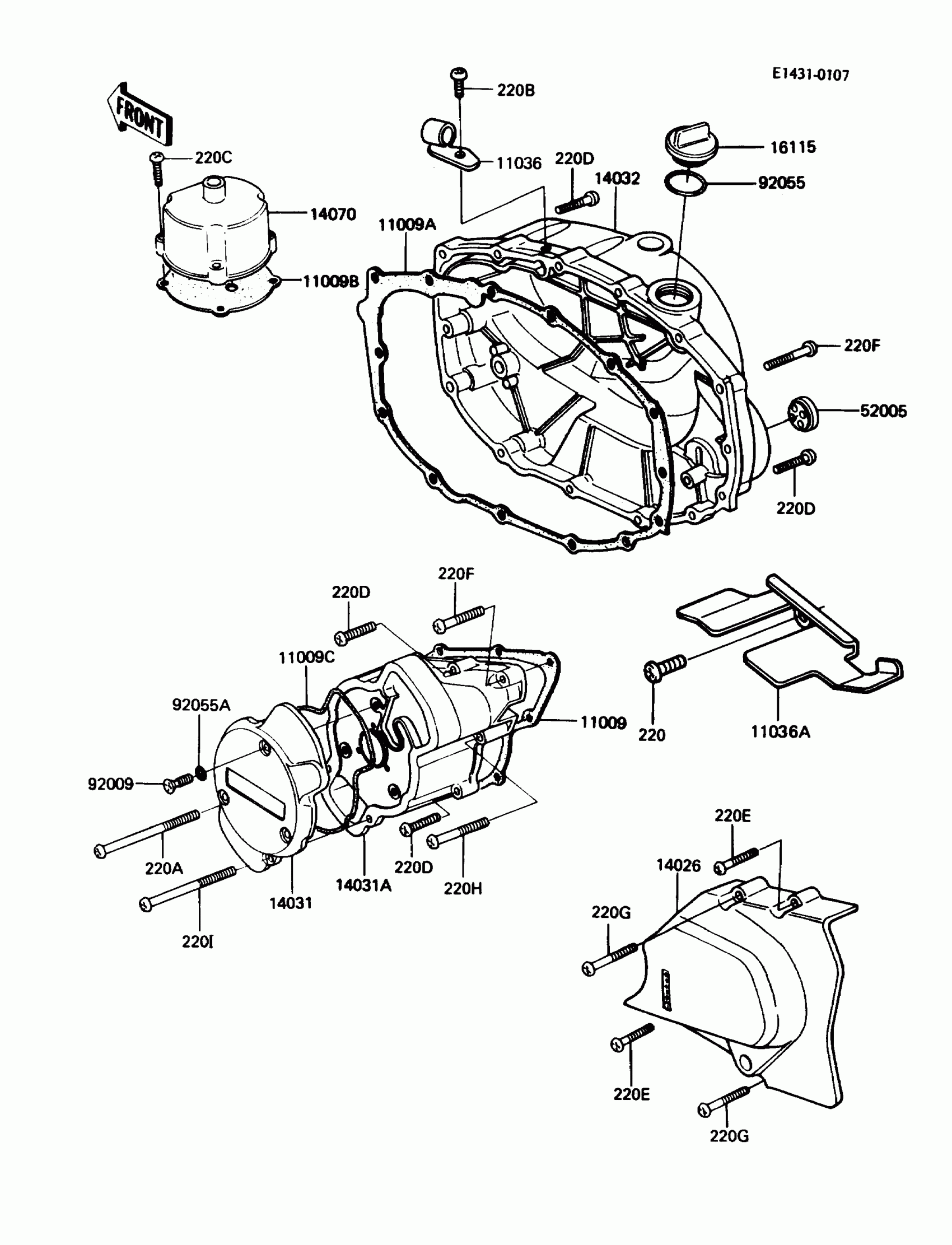

Kawasaki LTD Engine Cover(s) Diagram
#
Description
Price
11009
GASKET,GENERATOR COVER
11009-1070
Unavailable
11009A
GASKET,CLUTCH COVER
11009-1071
Unavailable
11009B
GASKET,BREATHER BODY
11009-1239
Unavailable
11009C
GASKET,GENERATOR COVER
11009-1309
Unavailable
11036
BRACKET-A,CLUTCH CABLE
11036-1124
Unavailable
11036A
BRACKET-A,HARNESS
11036-1862
Unavailable
14026
COVER-CHAIN
14026-1102
Unavailable
14031
COVER-GENERATOR,"B"
14031-1101
Unavailable
14031A
COVER-GENERATOR,"A"
14031-1112
Unavailable
14032
COVER-CLUTCH
14032-1070
Unavailable
14070
BODY-BREATHER
14070-1002
$37.24
16115
CAP-OIL FILLER
16115-1009
$14.30
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92009
SCREW,6X30
92009-1013
Unavailable
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,5.28X1.78
92055-109
$4.39
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
220A
SCREW-PAN-CROS
220X06100
$4.13
220B
SCREW-PAN-CROS
220X0612
$3.41
220C
SCREW-PAN-CROS
220X0625
Unavailable
220D
SCREW-PAN-CROS
220X0630
$3.84
220E
SCREW-PAN-CROS
220X0635
$4.02
220F
SCREW-PAN-CROS
220X0640
$3.84
220G
SCREW-PAN-CROS
220X0645
$4.32
220H
SCREW-PAN-CROS
220X0655
Unavailable
220I
SCREW-PAN-CROS
220X0690
$3.93
