Description

Price

11005

CYLINDER-ENGINE,FR

11005-1456

Unavailable

11005A

CYLINDER-ENGINE,RR

11005-1458

Unavailable

11007

LINER-CYLINDER

11007-1072

Unavailable

11009

GASKET,CYLINDER BASE

11060-1084

Unavailable

13001

PISTON-ENGINE,STD

13001-1214

Unavailable

13002

PIN-PISTON

13002-1056

$28.79

13008

RING-SET-PISTON,STD

13008-1061

Unavailable

13024

RING-SET PISTON LL,O/

13024-1061

Unavailable

13025

RING-SET PISTON L,O/S

13025-1061

Unavailable

13027

PISTON-ENGINE LL,O/S,

13027-1127

Unavailable

13029

PISTON-ENGINE L,O/S,0

13029-1127

Unavailable

92004

STUD,6X18

92004-1154

$5.17

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92033

RING-SNAP

92033-1188

$3.89

92043

PIN,11X14X12.3

92043-1266

$1.08

92055

RING-O,90MM

92055-1273

$11.12

130

BOLT-FLANGED

130W0610

$3.09

172

BOLT-STUD,6X20

172G0620

$1.31

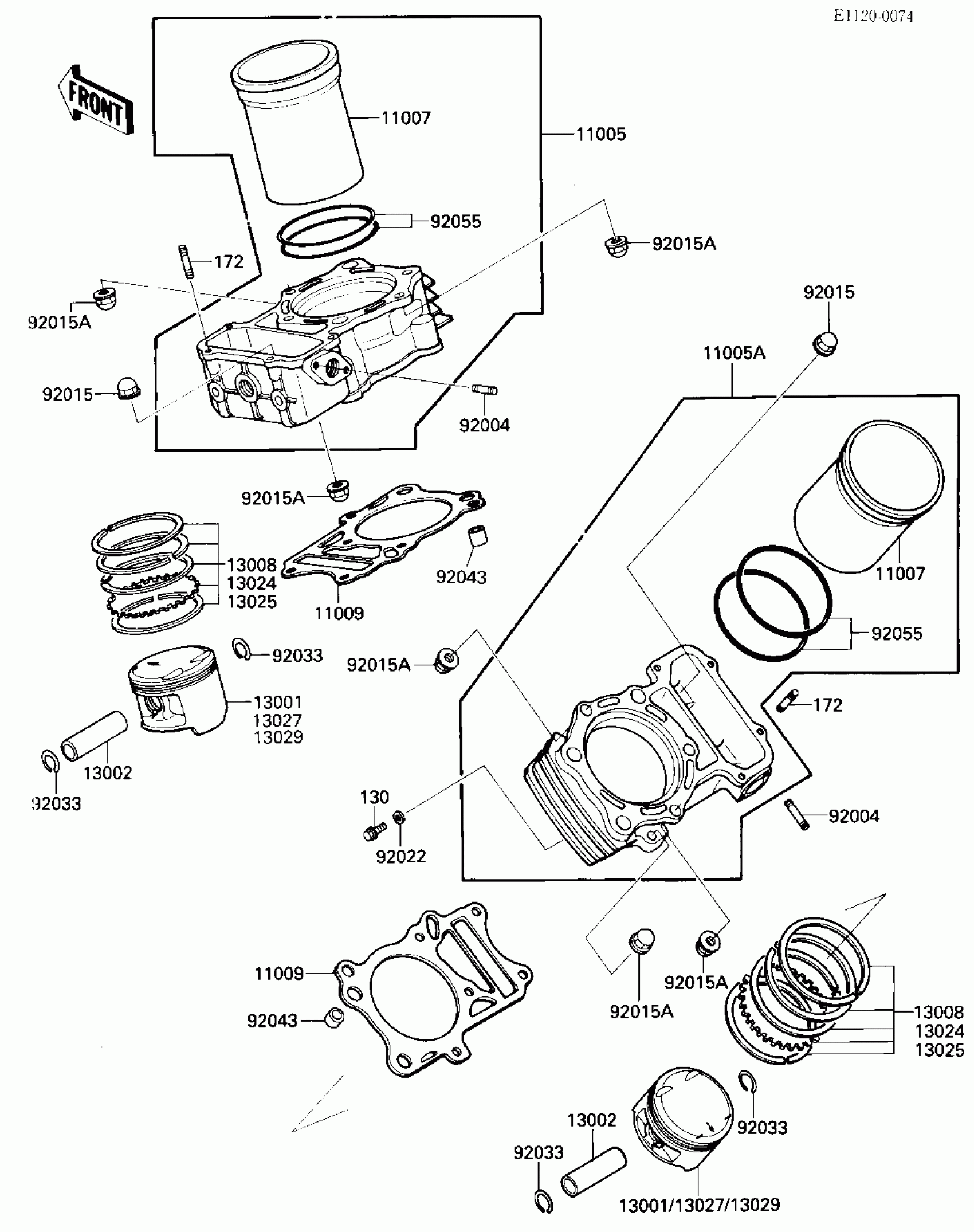

Kawasaki LTD CYLINDERS/PISTONS Diagram

CYLINDER-ENGINE,FR

CYLINDER-ENGINE,RR

LINER-CYLINDER

GASKET,CYLINDER BASE

PISTON-ENGINE,STD

PIN-PISTON

RING-SET-PISTON,STD

RING-SET PISTON LL,O/

RING-SET PISTON L,O/S

PISTON-ENGINE LL,O/S,

PISTON-ENGINE L,O/S,0

STUD,6X18

NUT,8MM

NUT,CAP,8MM,BLACK

WASHER OIL PUMP BANJO

RING-SNAP

PIN,11X14X12.3

RING-O,90MM

BOLT-FLANGED

BOLT-STUD,6X20
