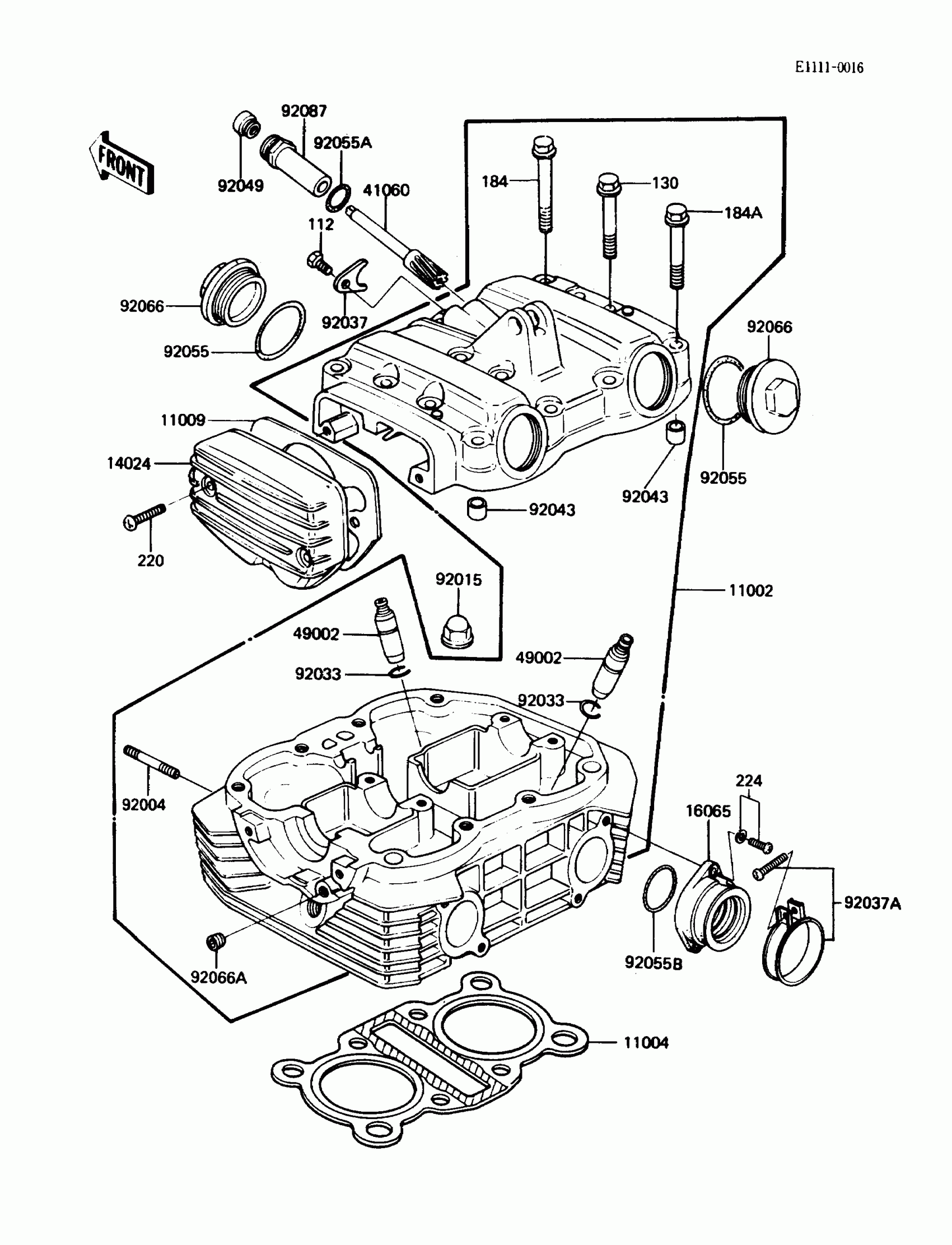

Kawasaki LTD Cylinder Head Diagram

#

Description
Price

11002

HEAD-ASSY-CYLINDER

11002-1172

Unavailable

11004

GASKET-HEAD

11004-1036

Unavailable

11009

GASKET,BREAKER

11009-1067

Unavailable

14024

COVER,BREAKER,BARREL

14025-1208

Unavailable

16065

HOLDER-CARBURETOR

16065-1069

Unavailable

41060

GEAR-METER SCREW

41060-1020

Unavailable

49002

GUIDE-VALVE

49002-1021

Unavailable

92004

STUD,6X30

92004-1128

$5.29

92015

NUT,CAP,8MM

92015-1151

$5.00

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP,METER GEAR

92037-1030

Unavailable

92037A

CLAMP,ID=53,BLACK

92037-1304

$10.28

92043

PIN,9.2X12X14

92043-1265

$8.19

92049

SEAL-OIL

92050-075

$11.39

92055

RING-O,36MM

92055-1005

$6.16

92055A

RING-O,13X1.9

92055-1021

$7.62

92055B

RING-O,33.2MM

92055-1155

$14.47

92066

PLUG,36X7.5

92066-1006

$16.53

92066A

PLUG,1/8X7

92066-1173

$6.89

92087

BUSHING-METER GEAR

92087-1001

Unavailable

112

BOLT-UPSET

112X0614

$2.22

130

BOLT-FLANGED

130Y0650

$4.87

184

BOLT-UPSET-WP-SMALL

184Y0850

$4.18

184A

BOLT-UPSET-WP-SMALL

184Y0860

$4.18

220

SCREW-PAN-CROS

220X0625

Unavailable

224

SCREW-PAN-WP-CROS

224X0618

$3.09
