Description

Price

11009

GASKET,12X22X2

92065-097

$0.74

14001

SET-CRANKCASE,BARREL

14001-5093

Unavailable

14013

RING-POSITION

14013-004

$10.19

14013A

RING-POSITION,T=1.98

14013-1004

$4.96

92004

STUD,8X146

92004-1016

Unavailable

92027

COLLAR,15.5X22X13

92027-1391

$8.00

92043

PIN,DOWEL,12X14

92042-031

$6.57

92043A

PIN,DOWEL,10X14

92043-1037

$0.74

92049

SEAL-OIL,OIL,OUTPUT SHAFT

92049-1019

Unavailable

92049A

SEAL-OIL,PLUG

92049-1074

Unavailable

92049B

SEAL-OIL,SC325210

92050-024

$8.17

92049C

SEAL-OIL,TB13225.5

92051-005

$7.74

92062

NOZZLE,BLACK

92062-011

$8.58

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92075

DAMPER,RR,UPP

92075-1363

$14.74

92075A

DAMPER,RR,LWR

92075-1364

$15.55

92075B

DAMPER,FR

92075-1437

$13.05

670

O RING,10MM

670B2010

$1.50

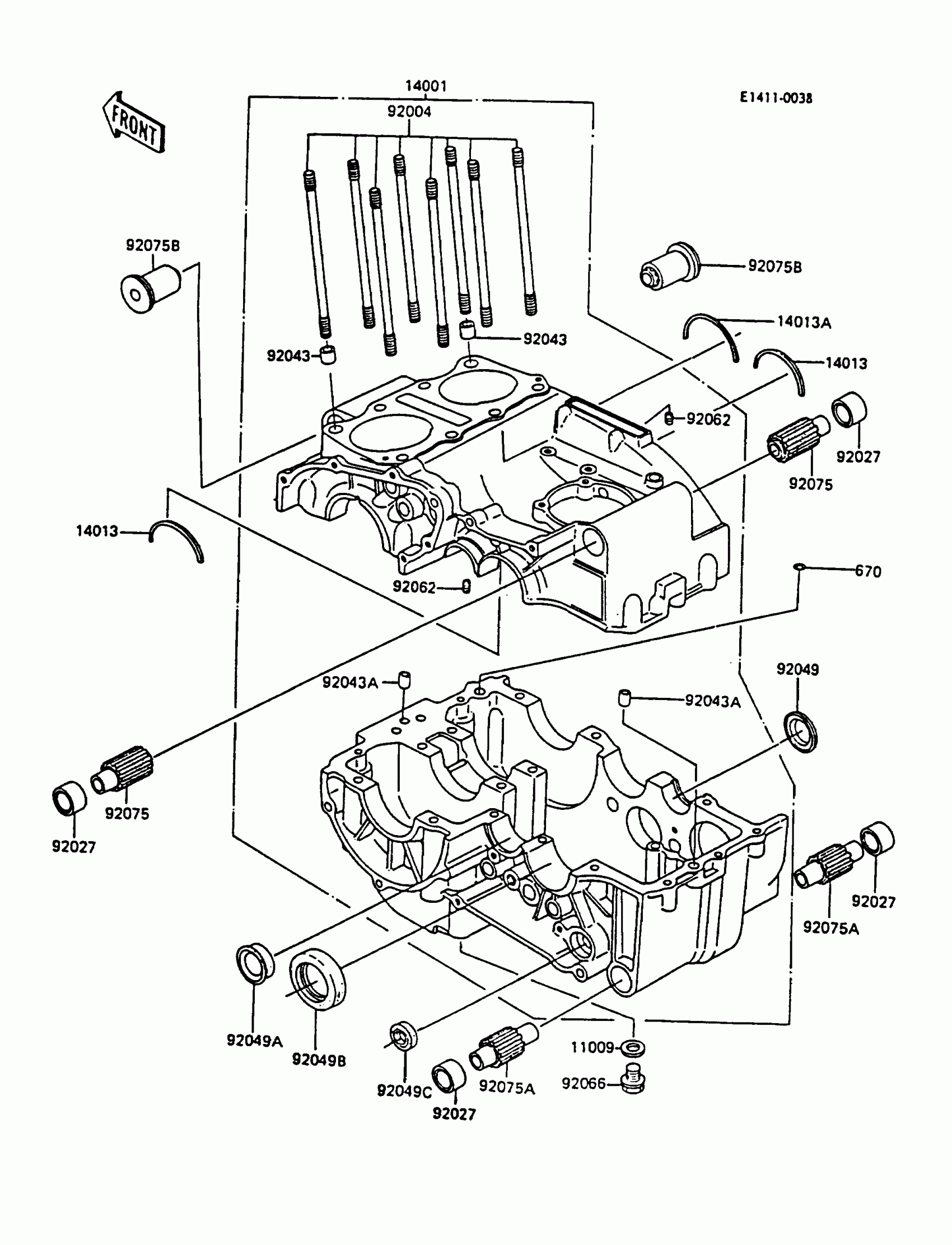

Kawasaki LTD Crankcase Diagram

GASKET,12X22X2

SET-CRANKCASE,BARREL

RING-POSITION

RING-POSITION,T=1.98

STUD,8X146

COLLAR,15.5X22X13

PIN,DOWEL,12X14

PIN,DOWEL,10X14

SEAL-OIL,OIL,OUTPUT SHAFT

SEAL-OIL,PLUG

SEAL-OIL,SC325210

SEAL-OIL,TB13225.5

NOZZLE,BLACK

PLUG,OIL DRAIN,12X15

DAMPER,RR,UPP

DAMPER,RR,LWR

DAMPER,FR

O RING,10MM
