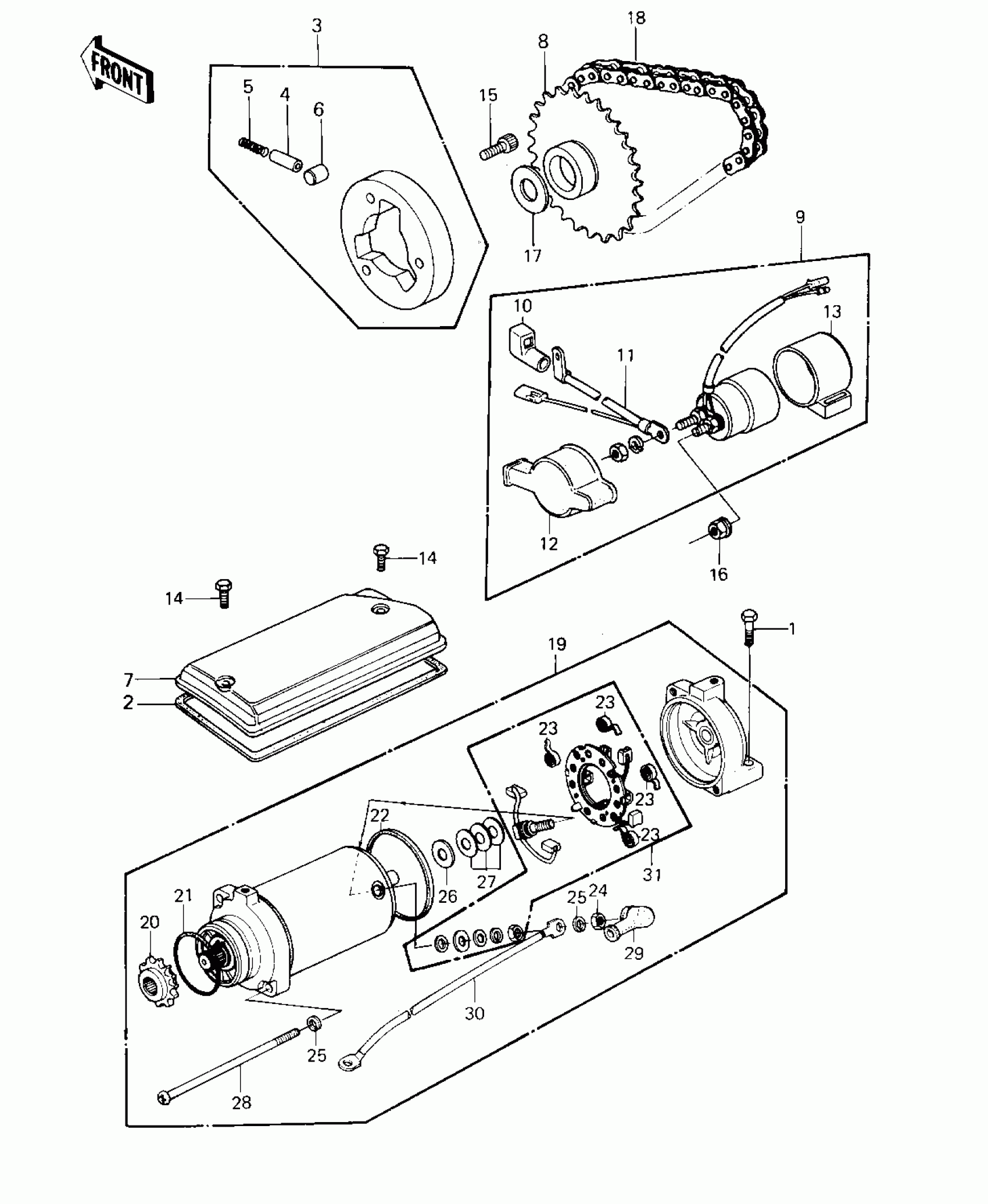

Kawasaki LTD Belt STARTER MOTOR/STARTER CLUTCH ('80 D1) Diagram
#
Description
Price
1
BOLT-UPSET
112G0625
$3.62
2
GASKET,STARTER COVER
11009-1006
Unavailable
3
CLUTCH ASSY,STARTER
13193-1001
Unavailable
4
PIN
92043-087
$12.76
5
SPRING
92081-110
$4.76
6
ROLLER,15X13
92122-004
$11.07
7
COVER,STARTER
14025-1284
Unavailable
8
SPROCKET,ONWAY CLUTCH
12046-1030
Unavailable
9
SWITCH,MAGNETIC
27010-1040
$182.95
10
CAP,MAG SWTCH TERMNL
21017-021
$13.09
11
WIRE LEAD MAG SWITCH
26011-1107
$31.33
12
CAP,MAGNETIC SWITCH
21141-004
Unavailable
13
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
14
BOLT,6X10
92001-1151
$5.01
15
BOLT-SOCKET,8X16
120P0816
$4.15
16
NUT,LOCK 6MM
92017-014
$7.51
17
SPACER,25X40X1
92026-1004
$7.24
18
CHAIN,DYNAMO
92057-1009
$49.50
19
MOTOR ASSY,STARTER
21163-1011
Unavailable
20
SPROCKET-ASSY
21053-002
Unavailable
21
RING-O,42.8MM
21027-005
Unavailable
22
RING-O,64MM
92055-1086
$10.00
23
SPRING,CARBON BRUSH
21040-1002
$11.17
24
NUT 6MM
312B0600
$0.72
25
WASHER SPRING 6MM
461F0600
$0.69
26
WASHER,9.1X18X0.8
92022-1132
$6.22
27
WASHER,9.1X18X0.2
21025-011
$6.22
28
SCREW,PAN HEAD,6X119
92009-1097
Unavailable
29
CAP,STARTING MOTOR
21017-020
$8.42
30
WIRE STRTER MOT LEAD
26010-035
$45.78
31
BRUSH SET,CARBON
21039-1005
Unavailable
