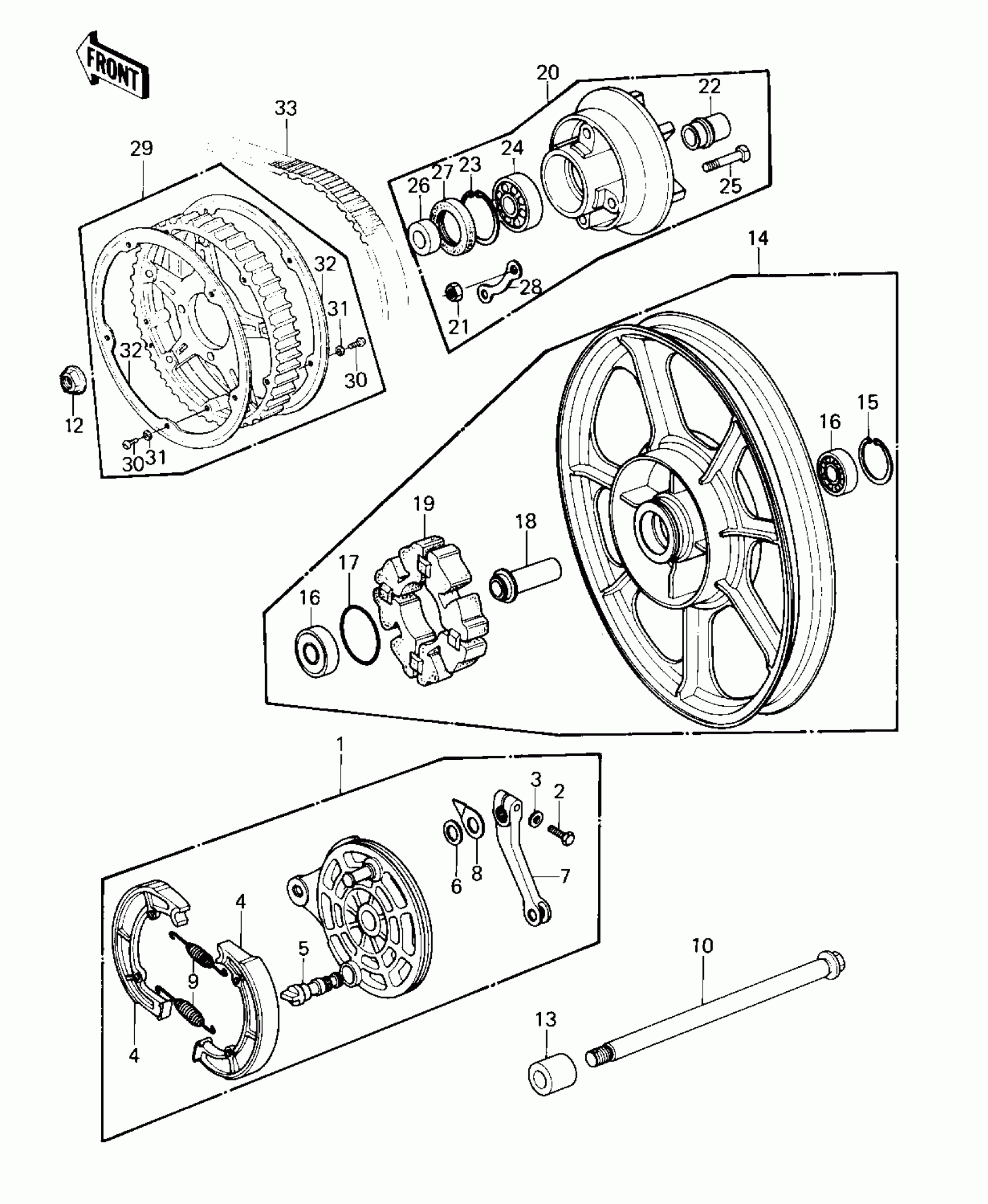

Kawasaki LTD Belt REAR WHEEL/HUB/BRAKE/BELT ('80 D1) Diagram

#

Description
Price

1

PANEL-ASY,RR BRK

41035-1088

$269.91

2

BOLT HEX HEAD 8X28

114G0828

Unavailable

3

WASHER PLAIN 8MM

410B0800

Unavailable

4

SHOE-BRAKE

41048-1069

$22.11

5

CAM-BRAKE

41050-1001

$36.94

6

SEAL,BRAKE CAM

41051-003

$3.25

7

LEVER-BRAKE CAM

41053-1001

$36.34

8

INDICATOR,BRAKE SHOE

41085-004

Unavailable

9

SPRING,BRAKE SHOE

42020-004

$6.48

10

AXLE,REAR

41068-1024

$57.44

11

PIN-COTTER,4.0X25

550D4025

Unavailable

12

NUT,16MM

92015-1041

$12.17

13

COLLAR,REAR AXLE,R.H.

92027-1198

$12.41

14

SOLID WHEEL ASSY,REAR

41073-1055

$321.07

15

RING-SNAP,47MM

92033-1042

$3.25

16

BEARING BALL #6303Z

601B6303Z

Unavailable

17

O RING,60MM

671B2560

$5.13

18

COLLAR,REAR HUB BRG

92027-1196

$26.10

19

DAMPER,SHOCK,RR HUB

92075-1008

Unavailable

20

COUPLING ASSY,RR HUB

42033-1011

$156.08

21

NUT-HEX-FINE,10MM

314B1000

Unavailable

22

SLEEVE,RR HUB COUPLING

42036-1002

Unavailable

23

RING-SNAP,52MM

92033-1043

$6.15

24

BEARING-BALL,#6205C3

601B6205

$15.54

25

BOLT,HUB SPROCKET,10X55

92003-156

Unavailable

26

COLLAR REAR AXLE,L.H.

92027-1197

Unavailable

27

SEAL-OIL,TWC35527

92052-006

Unavailable

28

WASHER,SPROCKET LOCK

92088-005

$4.88

29

SPROCKET-HUB,60T

42041-5002

$419.89

30

SCREW PAN HEAD 5X8

220B0508

Unavailable

31

WASHER SPRING 5MM

461F0500

Unavailable

32

RING,REAR SPROCKET

43058-1013

$49.14

33

BELT,DRIVE

59011-1001

Unavailable
