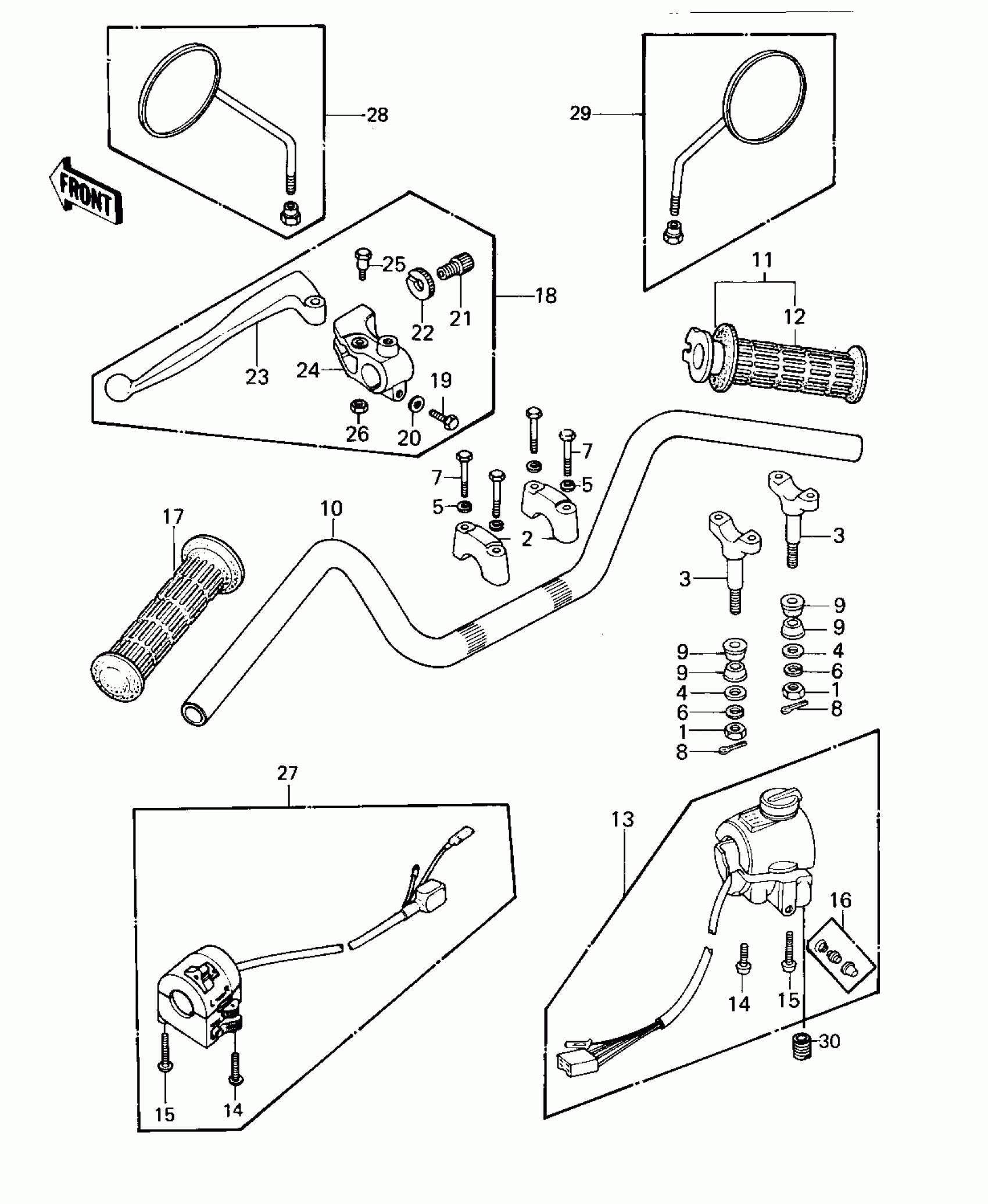

Kawasaki LTD Belt HANDLEBAR ('80 D1) Diagram

#

Description
Price

1

NUT-HEX-FINE,10MM

314B1000

Unavailable

2

HOLDER-HANDLE,UPP

46012-008

$37.74

3

HOLDER-HANDLE,LWR

46012-010

Unavailable

4

PLATE,HANDLE HOLDER

46016-003

$6.74

5

WASHER SPRING 8MM

461F0800

Unavailable

6

WASHER SPRING 10MM

461F1000

Unavailable

7

BOLT 8X38

92001-1405

$16.50

8

PIN-SNAP,8MM

554A0800

Unavailable

9

DAMPER,HANDLE HOLDER

92075-039

$4.69

10

HANDLEBAR

46003-1045

$211.20

11

GRIP ASSY,THROTTLE

46019-038

$118.44

12

RUBBER,R.H GRIP

46061-018

Unavailable

13

HOUSING ASSY,R.H

46091-1039

Unavailable

14

SCREW PAN HEAD 5X30

220B0530

Unavailable

15

SCREW-PAN-CROS

220B0535

$2.76

16

SWITCH,PUSH BUTTON

27010-1009

$9.20

17

RUBBER,L.H GRIP

46075-028

$39.98

18

LEVER ASSY,CLUTCH

46076-052

$101.70

19

BOLT HEX HEAD 6X25

110N0625

Unavailable

20

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

21

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

22

NUT,CABLE ADUST NUT

46056-007

Unavailable

23

LEVER-GRIP,CLUTCH

46092-023

$35.96

24

HOLDER,CLUTCH LEVER

46094-017

Unavailable

25

BOLT,HEX HEAD

92007-047

Unavailable

26

NUT,LOCK,6MM

92019-008

$4.26

27

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

28

MIRROR-ASSY,LH

56001-1007

Unavailable

29

MIRROR-ASSY,RH

56001-1008

Unavailable

30

PLUG,B,KICKSTARTER

92066-061

Unavailable
