1980 Kawasaki LTD Belt Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

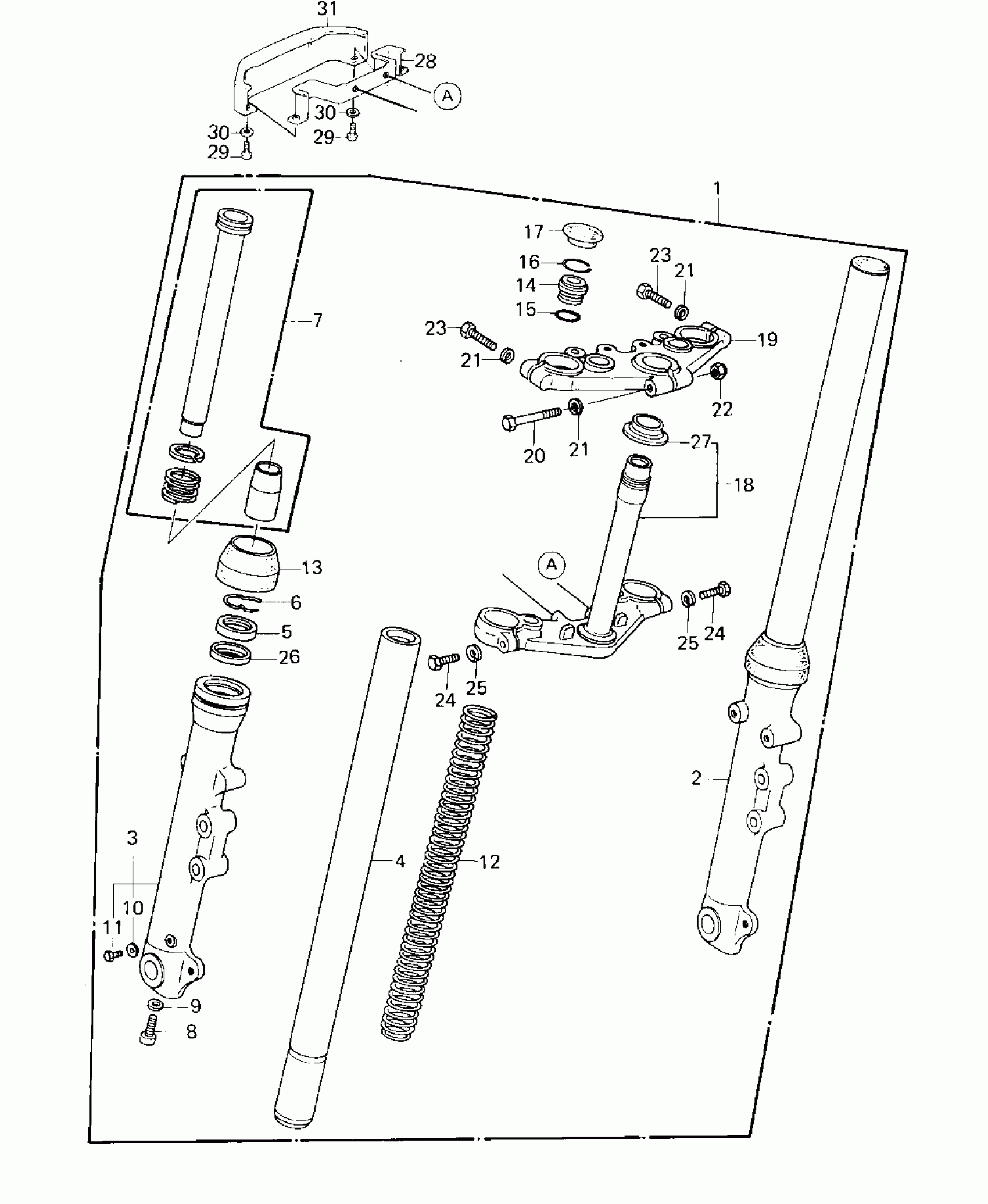

1980 Kawasaki LTD Belt Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT

44001-1214

1
Out of stock

2

TUBE,RH,FORK OUTER

44006-1029

1
Out of stock

3

TUBE,LH,FORK OUTER

44005-1029

1
Out of stock

4

PIPE-FORK INNER

44013-1025

1
Out of stock

5

SEAL-OIL,FORK

92049-1077

1
Out of stock

6

RING,OIL SEAL STOPPER

44043-057

1
Out of stock

7

CYLINDER-FORK

44022-1028

1
Out of stock

8

BOLT,FORK CYLINDER

44041-078

1
Out of stock

9

GASKET,FORK CYLINDER BOLT

44045-051

1
Out of stock

10

GASKET,DRAIN PLUG

44045-047

1
Out of stock

11

BOLT HEX HEAD 6X8

110B0608

1
Out of stock

12

SPRING,FORK INNER

44026-1037

1
Out of stock

13

SEAL,FORK

92093-1063

1
Out of stock

14

SEAT-FORK SPRING

44029-022

1
Out of stock

15

RING-O

44046-025

1
Out of stock

16

RING-SNAP

44044-023

1
Out of stock

17

CAP,RUBBER,FORK TOP

11012-1021

1
Out of stock

18

HOLDER-FORK UNDER

44037-1014

1
Out of stock

19

HEAD,STEERING STEM

44039-1023

1
Out of stock

20

BOLT,HEX HEAD,8X55

92001-1064

1
Out of stock

21

WASHER SPRING 8MM

461F0800

1
Out of stock

22

NUT,LOCK,8MM

92015-1124

1
Out of stock

23

BOLT,8X40

92001-1063

1
Out of stock

24

BOLT,HEX HEAD 10X35

92001-1252

1
Out of stock

25

WASHER SPRING 10MM

461F1000

1
Out of stock

26

SPACER,FORK

92026-1005

1
Out of stock

27

RACE,STEERING STEM BEARING

92047-006

1
Out of stock

28

BRACKET,FORK COVER

11034-1698

1
Out of stock

29

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

30

WASHER PLAIN 4MM

410B0400

1
Out of stock

31

COVER,FORK

44033-1042

1
Out of stock
