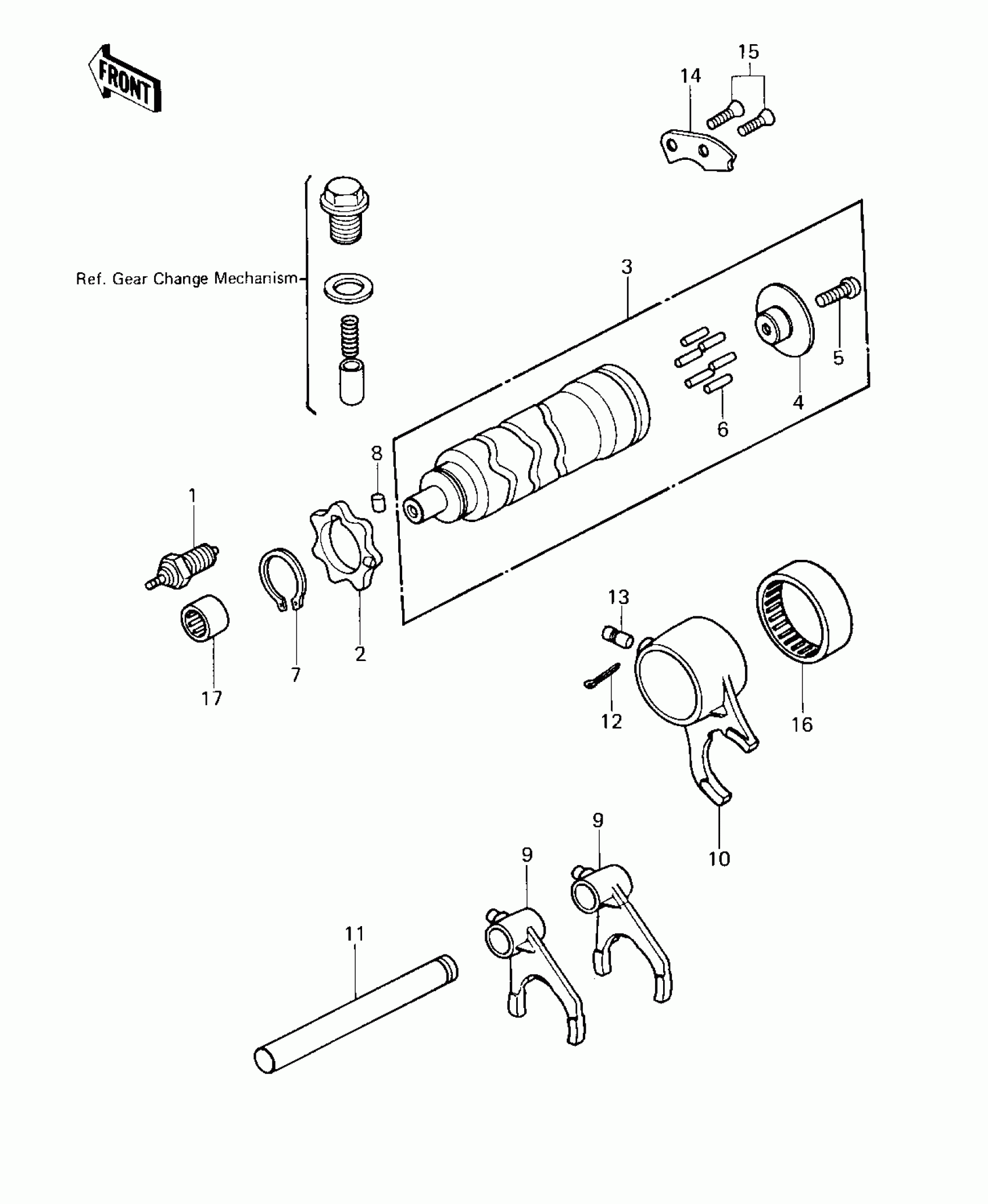

Kawasaki LTD Belt GEAR CHANGE DRUM & FORKS ('80 D1) Diagram

#

Description
Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

CAM-CHANGE DRUM

13145-1058

$22.72

3

DRUM ASSY,CHANGE

13239-1011

Unavailable

4

PLATE,SHIFT DRUM PIN

13142-016

Unavailable

5

SCREW-PAN-CROS,6X14

220B0614

$1.48

6

PIN,DOWEL,4X15.8

92042-014

$0.43

7

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

8

ROLLER,4X6

610A0406

$4.31

9

FORK-SHIFT,1,4&2,3

13140-1067

Unavailable

10

FORK-SHIFT,5TH&TOP

13140-1053

Unavailable

11

ROD,SHIFT

13209-022

Unavailable

12

PIN-COTTER,3.0X20

550D3020

$1.78

13

PIN,DOWEL,8X18

92042-021

$11.51

14

PLATE,SIFT DRM POSITN

14014-1001

Unavailable

15

SCREW,CSK,6X16

92009-1007

Unavailable

16

BEARING-NEEDLE,37BTM4312

92046-051

$25.09

17

BEARING-NEEDLE,HK1210

92046-1010

Unavailable
