Description

Price

1

AXLE,FR,L=230

41068-1099

Unavailable

2

NUT,14MM

92015-1407

$9.91

3

COLLAR,FRONT AXLE

92027-1085

$32.10

4

SOLID WHEEL ASSY,FRNT

41073-1041

$737.46

5

COVER,DUST,RH

14025-1042

Unavailable

6

COVER,DUST,L.H.

14025-1043

Unavailable

7

SCREW-PAN-CROS

220B0514

$4.04

8

WASHER-PLAIN,5MM

411B0500

$0.46

9

RING-SNAP,42MM

92033-1041

$6.16

10

BEARING BALL #6302Z

601B6302Z

$27.38

11

BOLT,FLANGED,8X28

92001-1095

$6.57

12

COLLAR,FRONT WHEEL

92027-1171

Unavailable

13

OIL SEAL,WTC22427

92052-011

Unavailable

14

GEAR BOX ASSY,METER

41078-1005

Unavailable

15

GEAR,SPEEDOMETER,26T

41060-1015

$21.14

16

GEAR-METER SCREW,9T

41060-1016

$21.74

17

WASHER,5.1X9X0.4

41063-001

$4.69

18

RECEIVER,SPEED GEAR

41064-1005

$11.21

19

WASHER THRUST

41065-006

$2.88

20

PIN,SPRING

41082-001

$3.92

21

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

22

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

23

WASHER,5.1X9X0.4

41063-001

$4.69

24

BUSHING-METER GEAR

92087-1002

$23.27

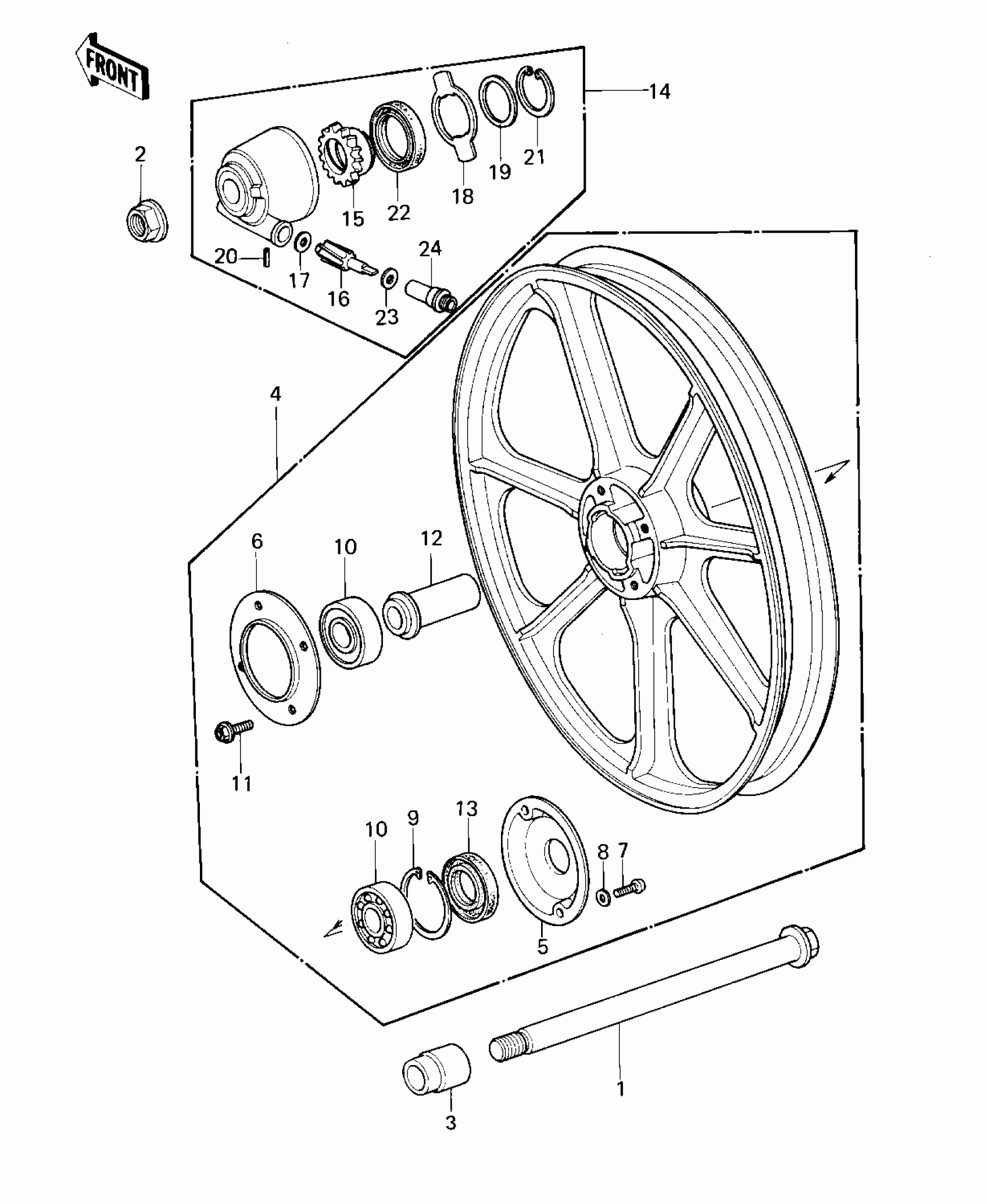

Kawasaki LTD Belt FRONT WHEEL/HUB ('80 D1) Diagram

AXLE,FR,L=230

NUT,14MM

COLLAR,FRONT AXLE

SOLID WHEEL ASSY,FRNT

COVER,DUST,RH

COVER,DUST,L.H.

SCREW-PAN-CROS

WASHER-PLAIN,5MM

RING-SNAP,42MM

BEARING BALL #6302Z

BOLT,FLANGED,8X28

COLLAR,FRONT WHEEL

OIL SEAL,WTC22427

GEAR BOX ASSY,METER

GEAR,SPEEDOMETER,26T

GEAR-METER SCREW,9T

WASHER,5.1X9X0.4

RECEIVER,SPEED GEAR

WASHER THRUST

PIN,SPRING

CIRCLIP-TYPE-C,22MM

SEAL-OIL,BJN30427-C3

WASHER,5.1X9X0.4

BUSHING-METER GEAR
