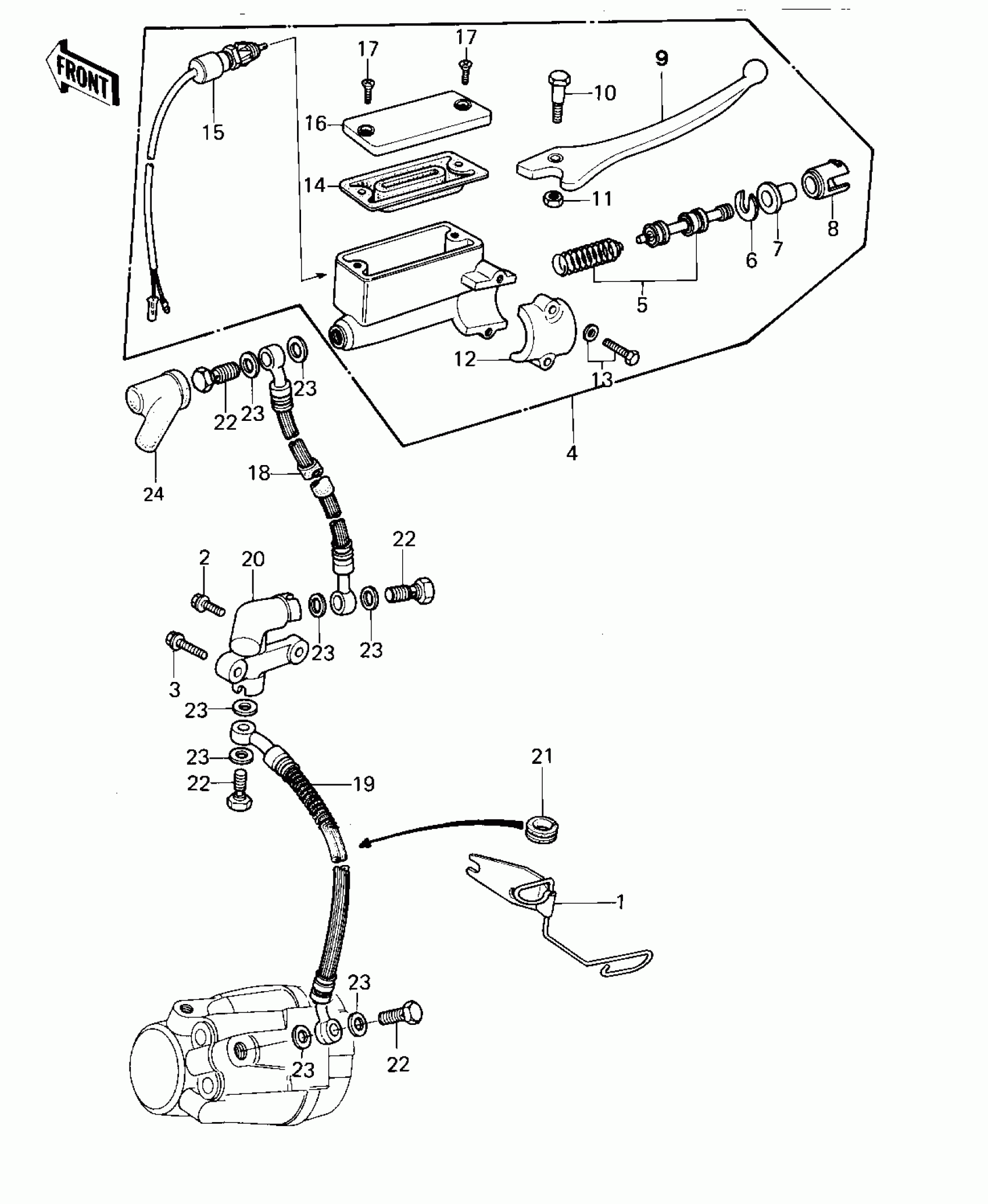

Kawasaki LTD Belt FRONT MASTER CYLINDER ('80 D1) Diagram

#

Description
Price

1

BRACKET,FRONT FENDER

11034-1573

Unavailable

2

BOLT,FLANGED,6X20

130B0620

$1.69

3

BOLT,FLANGED,6X30

131B0630

$1.42

4

CYLINDER-ASSY-MASTER

43015-1044

Unavailable

5

PISTON-COMP-BRAKE

43020-1026

$95.03

6

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

7

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

8

LINER,PISTON

14008-1007

Unavailable

9

LEVER-GRIP,FRONT BRAKE

46092-1009

$36.84

10

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

11

NUT 6MM

312B0600

$0.72

12

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

13

BOLT,6X25,W/WASHER

43033-003

Unavailable

14

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

15

SWITCH,BRAKE

27010-1028

$33.48

16

CAP-BRAKE

43026-1006

Unavailable

17

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

18

HOSE,BRAKE,M/C,L=390

43059-1037

Unavailable

19

HOSE,BRAKE,CALIPER

43059-1043

$172.11

20

JOINT,BRAKE,TWO WAY

43061-1003

$30.29

21

GROMMET,HOSE CLAMP

43064-006

$4.31

22

BOLT,OIL,L=23

92002-1888

$5.48

23

WASHER,10.5X15X1.5

43067-001

$2.15

24

BOOT,DUST

49006-1041

$11.49
