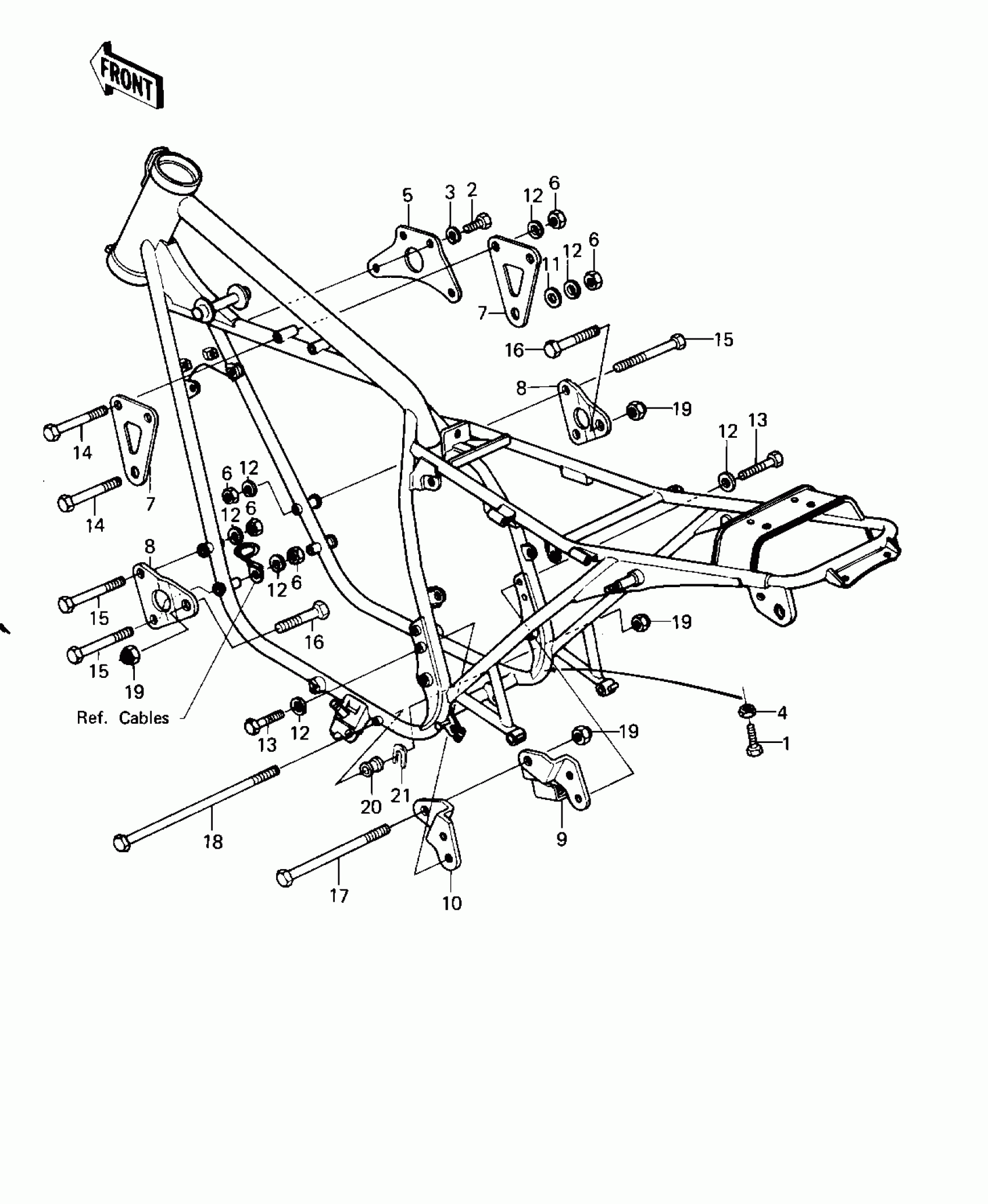

Kawasaki LTD Belt FRAME FITTINGS ('80 D1) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

BOLT-UPSET 6X14

112B0614

Unavailable

3

WASHER SPRING 6MM

461F0600

$0.69

4

NUT 6MM

311B0600

$0.93

5

BRACKET,IGNITON COIL

32058-049

$11.85

6

NUT,8MM

311B0800

$0.67

7

BRACKET,ENGINE,HEAD

32029-1097

$17.40

8

BRACKET,ENGINE,FRONT

32029-1098

$12.27

9

BRACKET,ENG,REAR,R.H.

32029-1099

$16.34

10

BRACKET,ENG REAR,L.H.

32029-1100

$12.42

11

WASHER PLAIN 8MM

411B0800

$0.93

12

WASHER SPRING 8MM

461F0800

$0.40

13

BOLT,FLANGED,8X35

92001-1577

Unavailable

14

BOLT,FLANGED,8X60

92001-1581

$5.14

15

BOLT,HEX HEAD,8X65

92001-1236

$2.13

16

BOLT,HEX HEAD,10X50

92001-1254

$4.38

17

BOLT,HEX HEAD,10X200

92001-1260

$10.77

18

BOLT,10X300,REAR LOWR

92001-1272

Unavailable

19

NUT,LOCK,10MM

92019-021

$6.11

20

COLLAR,ENG MOUNTING

92027-160

Unavailable

20

COLLAR

92027-250

Unavailable

21

SHIM-ENG FIT FR,0.5MM

92025-053

Unavailable
