Description

Price

1

HEAD-COMP-CYLINDER,SI

11008-1034

Unavailable

2

GUIDE,INLET VALVE

12013-003

Unavailable

3

GUIDE,EXHAUST VALVE

49002-1010

Unavailable

4

GASKET,CYLINDER HEAD

11004-1020

Unavailable

5

GASKET,10X14.5X1.5

11009-1105

$6.51

6

CAP,CYLINDER HEAD OIL

11012-1027

Unavailable

7

CAP,BRG,HEAD,L.H&R.H

14022-1002

Unavailable

8

CAP,BRG.HEAD,CENTER

14022-1003

Unavailable

9

SCREW PAN HEAD 6X10

220B0610

$3.14

10

PIPE,OIL

32032-1084

Unavailable

11

BOLT,BANJO,10X25

92001-1017

Unavailable

12

BOLT,FLANGED,6X38

92001-1105

$4.69

13

STUD,6X46

92004-049

$10.26

14

NUT,FLANGED CAP,10MM

92015-076

$13.08

15

WASHER,10.5X22X1.6

92022-1005

$5.01

16

PIN,DOWEL,6.3X8X14

92042-007

$5.70

17

PIN,DOWEL,10X14

92043-1037

$0.74

18

HOLDER,CARBURETOR

16065-1027

$59.44

19

SCREW PAN HEAD 6X18

220B0618

$3.67

20

CLAMP,53M/M

92037-201

Unavailable

21

SCREW-PAN-CROS,5X25

220B0525

$3.67

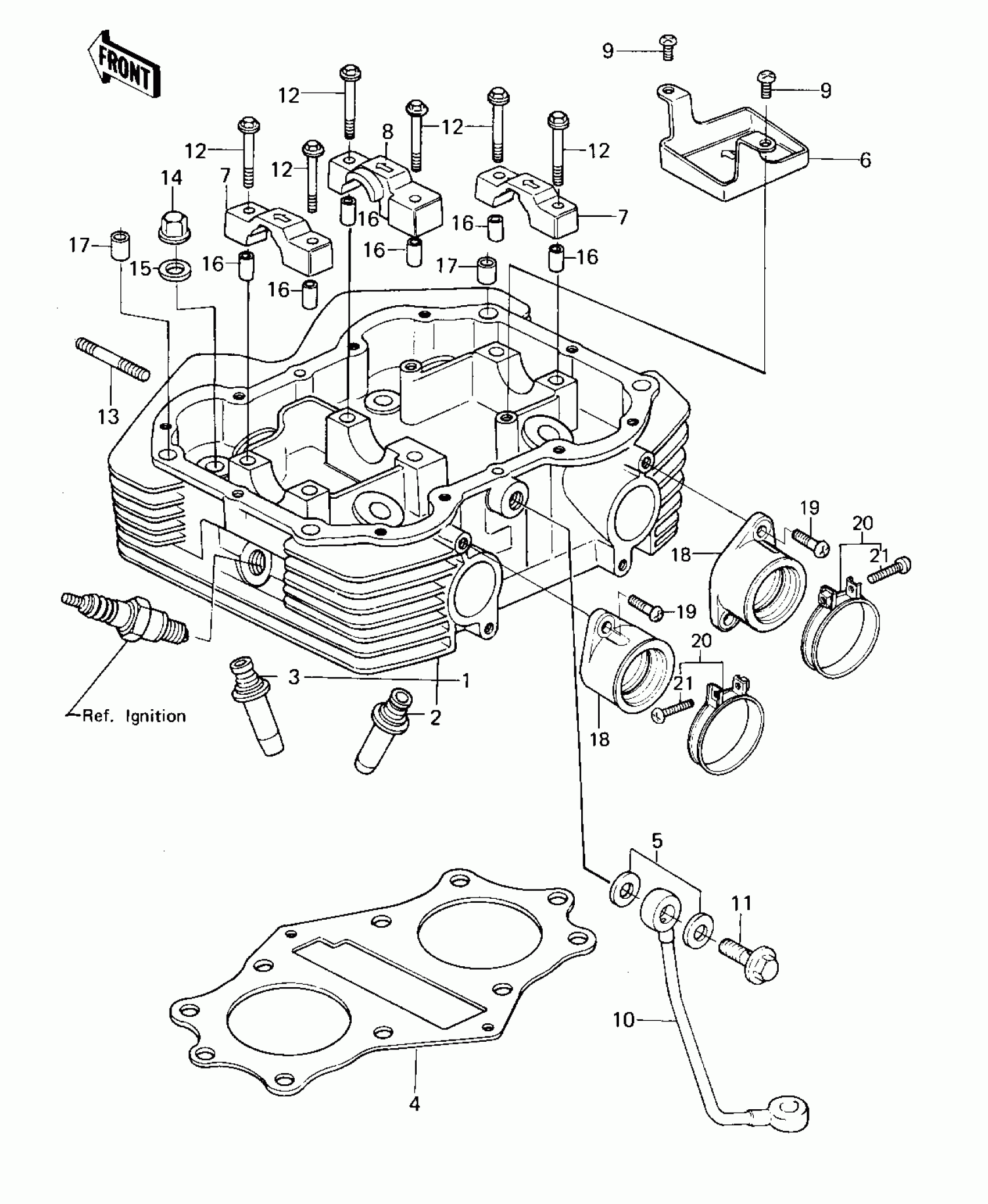

Kawasaki LTD Belt CYLINDER HEAD ('80 D1) Diagram

HEAD-COMP-CYLINDER,SI

GUIDE,INLET VALVE

GUIDE,EXHAUST VALVE

GASKET,CYLINDER HEAD

GASKET,10X14.5X1.5

CAP,CYLINDER HEAD OIL

CAP,BRG,HEAD,L.H&R.H

CAP,BRG.HEAD,CENTER

SCREW PAN HEAD 6X10

PIPE,OIL

BOLT,BANJO,10X25

BOLT,FLANGED,6X38

STUD,6X46

NUT,FLANGED CAP,10MM

WASHER,10.5X22X1.6

PIN,DOWEL,6.3X8X14

PIN,DOWEL,10X14

HOLDER,CARBURETOR

SCREW PAN HEAD 6X18

CLAMP,53M/M

SCREW-PAN-CROS,5X25
