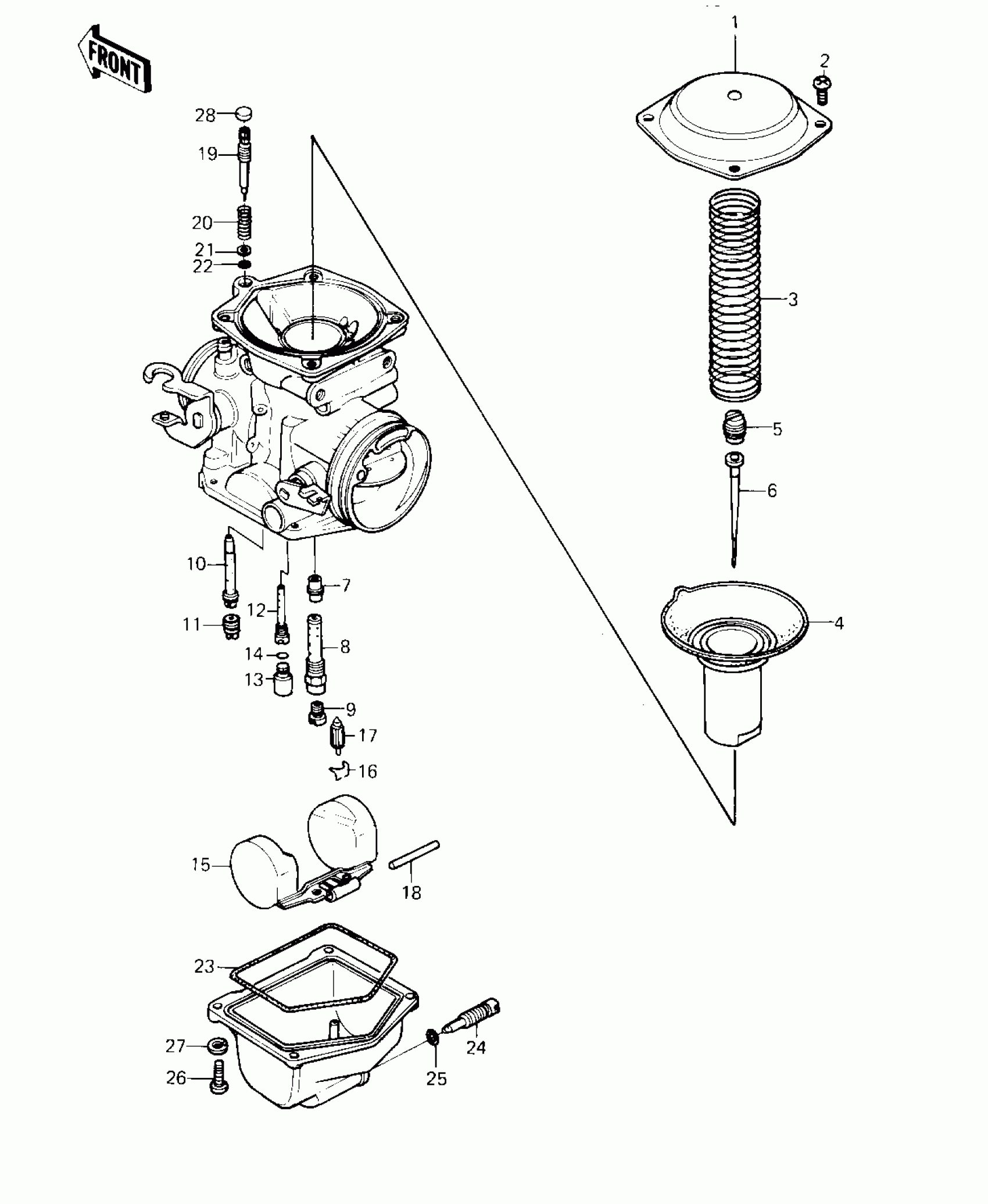

Kawasaki LTD Belt CARBURETOR PARTS ('80 D1) Diagram

#

Description
Price

1

TOP,MIXING CHAMBER

16005-1012

Unavailable

2

SCREW PAN HEAD 4X8

220B0408

$0.67

3

SPRING

92081-1257

$26.15

4

VALVE,VACUUM

16126-1044

$430.64

5

SCREW,NEEDLE SET

16007-1022

Unavailable

6

JET NEEDLE,#N02A

16009-1064

Unavailable

7

JET-NEEDLE

16017-1059

$49.12

8

HOLDER,NEEDLE JET,N413-02E00

13091-1050

Unavailable

9

JET-MAIN,#88

92063-1024

$15.76

9

JET-MAIN,#85

92063-1023

$15.76

9

MAIN JET,2ND,#80

92063-1037

Unavailable

9

JET-MAIN,2ND,#82

92063-1044

Unavailable

9

JET-MAIN,#90

92063-1003

Unavailable

9

JET-MAIN,#92

92063-1004

Unavailable

10

NOZZLE,MAIN

92062-1001

Unavailable

11

JET-MAIN,PRI,#62

92063-1070

Unavailable

11

MAINJET,PRIMARY,#70

92063-1002

$19.88

12

JET-PILOT,#35

92064-1001

$23.08

13

CAP,POLYESTER

11012-1128

Unavailable

14

"O" RING

92055-1088

$21.40

15

FLOAT

16031-1001

Unavailable

16

CLAMP,FLOAT VALVE

16044-007

$7.91

17

VALVE-FLOAT

16030-1007

$47.99

18

PIN,FLOAT

92043-1002

Unavailable

19

SCREW,PILOT ADJUST

16014-1011

Unavailable

20

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

21

WASHER,PLAIN

92022-1003

$4.31

22

RING-O,PILOT ADJUST

92055-1002

$4.31

23

O RING,FLOAT CHAMBER

16019-024

Unavailable

24

SCREW,DRAIN,M6X1.0

92009-1095

$14.92

25

RING-O

92055-1053

$4.69

26

SCREW-PAN-CRSOSS,4X1

220B0412

$0.21

27

WASHER SPRING 4MM

461F0400

Unavailable

27

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05
