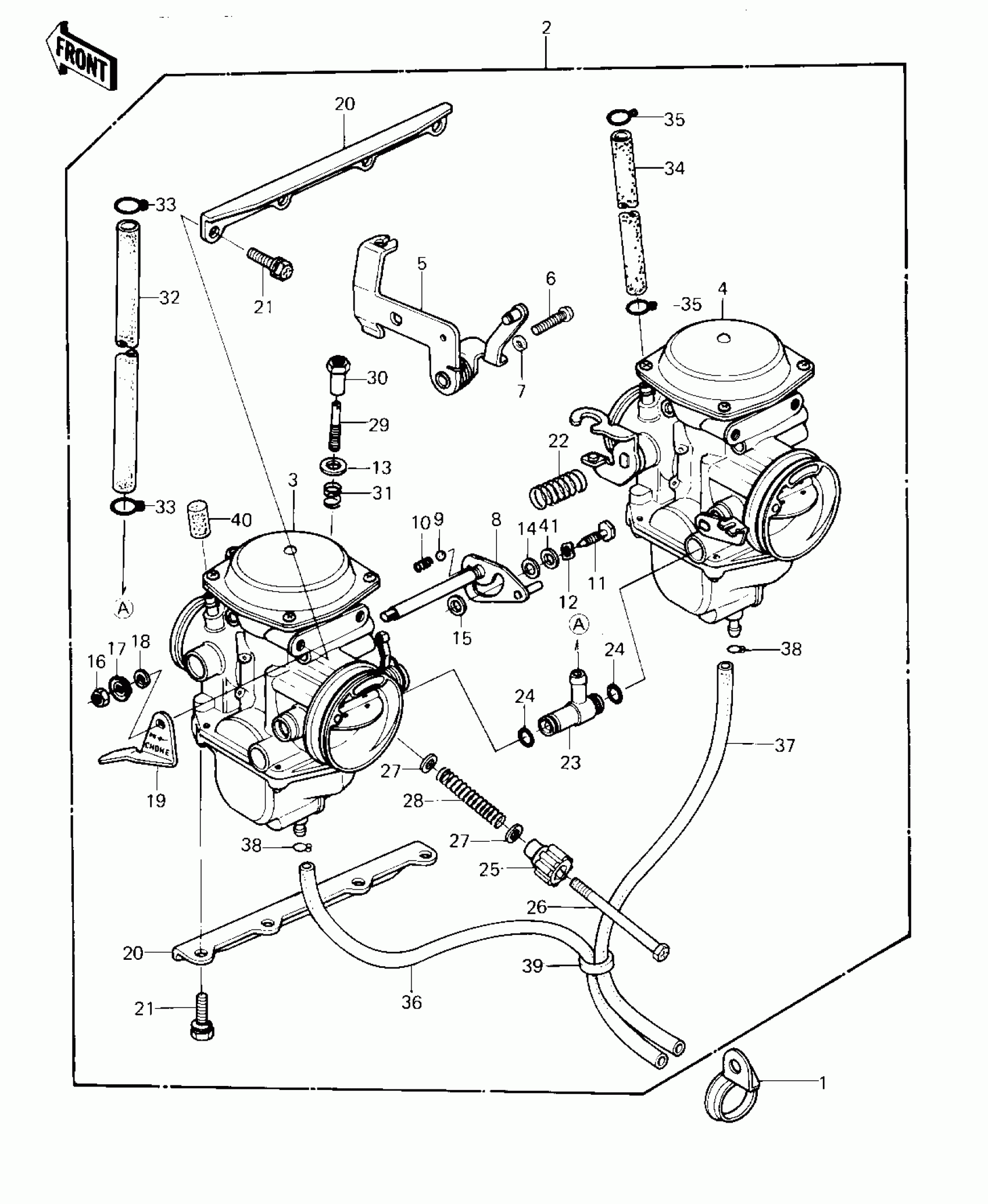

Kawasaki LTD Belt CARBURETOR ASSY ('80 D1) Diagram
#
1
CLAMP,TUBE
92037-1153
Unavailable
2
CARBURETOR
16001-1391
$578.80
2
CARBURETOR ASSY
16001-1275
Unavailable
3
CARBURETOR,L.H.
16001-1290
Unavailable
3
CARBURETOR,L.H. (Canada)
16001-1276
Unavailable
4
CARBURETOR,R.H.
16001-1291
$286.08
4
CARBURETOR,R.H. (Canada)
16001-1277
Unavailable
5
BRACKET,THROTTLE CABL
11034-1805
Unavailable
6
SCREW-PAN-CROS
220B0520
$0.68
7
WASHER SPRING 5MM
461F0500
$0.69
8
SHAFT,LINK
16041-1020
$49.97
9
BALL,STEEL,3/16"
92140-1004
$1.51
10
SPRING
92081-1249
$7.55
11
SCREW,LINK SHAFT
92009-1096
$8.54
12
SPRING,WAVED WASHER
92081-1262
$3.83
13
WASHER
92022-1204
Unavailable
14
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
$4.60
15
WASHER,6.4X9.4X0.8,PL
92022-1200
Unavailable
16
NUT-HEX
311B0500
$0.47
17
WASHER,LOCK,5M/M
92022-1201
Unavailable
18
WASHER SPRING 5MM
461F0500
$0.69
19
LEVER,CHOKE
13168-1065
Unavailable
20
PLATE,STAY
16065-1012
Unavailable
21
SCREW,6X16
92009-1129
Unavailable
22
SPRING
92081-1258
$6.00
23
FITTING,FUEL TUBE
92005-1026
$47.19
24
RING-O
92055-1004
$4.31
25
HOLDER,ADJUST
13091-1078
Unavailable
26
BOLT,HEX HEAD,5X70
92001-1328
$10.10
27
WASHER
92022-1203
$5.45
28
SPRING
92081-1251
$4.71
29
SCREW-THROTTLE STOP
16021-1027
Unavailable
30
NUT,5MM
92015-1118
Unavailable
31
SPRING
92081-1252
Unavailable
32
TUBE,FUEL,7.3X12.5X200
92059-1029
$30.56
33
CLAMP,FUEL TUBE
92037-1075
$3.96
34
TUBE,5.3X10.5X200
92059-1001
Unavailable
35
CLAMP,TUBE
92037-1682
$6.15
36
TUBE,3.5X6.5X330
92059-111
$22.10
37
TUBE,3.5X6.5X330
92059-111
$22.10
38
CLAMP,TUBE
92037-1142
$4.31
39
TUBE,CLAMP
92059-1141
$11.06
40
CAP,RUBBER
11012-1129
Unavailable
41
WASHER,6.5X11X1.2,STL
92022-1207
$4.37
