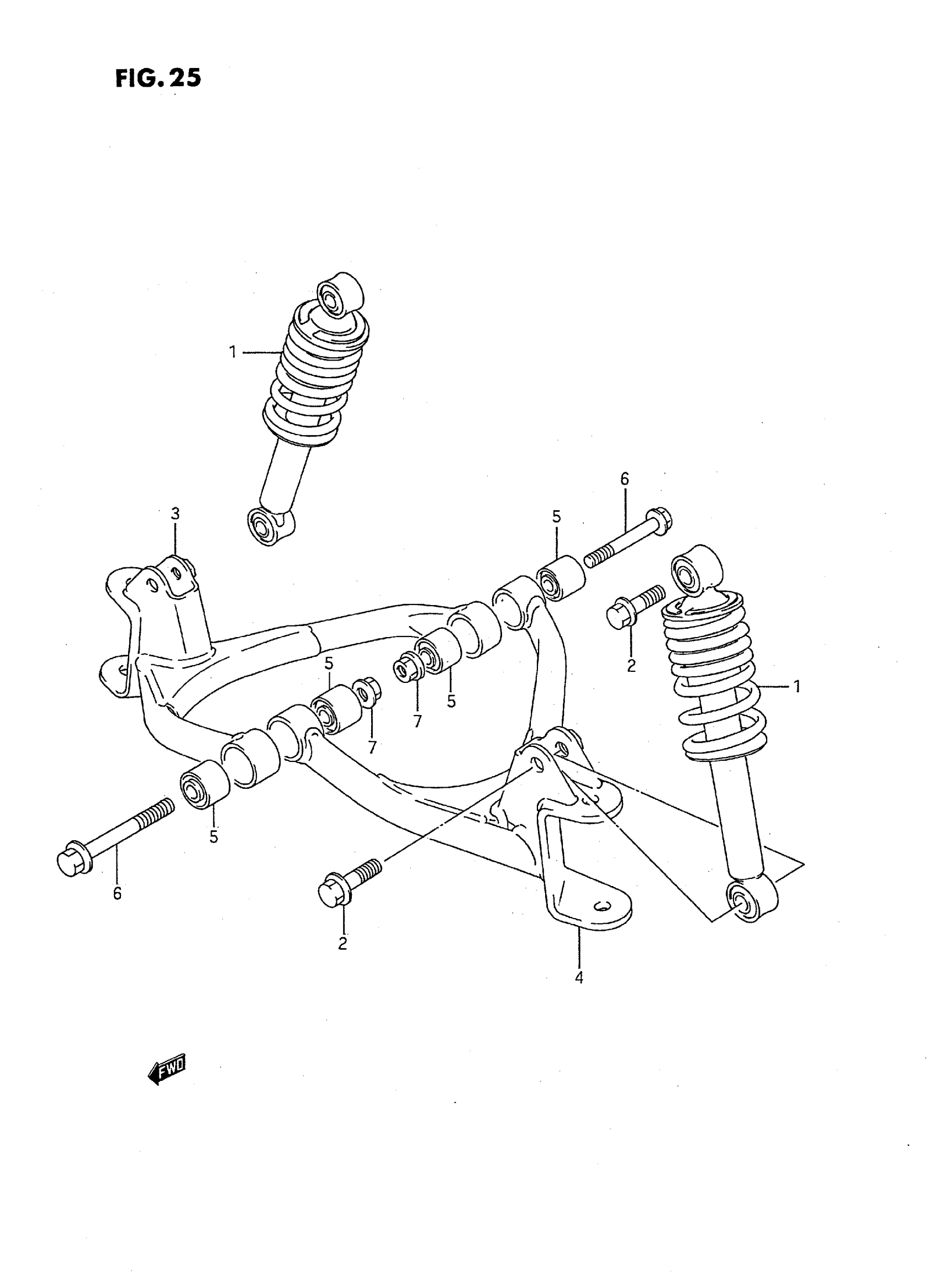

Suzuki LT80S (1995) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT (YELLOW) | MODEL H/J

52100-40B00-163

Unavailable

1

ABSORBER ASSY, FRONT (WHITE) | MODEL K/L/M/N

52100-40B10-14L

Unavailable

1

ABSORBER ASSY, FRONT (YELLOW) | MODEL P/R/S

52100-40B10-163

Unavailable

2

BOLT, ABSORBER

09103-10019

$2.63

3

ARM, SUSPENSION RH (BLUE) | MODEL H/J/K/L/M/N/P

52410-40B00-19F

Unavailable

3

ARM, SUSPENSION RH (BLACK) | MODEL R/S

52410-40B00-019

$175.18

4

ARM, SUSPENSION LH (BLUE) | MODEL H/J/K/L/M/N/P

52420-40B00-19F

Unavailable

4

ARM, SUSPENSION LH (BLACK) | MODEL R/S

52420-40B00-019

$175.18

5

BUSH, SUSPENSION ARM

09319-10049

$17.14

6

BOLT, SUSPENSION ARM

09103-10173

$7.05

7

NUT | MODEL H/J/K/L/M/N/P/R This part replaces 08316-26107.

08316-2010B

$3.43

7

NUT | MODEL S This part replaces 08316-20103.

08316-2010B

$3.43
