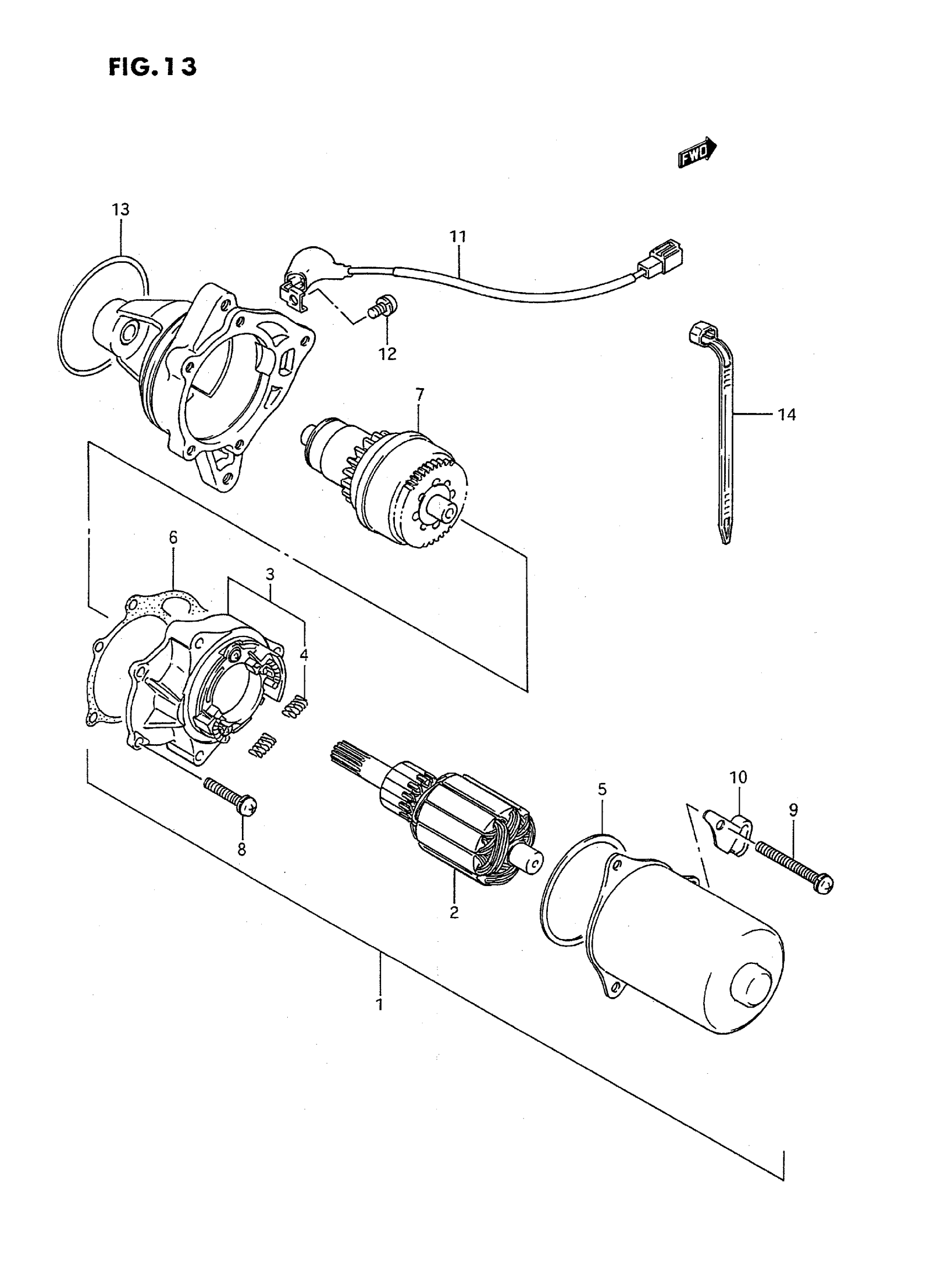

Suzuki LT80S (1995) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | MODEL H/J/K/L/M This part replaces 31100-40B00.

31100-40B01

$393.97

1

MOTOR ASSY, STARTING | MODEL N/P/R/S; Includes Item(s) 2 - 13

31100-40B01

$393.97

2

ARMATURE | MODEL H/J/K/L/M This part replaces 31311-40B00.

31311-40B01

Unavailable

2

ARMATURE | MODEL N/P/R/S

31311-40B01

Unavailable

3

HOLDER SET, BRUSH | MODEL H/J/K/L/M This part replaces 31130-40B00.

31130-40B01

$99.63

3

HOLDER SET, BRUSH | MODEL N/P/R/S

31130-40B01

$99.63

4

SPRING

31135-03A00

$4.52

5

.GASKET

31157-03A00

$9.33

6

GASKET | MODEL H/J/K/L/M This part replaces 31158-40B00.

31158-40B01

$10.65

6

GASKET | MODEL N/P/R/S

31158-40B01

$10.65

7

GEAR ASSY, PINION

31370-40B00

$185.15

8

SCREW This part replaces 31151-03A10.

02112-0412A

$1.49

9

SCREW This part replaces 31151-02100.

02112-3430B

$3.15

10

CLAMP, LEAD WIRE

31154-11B00

Unavailable

11

LEAD WIRE

31142-40B00

$28.72

12

SCREW | MODEL H/J/K/L/M This part replaces 31152-03A00.

02112-3406A

$1.99

12

SCREW | MODEL N/P/R/S This part replaces 02112-34063.

02112-3406A

$1.99

13

O RING

31156-02100

$4.57

14

CLAMP, LEAD WIRE

09407-14403

$2.26
