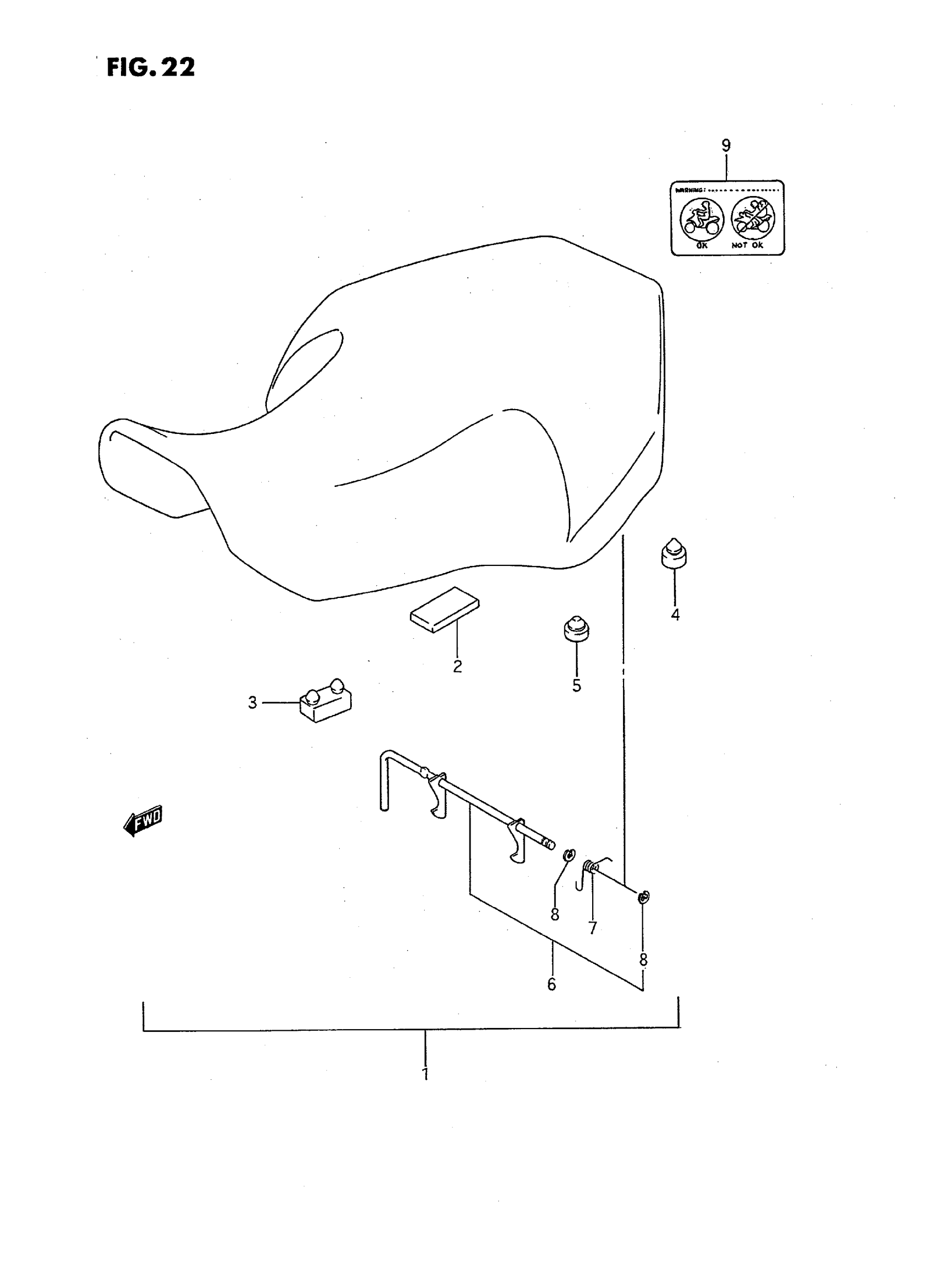

Suzuki LT80S (1995) SEAT Diagram

#

Description
Price

1

SEAT SET (BLUE) | MODEL H

45100-40B00-4UZ

Unavailable

1

SEAT SET (BLUE) | MODEL J/K/L/M/N

45100-40B10-4UZ

Unavailable

1

SEAT SET (YELLOW) | MODEL P/R

45100-40B10-4YE

Unavailable

1

SEAT SET (YELLOW) | MODEL S; Includes Item(s) 2 - 8

45100-40B10-6LF

Unavailable

2

CUSHION, BATTERY

94982-29400

$2.28

3

CUSHION

09321-08006

$2.90

4

CUSHION

09321-10011

$2.91

5

CUSHION

09321-10012

$2.92

6

CLAMP, SEAT

45210-40B00

$23.73

7

SPRING

45135-24500

$4.52

8

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

9

LABEL,WARNING This part replaces 68367-04610.

68367-04611

Unavailable
