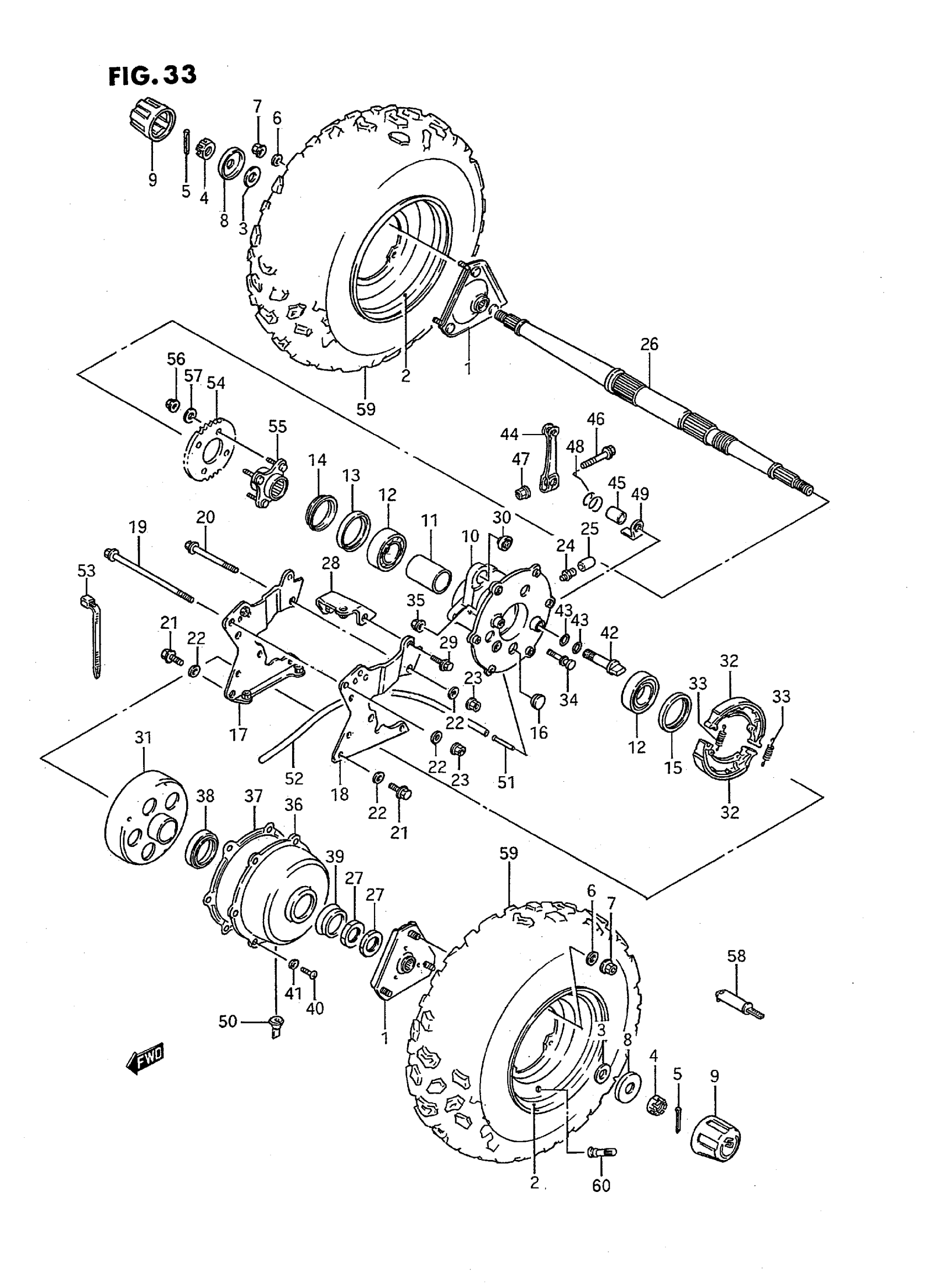

Suzuki LT80S (1995) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR (YELLOW) | MODEL H/J

64110-40B00

Unavailable

1

HUB, REAR (YELLOW) | MODEL K/L/M/N/P/R This part replaces 64110-40B10.

64110-40B00

Unavailable

1

HUB, REAR | MODEL S

64110-40B50

$132.73

2

RIM, REAR WHEEL (SILVER) | MODEL H/J

55310-40B00-13L

$312.13

2

RIM, REAR WHEEL (WHITE) | MODEL K/L/M/N/P/R/S

55310-40B00-14L

Unavailable

3

WASHER | MODEL H/J/K/L/M/N/P/R

09160-16025

Unavailable

3

WASHER | MODEL S

09164-16002

$3.16

4

NUT

09141-16004

$7.05

5

PIN, COTTER | ->04111-40408 This part replaces 04111-40356.

04111-4040A

$1.49

5

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

6

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-11107.

08322-01107

$2.15

6

WASHER, KNUCKLE END | MODEL R/S This part replaces 08322-01103.

08322-0110A

$1.84

7

NUT, WHEEL SET | MODEL H/J/K/L/M/N/P This part replaces 08316-16108.

08316-10107

$2.39

7

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

8

HOLDER, CAP

64726-40B00

$4.02

9

CAP

54725-18A00

$10.28

10

HOUSING, AXLE BEARING

64721-40B00

Unavailable

11

SPACER, BEARING

64731-40B00

$16.87

12

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

13

SEAL, INNER

09283-42016

$23.05

14

SEAL, OUTER

09286-42001

$14.18

15

SEAL, LH

09283-42015

$14.81

16

CAP

09250-20003

$2.02

17

PLATE, HOUSING RH

64770-40B00

Unavailable

18

PLATE, HOUSING LH

64780-40B00

Unavailable

19

BOLT (8X175) | MODEL H/J/K/L/M/N/P/R This part replaces 09103-08223.

09103-08504

$11.52

19

BOLT (8X175) | MODEL S

09103-08504

$11.52

20

BOLT (8X95)

09103-08105

$3.87

21

BOLT, REAR LH | MODEL H/J/K/L/M/N/P This part replaces 01517-08207.

01550-08207

$2.69

21

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

22

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-11088.

08322-01087

$2.13

22

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

23

NUT

08319-31087

$2.32

24

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

25

CAP

61442-33310

$3.37

26

AXLE, REAR

64711-40B00

$559.05

27

NUT

09140-28003

$6.15

28

PLATE, MUFFLER SUPPORT

64790-40B00

Unavailable

29

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-08205.

01550-0820A

$2.23

29

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

30

BUSHING, ABSORBER

09319-10041

$16.00

31

DRUM, REAR BRAKE

64120-40B00

$372.76

32

SHOE SET, BRAKE This part replaces 64410-40B00.

64400-40810

$29.77

33

SPRING, BRAKE SHOE

64430-14600

$4.53

34

PIN, ANCHOR

64231-40B00

$8.87

35

NUT (CHROME) | MODEL H/J/K/L/M/N/P This part replaces 08316-16086.

08316-10087

$2.26

35

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.66

36

COVER, BRAKE DRUM

64130-40B00

Unavailable

37

PACKING

64125-40B00

$14.32

38

SEAL, DRUM INNER

09282-42001

$18.14

39

SEAL, DRUM OUTER

64729-40B00

$9.26

40

SCREW | MODEL H/J/K/L/M/N/P This part replaces 02112-06106.

02112-0610B

$1.84

40

SCREW | MODEL R/S This part replaces 02142-06083.

02142-0608A

$1.49

41

.WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-21066.

08322-0106B

$2.26

42

CAM, REAR BRAKE

64441-40B00

$21.77

43

O RING

09280-14004

$1.65

44

LEVER, BRAKE CAM

64451-40B00

Unavailable

45

SPACER, CAM LEVER

64454-40B00

$4.90

46

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06306.

01550-0630A

$2.32

46

BOLT | MODEL R/S This part replaces 01550-06303.

01550-0630A

$2.32

47

NUT | MODEL H/J/K/L/M/N/P This part replaces 08316-16066.

08316-1006B

$2.50

47

NUT | MODEL R/S This part replaces 08316-10063.

08316-1006B

$2.50

48

SPRING, CAM LEVER RETURN

64444-40B00

$4.82

49

PLATE, INDICATOR

64492-40B00

Unavailable

50

PLUG

09250-11002

$2.12

51

JOINT

09364-06004

Unavailable

52

HOSE | L:1000->840 This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

53

CLAMP (L:125)

09407-14403

$2.26

54

SPROCKET, REAR (NT:26) | MODEL H/J

64511-40B00

Unavailable

54

SPROCKET, REAR (NT:22) | MODEL K/L/M/N/P/R/S

64511-40B10

$37.92

55

FLANGE, MOUNTING

64610-40B00

Unavailable

56

NUT | ->08319-31083 This part replaces 08319-31086.

08319-3108A

$2.32

56

NUT This part replaces 08319-31083.

08319-3108A

$2.32

57

WASHER | MODEL K/L/M/N/P This part replaces 08322-11086.

08322-0108A

$1.92

57

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

58

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92

59

TIRE,REAR (AT19X7-8,DI-K549) | MODEL H This part replaces 65100-40B00.

65100-40B60

$269.70

59

TIRE,REAR (AT19X7-8,DI-K549) | MODEL J/K This part replaces 65100-40B50.

65100-40B60

$269.70

59

TIRE,REAR (AT19X7-8,DI-K549) | MODEL L/M/N/P/R/S This part replaces 65100-40B51.

65100-40B60

$269.70

60

VALVE ASSY, WHEEL RIM | ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

60

VALVE ASSY, WHEEL

43130-78030

$9.25
