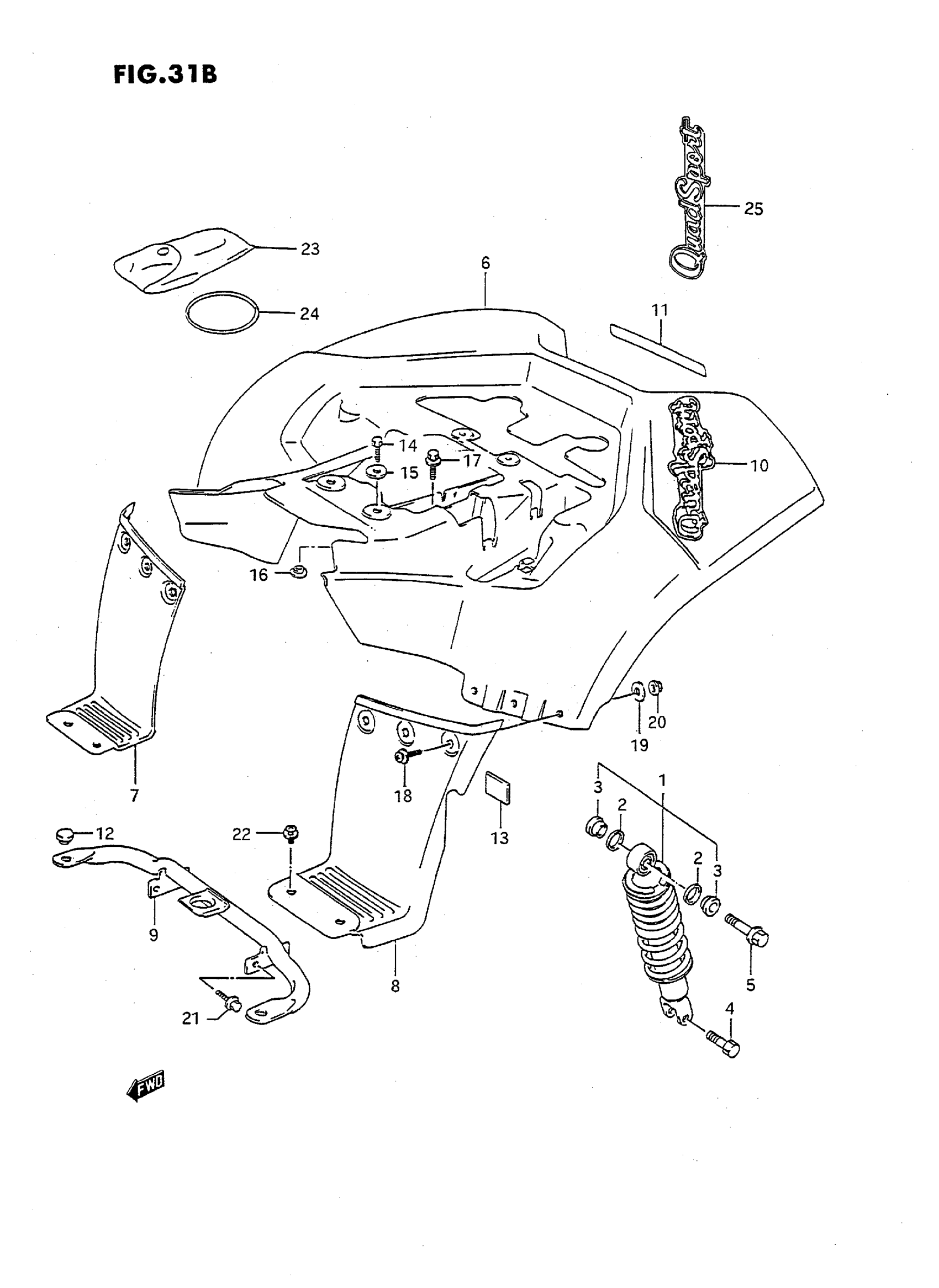

Suzuki LT80S (1995) REAR FENDER (MODEL M/N/P/R/S) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | MODEL M/N

62100-40B10-14L

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL P/R/S; Includes Item(s) 2 - 3

62100-40B10-163

Unavailable

2

SEAL, DUST

62226-27A20

$8.56

3

COLLAR

62684-40B00

$18.02

4

BOLT, LOWER

62313-40B00

$4.52

5

BOLT

09103-10049

$7.63

6

BODY,REAR FENDE This part replaces 63111-40B00-14L.

63111-40B01-14L

Unavailable

7

BODY, REAR FENDER RH (BLACK)

63112-40B01-291

$31.34

8

BODY, REAR FENDER LH (BLACK)

63113-40B01-291

$31.34

9

REINFORCEMENT, REAR FENDER

63130-40B00

Unavailable

10

EMBLEM, REAR FENDER | MODEL M

68171-40B40-0VZ

Unavailable

11

EMBLEM, SUZUKI | MODEL M/N

68174-40B00-9LJ

Unavailable

12

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

13

CUSHION, GUARD

63191-25C00

$3.05

14

BOLT | ->01500-06207 This part replaces 01107-06207.

01500-06207

$2.28

14

BOLT, CENTER BODY

01500-06207

$2.28

15

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

16

WASHER

09169-08036

$2.30

17

BOLT

09116-06010

$2.19

18

SCREW

09136-06081

$2.26

19

WASHER This part replaces 09160-06006.

09160-06084

$1.78

20

NUT | ->08319-31063 This part replaces 08319-31066.

08319-31067

$2.03

20

NUT This part replaces 08319-31063.

08319-3106A

$2.03

21

BOLT | MODEL M/N/P

01517-06166

Unavailable

21

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

22

SCREW

09136-06004

$2.15

23

TOOL ASSY | ->09800-21026 This part replaces 09800-00342.

09800-21080

$36.42

23

TOOL ASSY This part replaces 09800-21026.

09800-21080

$36.42

24

BAND

09280-70004

$3.85

25

EMBLEM, REAR FENDER | MODEL N

68171-40B50-1JK

Unavailable
