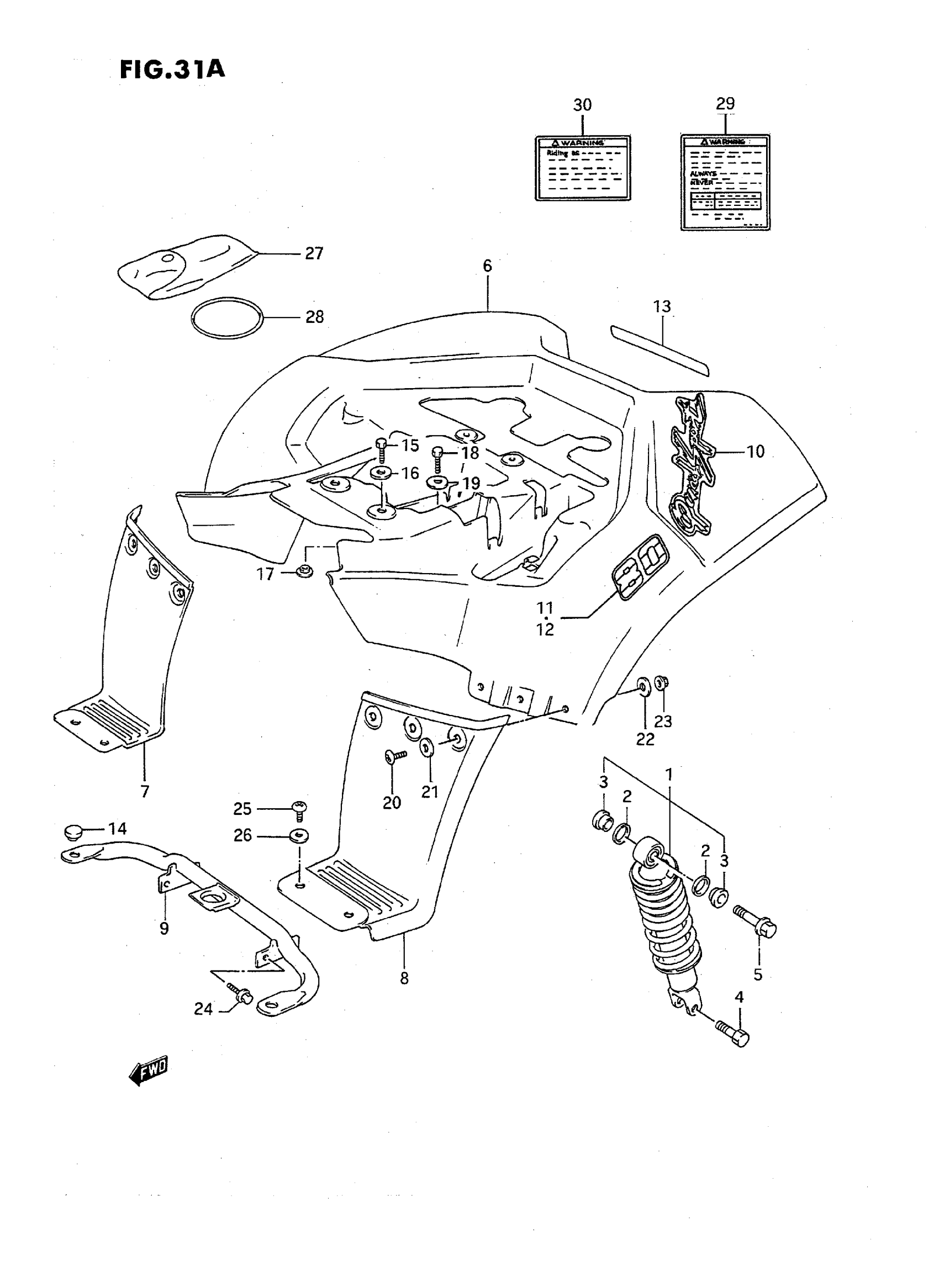

Suzuki LT80S (1995) REAR FENDER (MODEL L) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | Includes Item(s) 2 - 3

62100-40B10-14L

Unavailable

2

SEAL, DUST

62226-27A20

$8.56

3

COLLAR

62684-40B00

$18.02

4

BOLT, LOWER

62313-40B00

$4.52

5

BOLT

09103-10049

$7.63

6

BODY,REAR FENDE This part replaces 63111-40B00-14L.

63111-40B01-14L

Unavailable

7

BODY, REAR FENDER RH (BLACK) This part replaces 63112-40B00-291.

63112-40B01-291

$31.34

8

BODY, REAR FENDER LH (BLACK) This part replaces 63113-40B00-291.

63113-40B01-291

$31.34

9

REINFORCEMENT

63130-40B00

Unavailable

10

EMBLEM, REAR FENDER

68171-40B20-3MD

Unavailable

11

EMBLEM, 80 RH

68172-40B00-3MC

Unavailable

12

EMBLEM, 80 LH

68173-40B00-3MC

Unavailable

13

EMBLEM, SUZUKI

68174-40B00-9LJ

Unavailable

14

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

15

BOLT This part replaces 01107-06207.

01500-06207

$2.28

16

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

17

WASHER

09169-08036

$2.30

18

BOLT This part replaces 01107-06207.

01500-06207

$2.28

19

WASHER This part replaces 09160-06006.

09160-06084

$1.78

20

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

21

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

22

WASHER This part replaces 09160-06006.

09160-06084

$1.78

23

NUT This part replaces 08319-31066.

08319-31067

$2.03

24

BOLT

01517-06166

Unavailable

25

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

26

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

27

TOOL ASSY This part replaces 09800-00342.

09800-21080

$36.42

28

BAND

09280-70004

$3.85

29

LABEL, TIRE AIR PRESSURE

68332-40B20

Unavailable

30

LABEL, WARNING

68367-04620

Unavailable

31

REFER TO FIG.31B (F-5) FOR

SPECIAL NOTE

Unavailable
