Description

Price

1

PUMP ASSY,OIL This part replaces 16100-40B02.

16100-40B03

$110.28

2

GASKET, OIL PUMP

16731-02300

$2.81

3

SCREW | MODEL H/J/K/L/M/N This part replaces 02112-05168.

02112-05167

$1.97

4

LOCK WASHER | MODEL H/J/K/L/M/N This part replaces 08321-21057.

08321-0105A

$1.84

4A

SCREW | MODEL P/R/S This part replaces 02112-35163.

02112-3516A

$2.43

5

HOSE,OIL NO.1 This part replaces 16810-40B00.

16810-40B01

$10.50

6

CLIP | MODEL H/J/K/L/M/N This part replaces 09401-08407.

09401-08411

$1.78

6

CLIP | MODEL P/R/S

09401-08411

$1.78

7

HOSE(2X5X600) | L:600->162 This part replaces 09352-20503-600.

09352-20504-600

$6.70

8

CLIP

09401-04401

$2.06

9

CLAMP, OIL HOSE

09403-13306

$6.80

10

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.83

11

GEAR, OIL PUMP DRIVE

16320-03A02

$70.13

12

PIECE, OIL PUMP DRIVE

16391-03A02

$13.68

13

BEARING

09262-08008

$14.17

14

GEAR, OIL PUMP DRIVEN

16331-11B00

$39.33

15

WASHER

08211-08121

$1.99

16

THRUST WASHER

08211-15201

$2.38

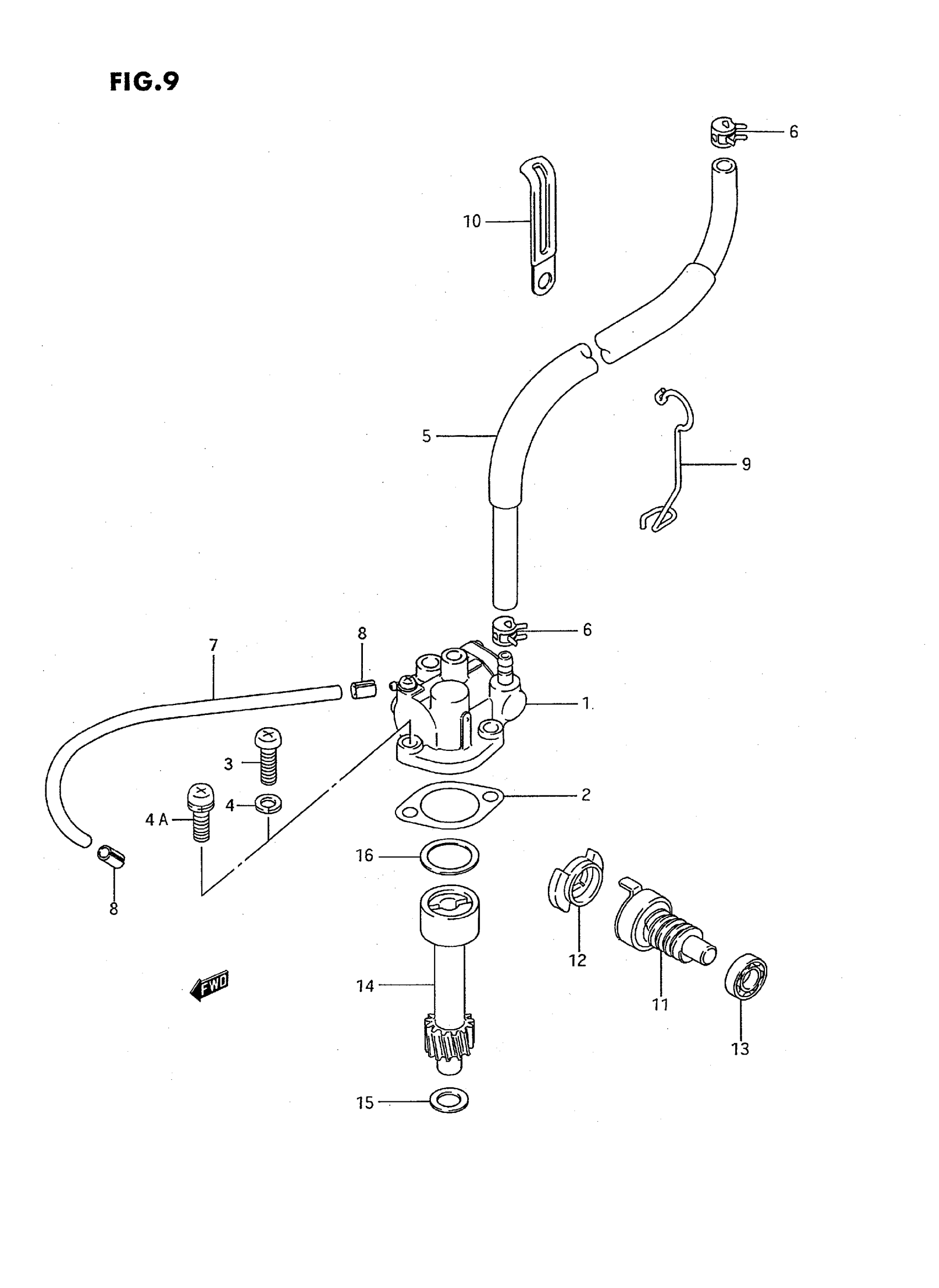

Suzuki LT80S (1995) OIL PUMP Diagram
