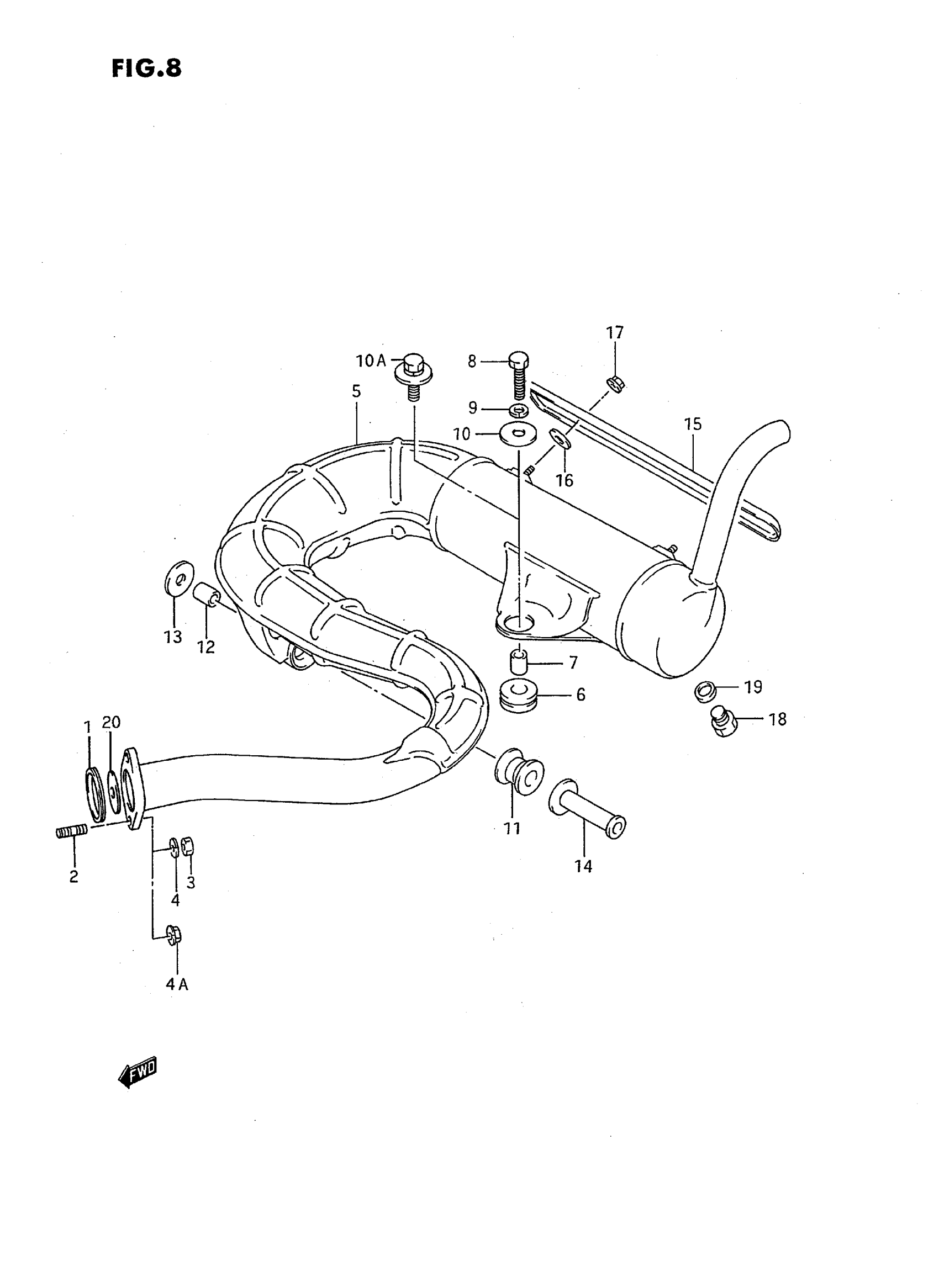

Suzuki LT80S (1995) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE | MODEL H/J/K/L/M/N This part replaces 14181-10D00.

14181-23E00

$10.11

1

GASKET, EXHAUST PIPE | MODEL P/R This part replaces 14181-45D00.

14181-23E00

$10.11

1

GASKET, EXHAUST PIPE | MODEL S

14181-23E00

$10.11

2

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

3

NUT | MODEL H/J/K/L/M/N This part replaces 08310-12066.

08310-0006A

$1.84

4

LOCK WASHER | MODEL H/J/K/L/M/N This part replaces 08321-21066.

08321-0106A

$1.84

4A

NUT | MODEL P/R/S This part replaces 08361-35066.

08361-3506A

$1.80

5

BODY, MUFFLER | MODEL H/J/K/L,<-14310-40B02

14310-40B10

$309.93

5

BODY, MUFFLER | MODEL M/N/P/R/S

14310-40B20

Unavailable

6

CUSHION This part replaces 09320-14008.

09320-13007

$3.49

7

SPACER (8.5X14X14) This part replaces 09180-08131.

09180-08202

$4.52

8

BOLT | MODEL H/J/K/L/M/N This part replaces 01107-08355.

01500-0835B

$3.04

9

LOCK WASHER | MODEL H/J/K/L/M/N This part replaces 08321-21084.

08321-0108A

$1.84

10

WASHER, EXHAUST SUPPORT | MODEL H/J/K/L/M/N This part replaces 09160-08057.

09160-08135

$2.35

10A

BOLT (8X35) | MODEL P/R/S

09118-08080

$3.03

11

CUSHION | MODEL H/J/K/L/M/N

09320-12043

$7.98

11

CUSHION | MODEL P/R/S

09320-12033

$31.71

12

SPACER This part replaces 09180-08102.

09180-08194

$3.05

13

WASHER (8.5X28X3.2) This part replaces 09160-08069.

09160-08137

$3.03

14

SPACER, MUFFLER SUPPORT

14770-40B00

$18.43

15

COVER, MUFFLER

14780-40B01

Unavailable

16

GASKET (6X16X1.4) This part replaces 09168-06022.

09168-06122

$2.73

17

NUT This part replaces 08319-31065.

08319-3106A

$2.03

18

PLUG, MUFFLER DRAIN

09247-12104

$2.73

19

GASKET

09168-12002

$1.59

20

PLATE, EXHAUST PIPE | MODEL K/L/M/N/P/R/S

14159-40B00

$4.72
