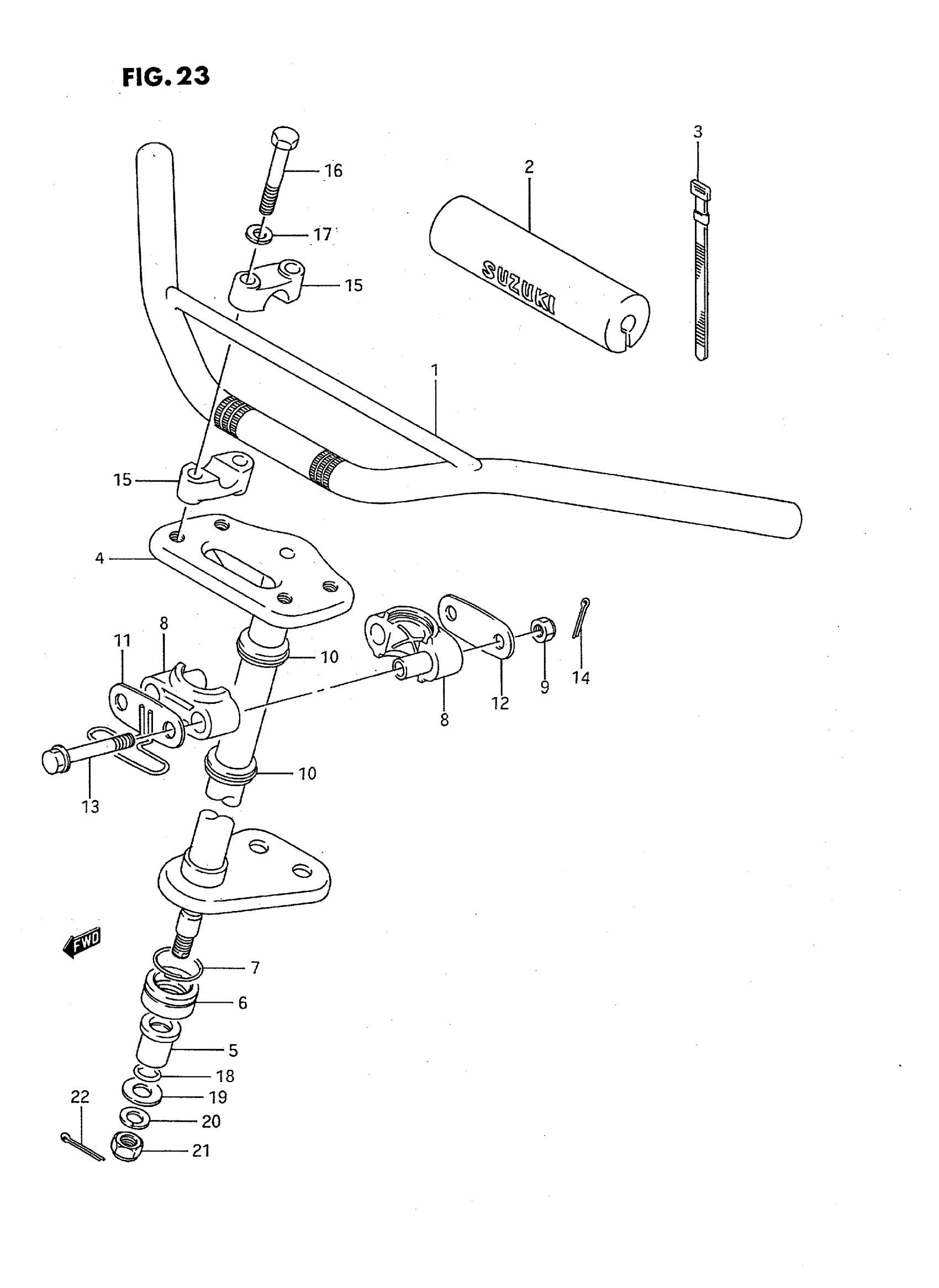

Suzuki LT80S (1995) HANDLEBAR - STEERING Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-40B00-291

$99.63

2

PAD, CROSS | MODEL H/J/P/R/S

56172-24500

$16.35

2

PAD CROSS (BLUE) | MODEL K/L/M/N This part replaces 56172-25C00-4UZ.

56172-43B00-4UZ

Unavailable

3

BAND | MODEL H/J

09407-18401

$2.07

3

BAND | MODEL K/L/M/N/P/R/S

09407-14407

$3.57

4

SHAFT, STEERING (BLACK)

51650-40B00-019

Unavailable

5

BUSH,STEERING SHAFT,LOWER

51661-40B00

$15.10

6

DUST SEAL, STEERING SHAFT

51662-18900

$7.36

7

CLIP, DUST SEAL

09380-31002

$2.43

8

HOLDER,STEERING SHAFT

51670-18902

$18.02

9

NUT (CHROME) | MODEL H/J/K/L/M/N/P/R This part replaces 08316-16086.

08316-10087

$2.26

9

NUT | MODEL S This part replaces 08316-10083.

08316-1008B

$2.66

10

DUST SEAL, STEERING

51678-18900

$8.12

11

REINF, STEERING HOLDER

51680-40B00

$7.75

12

REINF, STEERING HOLDER

51681-18900

Unavailable

13

BOLT

09103-08085

$6.91

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

16

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01204-08555.

01204-08557

$2.85

16

BOLT | MODEL R/S

01254-08557

Unavailable

17

LOCK WASHER | MODEL H/J/K/L/M/N/P/R This part replaces 08321-21084.

08321-0108A

$1.84

17

LOCK WASHER | MODEL S

09162-10008

$3.04

18

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

19

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

20

LOCK WASHER | MODEL H/J/K/L/M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

20

LOCK WASHER | MODEL R/S This part replaces 08321-01103.

08321-0110A

$1.84

21

NUT This part replaces 09159-10036.

09159-10027

$3.10

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
