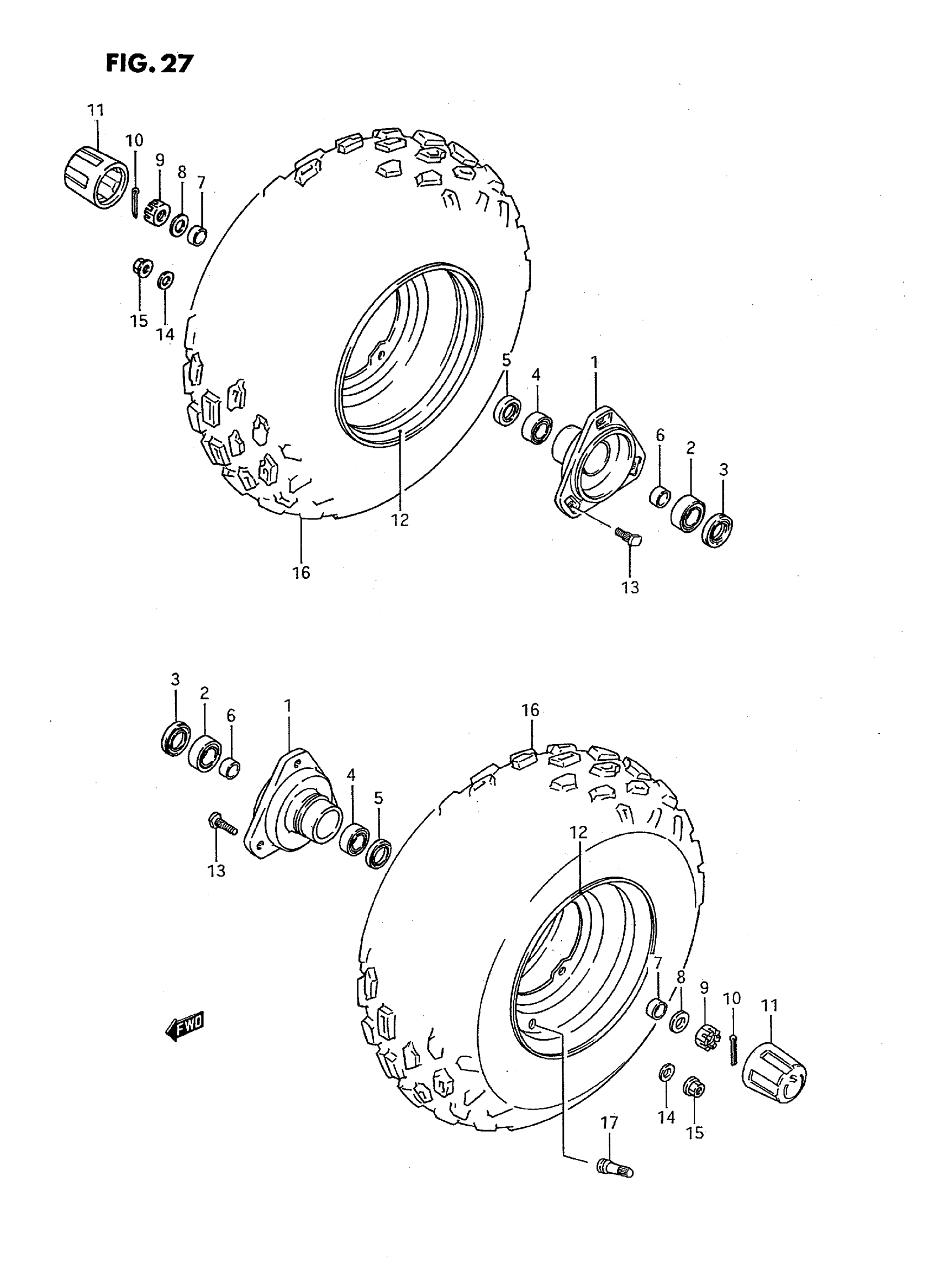

Suzuki LT80S (1995) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

54110-40B00

$127.20

2

BEARING, INNER

09262-17031

$33.65

3

DUST SEAL, FRONT HUB INNER This part replaces 09283-22012.

09283-22028

$8.52

4

BEARING, OUTER

09262-15024

$24.83

5

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$6.02

6

SPACER, FRONT HUB

54731-40B00

$4.82

7

SPACER,FRONT AXLE

54741-40B00

$4.82

8

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-11146.

08322-0114A

$1.84

8

WASHER | MODEL R/S This part replaces 08322-01143.

08322-0114A

$1.84

9

NUT, HUB | MODEL H/J/K/L/M/N/P This part replaces 08314-41146.

08314-4014B

$4.24

9

NUT, HUB | MODEL R/S This part replaces 08314-40143.

08314-4014B

$4.24

10

PIN | ->04111-30308 This part replaces 04111-30256.

04111-3030A

$1.49

10

PIN This part replaces 04111-30308.

04111-3030A

$1.49

11

CAP, WHEEL, CENTER

54725-18A00

$10.28

12

RIM, FRONT WHEEL (SILVER) | MODEL H/J

55310-40B00-13L

$312.13

12

RIM, FRONT WHEEL (WHITE) | MODEL K/L/M/N/P/R/S

55310-40B00-14L

Unavailable

13

BOLT This part replaces 09119-10051.

09119-10051-XC0

$2.92

14

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-11107.

08322-01107

$2.15

14

WASHER, KNUCKLE END | MODEL R/S This part replaces 08322-01103.

08322-0110A

$1.84

15

NUT, WHEEL SET | MODEL H/J/K/L/M/N/P This part replaces 08316-16108.

08316-10107

$2.39

15

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

16

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 55100-40B00.

55100-40B60

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 55100-40B50.

55100-40B60

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL L/M/N/P/R/S This part replaces 55100-40B51.

55100-40B60

Unavailable

17

VALVE ASSY, WHEEL RIM | ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

17

VALVE ASSY, WHEEL

43130-78030

$9.25
