1995 Suzuki LT80S Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1995 Suzuki LT80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

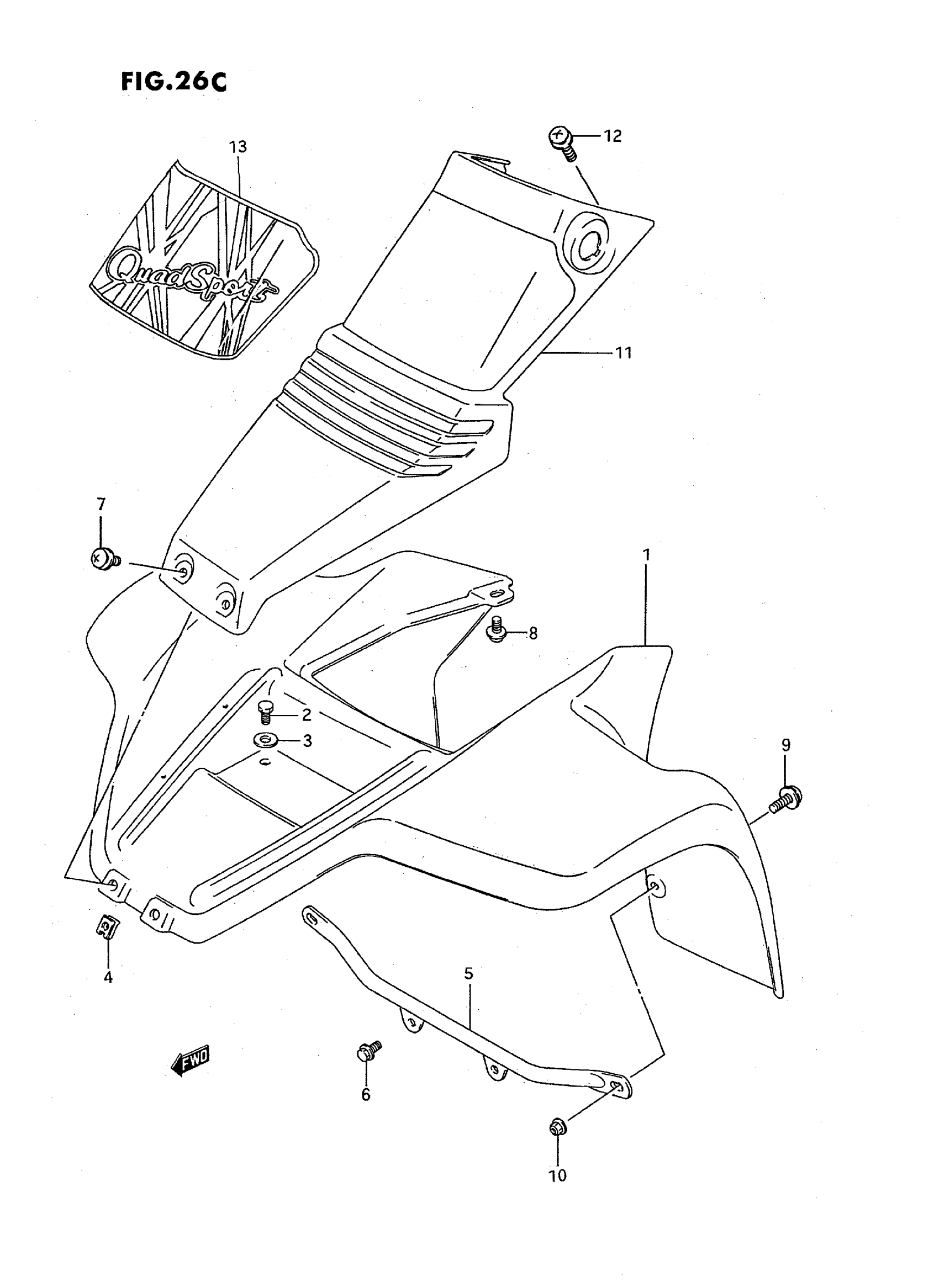

1995 Suzuki LT80S Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER FRONT This part replaces 53111-40B00-14L.

53111-40B01-14L

1
Out of stock

2

2

$2.68

In stock

3

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

2
Out of stock

4

NUT, FENDER FRONT

53141-19A00

2
Out of stock

5

BRACE, FRONT FENDER (BLACK)

53210-40B00-019

1
Out of stock

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

7

SCREW This part replaces 09136-06062.

09136-06017

2
Out of stock

8

SCREW, FRONT FENDER REAR

09136-06004

2
Out of stock

9

SCREW, FENDER & BRACE

09136-06022

2
Out of stock

10

NUT This part replaces 08319-31063.

08319-3106A

2
Out of stock

11

COVER, FENDER CENTER (YELLOW)

53118-40B00-25Y

1
Out of stock

12

SCREW, CENTER COVER

09136-06004

2
Out of stock

13

TAPE, FRONT FENDER

68155-40B60-D0L

1
Out of stock
← Front Fender Label →
