1995 Suzuki LT80S Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1995 Suzuki LT80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

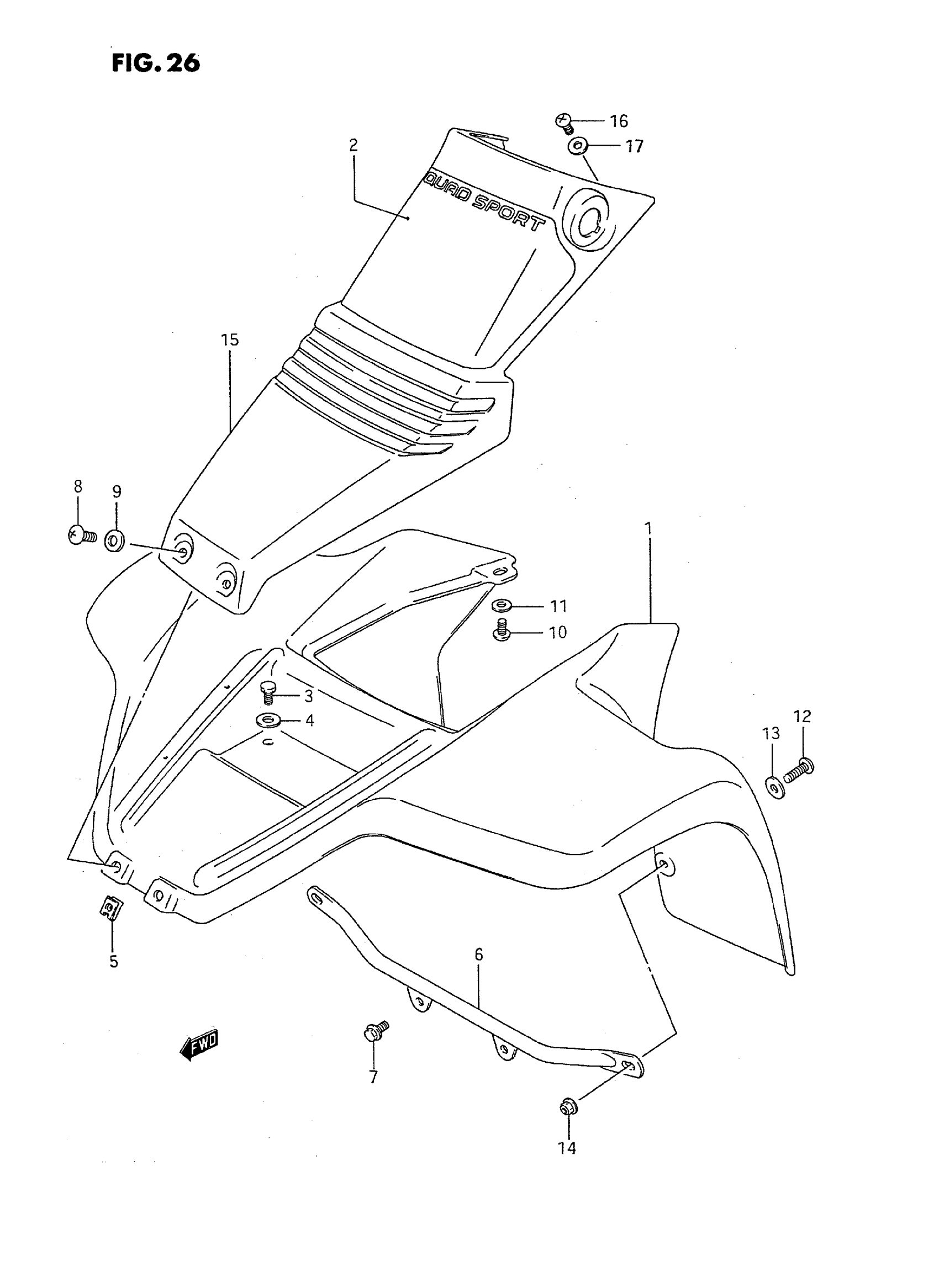

1995 Suzuki LT80S Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW) This part replaces 53111-40B00-25Y.

53111-40B01-25Y

1
Out of stock

2

TAPE SET

68150-40B00-9BS

1
Out of stock

3

2

$2.68

In stock

4

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

2
Out of stock

5

NUT, FENDER FRONT

53141-19A00

2
Out of stock

6

BRACE, FRONT FENDER (BLACK)

53210-40B00-019

1
Out of stock

7

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

8

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

9

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

10

SCREW This part replaces 02142-06126.

02142-0612A

2
Out of stock

11

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

2
Out of stock

12

SCREW, FENDER & BRACE

02142-06207

2
Out of stock

13

WASHER This part replaces 09160-06006.

09160-06084

2
Out of stock

14

NUT This part replaces 08319-31066.

08319-31067

2
Out of stock

15

COVER, FENDER CENTER (BLACK)

53118-40B00-291

1
Out of stock

16

SCREW This part replaces 02142-06125.

02142-0612A

2
Out of stock

17

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

18

REFER TO FIG.26A (E-6) FOR

SPECIAL NOTE

—
Out of stock
