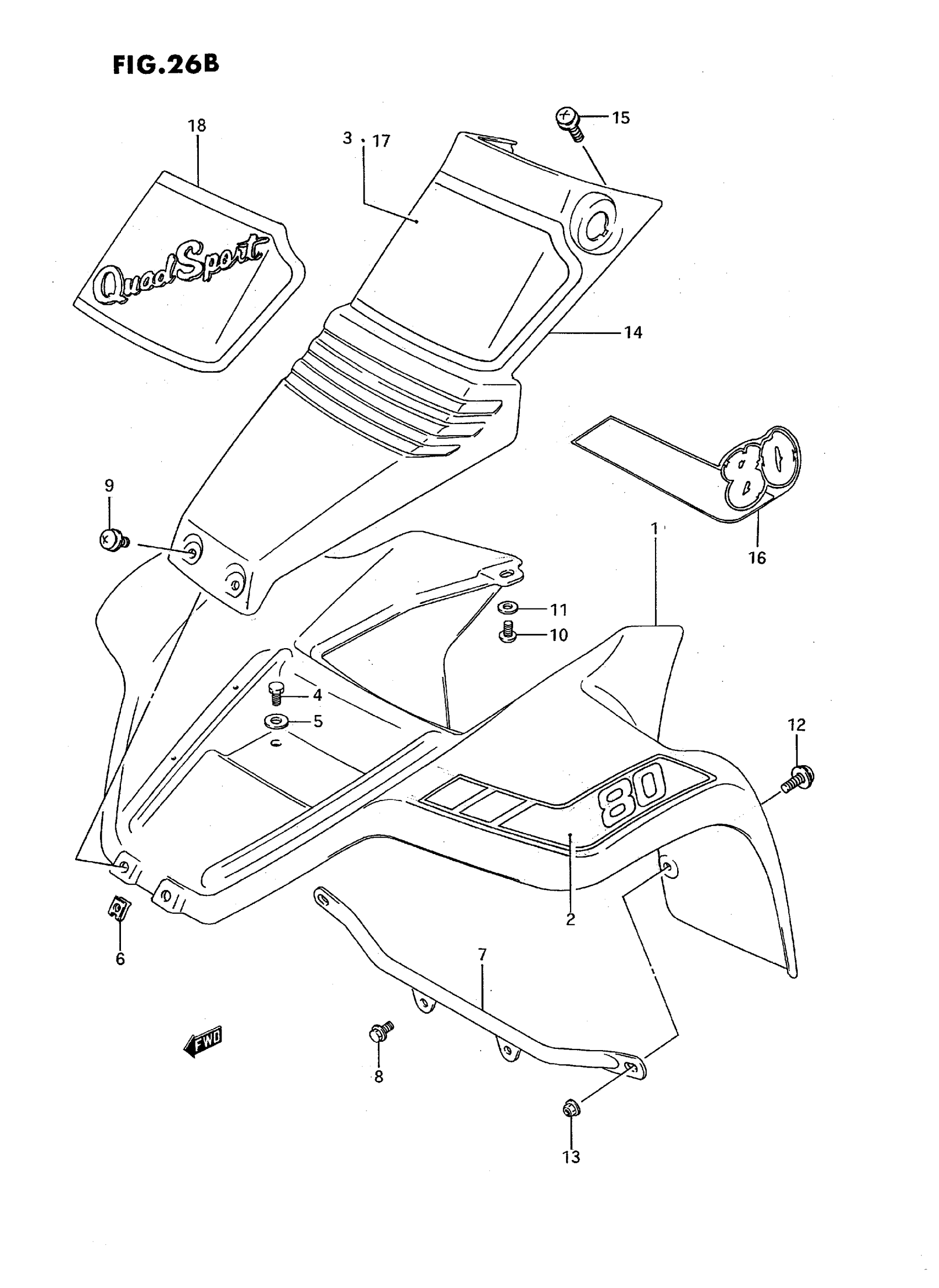

Suzuki LT80S (1995) FRONT FENDER (MODEL M/N/P/R) Diagram

#

Description
Price

1

FENDER FRONT This part replaces 53111-40B00-14L.

53111-40B01-14L

Unavailable

2

TAPE SET, FRONT FENDER | MODEL M

68150-40B20-0VZ

Unavailable

3

TAPE, FRONT FENDER | MODEL M

68155-40B30-0WJ

Unavailable

4

PLUG, DRAIN | ->01500-08163 This part replaces 01107-08167.

01500-0816B

$2.50

4

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

5

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

6

NUT, FENDER FRONT

53141-19A00

$4.34

7

BRACE, FRONT FENDER (BLACK)

53210-40B00-019

Unavailable

8

BOLT, CLAMP | MODEL M/N/P This part replaces 01517-06126.

01550-0612A

$1.97

8

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

9

SCREW This part replaces 09136-06062.

09136-06017

$2.59

10

SCREW | ->02142-06123 This part replaces 02142-06126.

02142-0612A

$1.49

10

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

11

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

12

SCREW, FENDER & BRACE

09136-06022

$2.21

13

NUT | ->08319-31063 This part replaces 08319-31066.

08319-31067

$2.03

13

NUT This part replaces 08319-31063.

08319-3106A

$2.03

14

COVER, FENDER CENTER (BLUE) | MODEL M/N

53118-40B00-19F

Unavailable

14

COVER, FENDER CENTER (YELLOW) | MODEL P/R

53118-40B00-25Y

Unavailable

15

SCREW, CENTER COVER

09136-06004

$2.15

16

TAPE SET, FRONT FENDER | MODEL N

68150-40B30-1JK

Unavailable

16

TAPE SET, FRONT FENDER | MODEL P

68150-40B30-1TJ

Unavailable

16

TAPE SET, FRONT FENDER | MODEL R

68150-40B30-C0D

Unavailable

17

TAPE, FRONT FENDER | MODEL N

68155-40B40-1JK

Unavailable

18

TAPE, FRONT FENDER CENTER | MODEL P

68155-40B50-1TH

Unavailable

18

TAPE, FRONT FENDER CENTER | MODEL R

68155-40B50-C0D

Unavailable

19

REFER TO FIG.26C(E-8) FOR

SPECIAL NOTE

Unavailable
