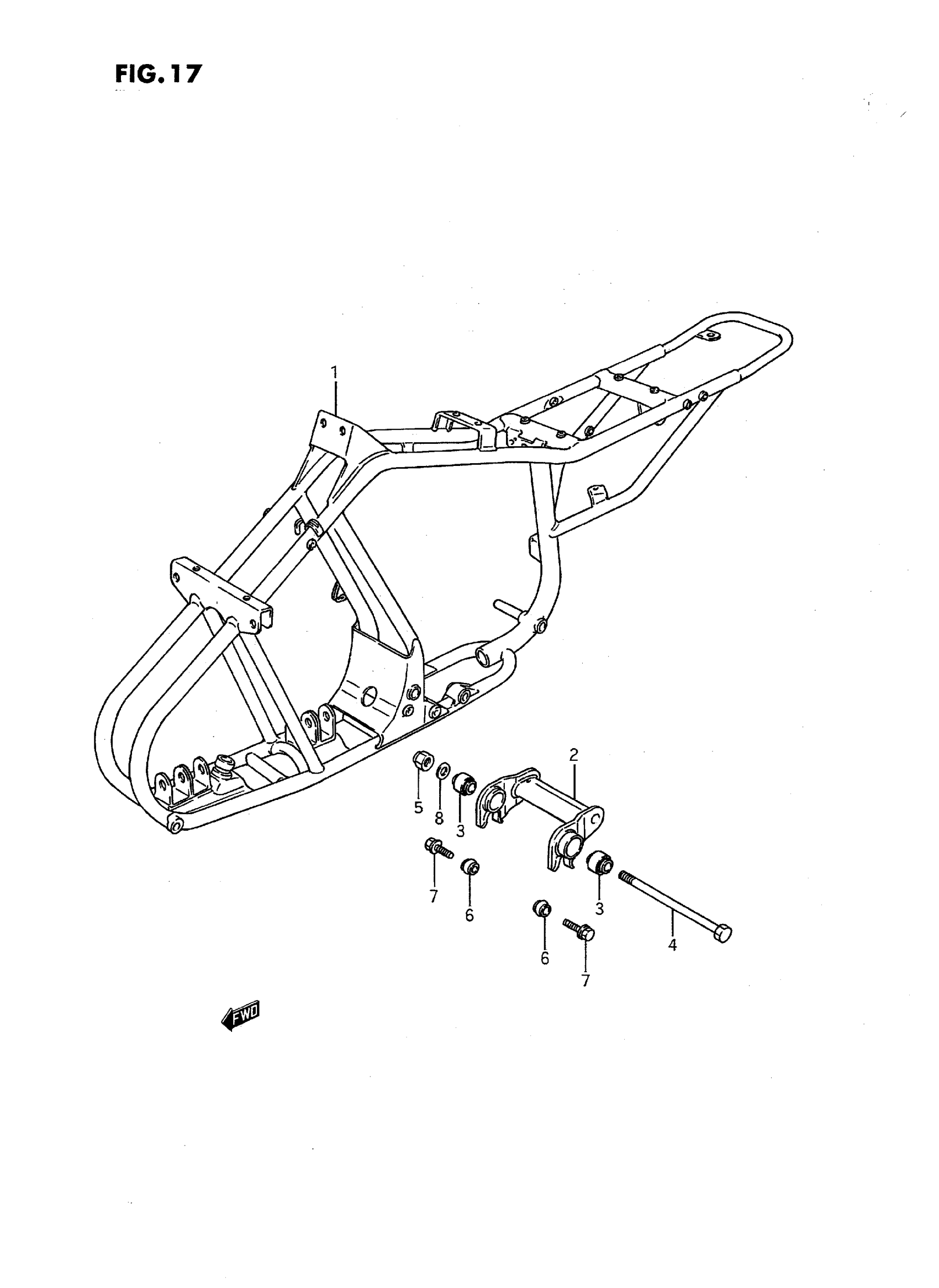

Suzuki LT80S (1995) FRAME Diagram

#

Description
Price

1

FRAME | MODEL H/J This part replaces 41100-40B00-19F.

41100-40B22-19F

Unavailable

1

FRAME | MODEL K/L/M/N/P This part replaces 41100-40B10-19F.

41100-40B22-19F

Unavailable

1

FRAME (BLACK) | MODEL R/S This part replaces 41100-40B10-019.

41100-40B12-019

Unavailable

2

BRACKET, CRANKCASE (BLUE) | MODEL H/J This part replaces 41180-40B00-19F.

41180-40B10-19F

Unavailable

2

BRACKET, CRANKCASE (BLUE) | MODEL K/L/M/N/P

41180-40B10-19F

Unavailable

2

BRACKET, CRANKCASE (BLACK) | MODEL R/S

41180-40B10-019

$108.15

3

BUSHING This part replaces 09319-14006.

09319-14008

$22.86

4

BOLT, ENGINE MOUNTING (L:212) | MODEL H/J This part replaces 61211-40B00.

09103-14021

$28.18

4

BOLT, ENGINE MOUNTING (L:212) | MODEL K/L/M/N/P/R/S This part replaces 61211-40B01.

09103-14021

$28.18

5

NUT This part replaces 08319-21148.

08319-2114A

$3.96

6

CUSHION This part replaces 09320-10023.

09320-10074

$4.45

7

BOLT, RH | MODEL H/J/K/L/M/N/P/R This part replaces 01517-10308.

01550-10307

$3.91

7

BOLT | MODEL S This part replaces 01550-10303.

01550-1030A

$3.55

8

WASHER | MODEL J/K/L/M/N/P/R/S

09160-14027

$2.42
