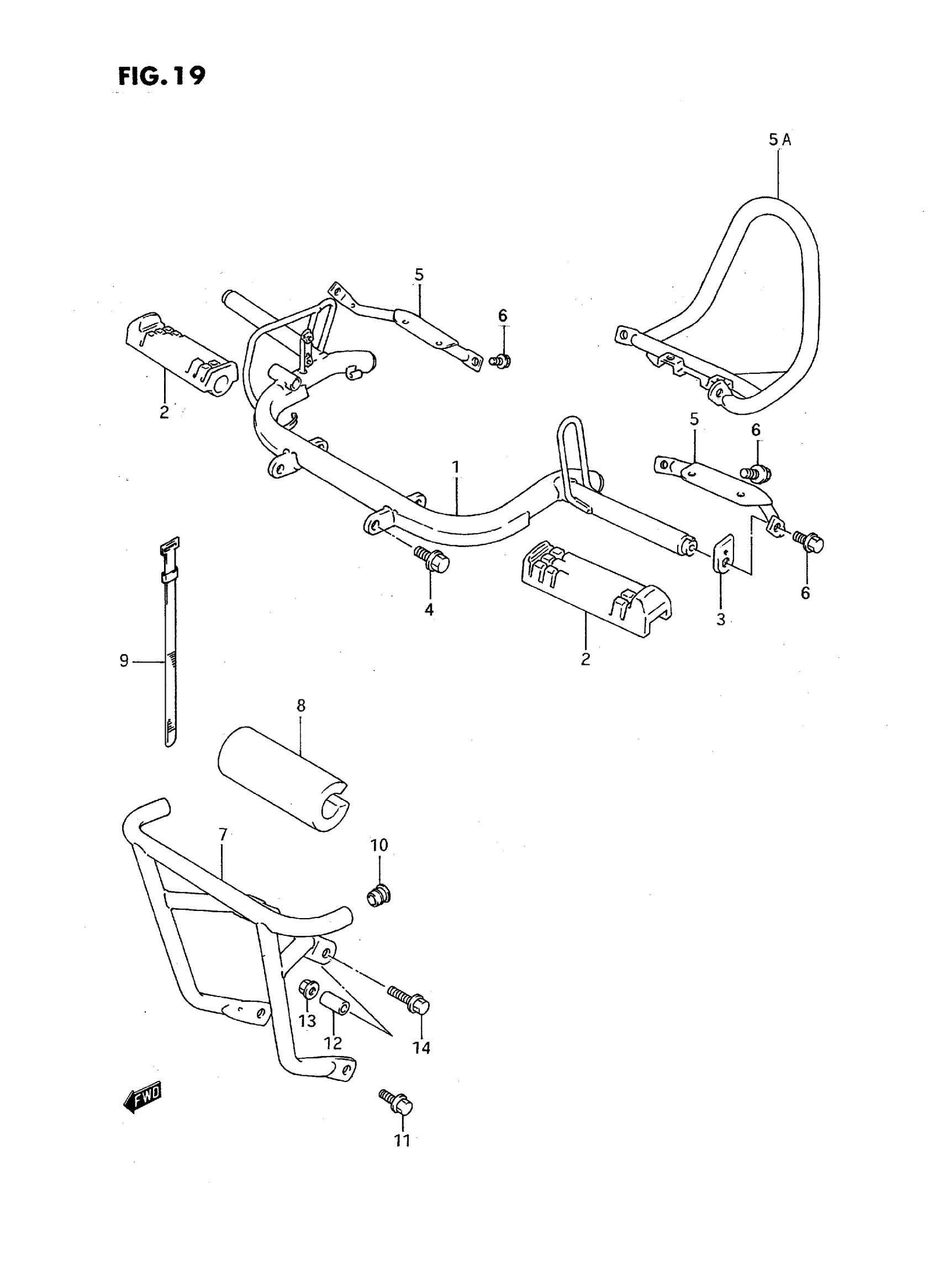

Suzuki LT80S (1995) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST (BLACK) | MODEL H/J This part replaces 43510-40B00-19F.

43510-40B01-019

Unavailable

1

BAR, FRONT FOOTREST (BLACK) | MODEL K/L/M/N/P This part replaces 43510-40B01-19F.

43510-40B01-019

Unavailable

1

BAR, FRONT FOOTREST (BLACK) | MODEL R/S

43510-40B01-019

Unavailable

2

RUBBER, FRONT FOOTREST

43551-40B00

$17.14

3

STOPPER, RUBBER

43553-24200

$6.17

4

BOLT

09103-10100

$5.57

5

GUARD, BRUSH RH (BLUE) | MODEL H/J/K/L

43570-40B00-19F

Unavailable

5

GUARD, BRUSH LH (BLUE) | MODEL H/J/K/L

43580-40B00-19F

Unavailable

5A

GUARD, BRUSH RH (BLACK) | MODEL M/N/P This part replaces 43570-40B10-19F.

43570-40B10-019

$124.28

5A

GUARD, BRUSH LH (BLACK) | MODEL R/S

43580-40B10-019

Unavailable

5A

GUARD, BRUSH RH (BLACK) | MODEL M/N/P This part replaces 43570-40B10-19F.

43570-40B10-019

$124.28

5A

GUARD, BRUSH RH (BLACK) | MODEL R/S

43570-40B10-019

$124.28

6

BOLT (8X12) | MODEL H/J/K/L This part replaces 01517-08126.

01550-0812A

$2.32

6

BOLT | MODEL M/N/P/R This part replaces 01517-08206.

01550-0820A

$2.23

6

BOLT | MODEL S This part replaces 01550-08203.

01550-0820A

$2.23

7

GRIP, FRONT (BLUE) | MODEL H/J This part replaces 43990-40B00-19F.

43990-40B10-19F

$136.13

7

GRIP, FRONT (BLUE) | MODEL K/L/M/N/P

43990-40B10-19F

$136.13

7

GRIP, FRONT (BLACK) | MODEL R/S

43990-40B10-019

Unavailable

8

PAD, FRONT GRIP | MODEL H/J

43998-40B00

Unavailable

9

CLAMP | MODEL H/J

09407-18401

$2.07

10

PLUG(OD:19) | MODEL H/J This part replaces 09250-14002.

09250-14010

$2.25

10

CAP | MODEL K/L/M/N/P/R/S

43978-24500

$8.42

11

BOLT | MODEL H/J/K/L/M/N/P/R This part replaces 01517-08357.

01550-08357

$3.49

11

BOLT (8X35) | MODEL S This part replaces 01550-08353.

01550-0835A

$3.04

12

SPACER

09180-08067

$2.41

13

NUT (CHROME) | MODEL H/J/K/L/M/N/P/R This part replaces 08316-16088.

08316-10087

$2.26

13

NUT | MODEL S This part replaces 08316-10083.

08316-1008B

$2.66

14

BOLT M8X16 | MODEL H/J/K/L/M/N/P/R This part replaces 01517-08167.

01550-08167

$2.85

14

BOLT (8X16) | MODEL S This part replaces 01550-08163.

01550-0816A

$2.32
