Description

Price

1

FACE, FIXED DRIVE

21110-40B02

$143.32

2

FACE, MOVABLE DRIVE

21120-29A02

$74.88

3

PLATE, MOVABLE DRIVE FACE

21431-29A00

$8.73

4

DAMPER

21481-29A01

$4.34

5

ROLLER, MOVABLE DRIVE FACE

21650-29A20

$4.88

6

COVER

21122-03A01

$4.34

7

O RING (D:3.1,ID:84.4)

09280-85003

$7.25

8

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

9

SPACER (16X22X35.3)

09180-16043

$23.64

9

SPACER (16X22X32.33)

09180-16046

$23.40

10

OIL SEAL (22X30X4)

09283-22018

$5.57

11

V BELT

27601-40B01

$44.90

12

NUT

09140-12037

$3.04

13

WASHER

09164-12020

$2.35

14

WASHER (14.5X32X3)

09160-14063

$2.96

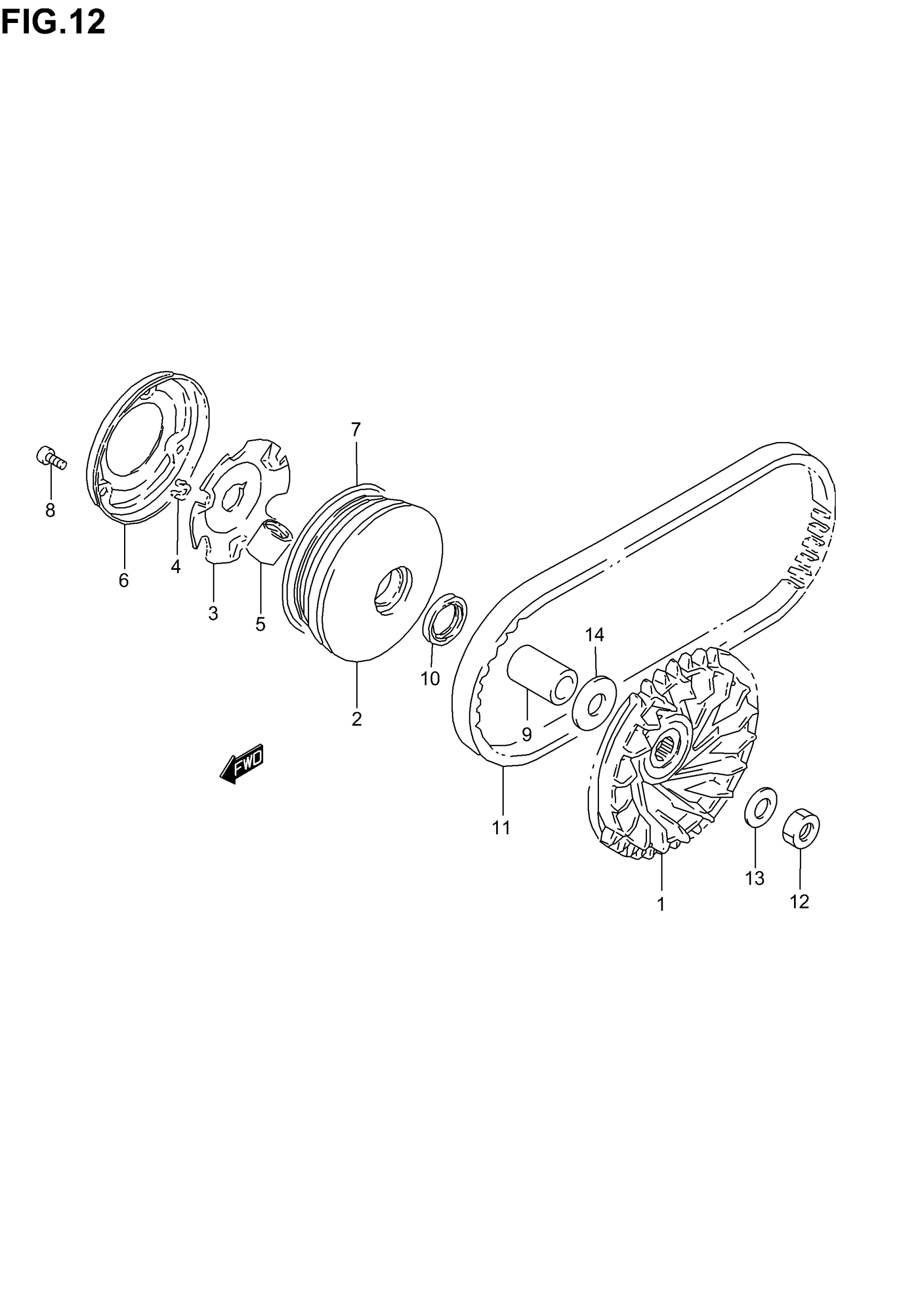

Suzuki LT80 (2006) TRANSMISSION (1) Diagram
