Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 13

31100-40B01

$393.97

2

ARMATURE

31311-40B01

Unavailable

3

HOLDER SET, BRUSH

31130-40B01

$99.63

4

SPRING

31135-03A00

$4.52

5

.GASKET

31157-03A00

$9.33

6

GASKET

31158-40B01

$10.65

7

GEAR ASSY, PINION

31370-40B00

$185.15

8

SCREW This part replaces 02112-34303.

02112-3430B

$3.15

9

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

10

CLAMP, LEAD WIRE

31154-11B00

Unavailable

11

LEAD WIRE

31142-40B00

$28.72

12

SCREW This part replaces 02112-34063.

02112-3406A

$1.99

13

O RING

31156-02100

$4.57

14

CLAMP, LEAD WIRE (L:125)

09407-14403

$2.26

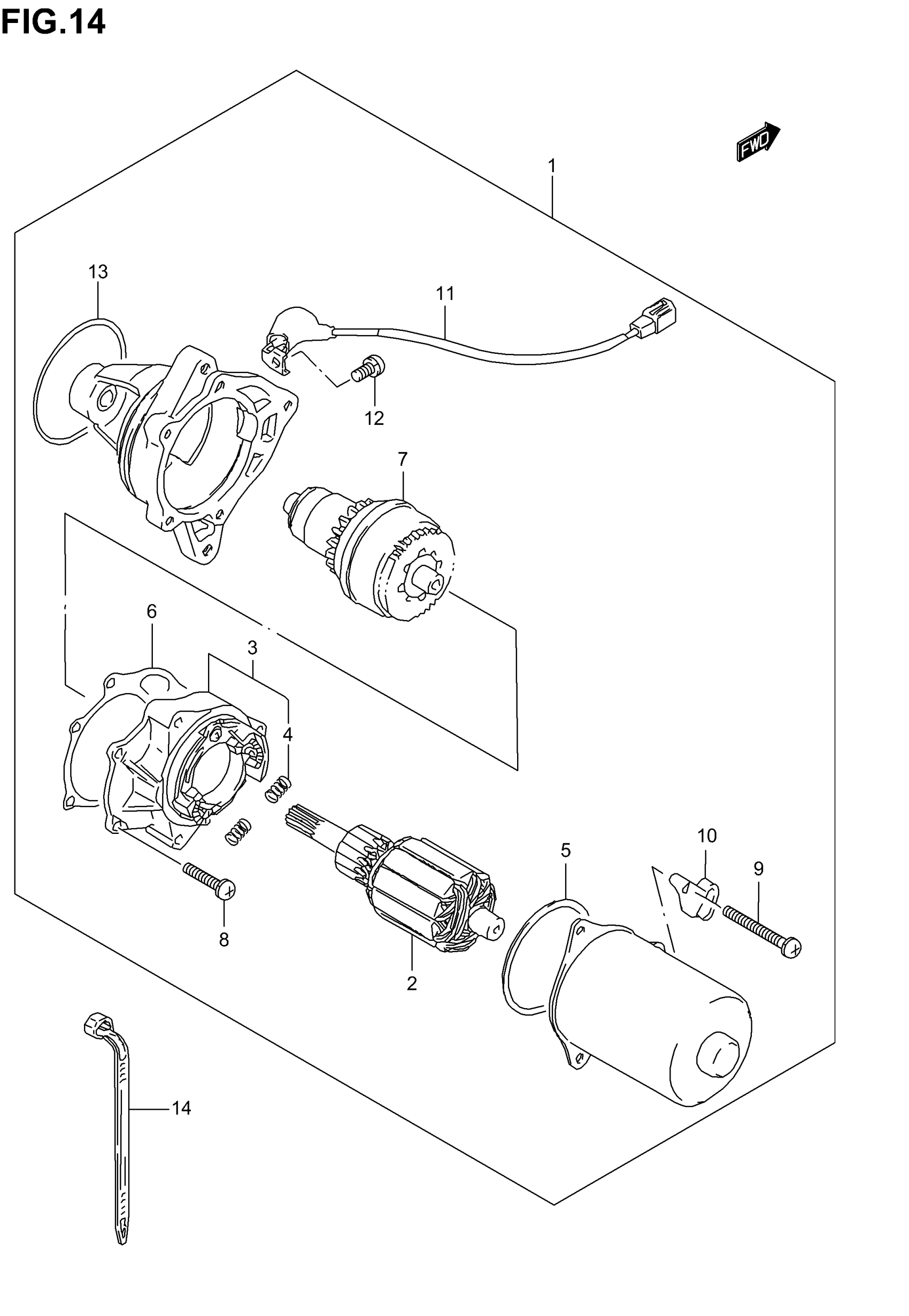

Suzuki LT80 (2006) STARTING MOTOR Diagram
