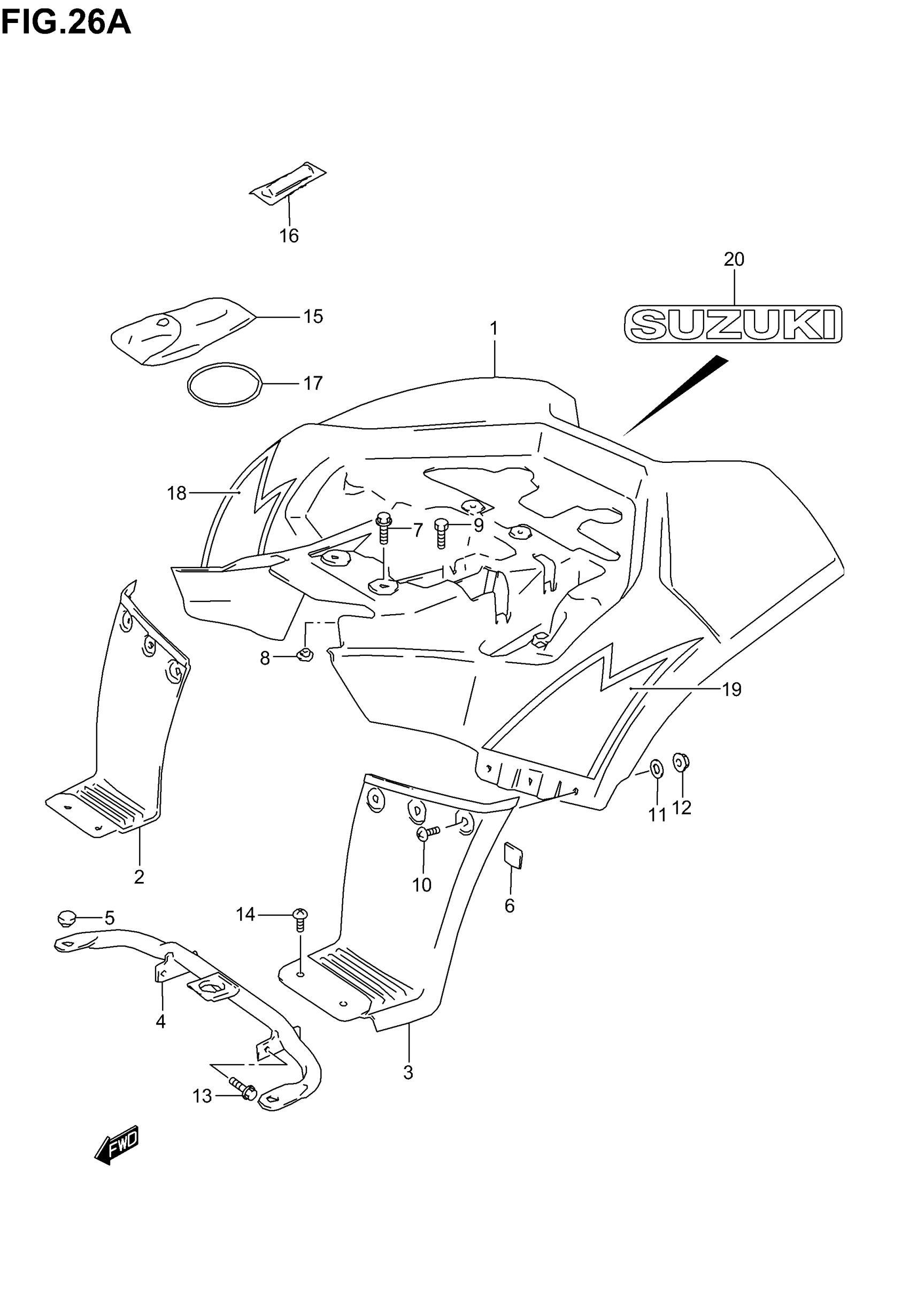

Suzuki LT80 (2006) REAR FENDER (MODEL K4) Diagram

#

Description
Price

1

BODY, REAR CENTER (YELLOW) | FOR GB7

63111-40B01-YU1

$489.68

1

BODY, REAR CENTER (RED) | FOR JK1

63111-40B01-YT9

$508.35

2

BODY, REAR FENDER RH (BLACK)

63112-40B01-291

$31.34

3

BODY, REAR FENDER LH (BLACK)

63113-40B01-291

$31.34

4

REINFORCEMENT, REAR FENDER

63130-40B00

Unavailable

5

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

6

CUSHION, GUARD

63191-25C00

$3.05

7

BOLT (6X20)

09116-06009

$2.12

8

WASHER

09169-08036

$2.30

9

BOLT

09116-06010

$2.19

10

SCREW

09136-06081

$2.26

11

WASHER

09160-06084

$1.78

12

NUT

08319-31067

$2.03

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

SCREW

09136-06004

$2.15

15

TOOL ASSY This part replaces 09800-21026.

09800-21080

$36.42

16

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

17

BAND

09280-70004

$3.85

18

TAPE, REAR FENDER RH | FOR GB7

68175-40B20-LY8

Unavailable

18

TAPE, REAR FENDER RH | FOR JK1

68175-40B20-LY9

Unavailable

19

TAPE, REAR FENDER LH | FOR GB7

68176-40B20-LY8

Unavailable

19

TAPE, REAR FENDER LH | FOR JK1

68176-40B20-LY9

Unavailable

20

EMBLEM, "SUZUKI" | FOR GB7

68131-43FA0-GY8

Unavailable

20

EMBLEM, "SUZUKI" | FOR JK1

68131-43FA0-LZ3

Unavailable
