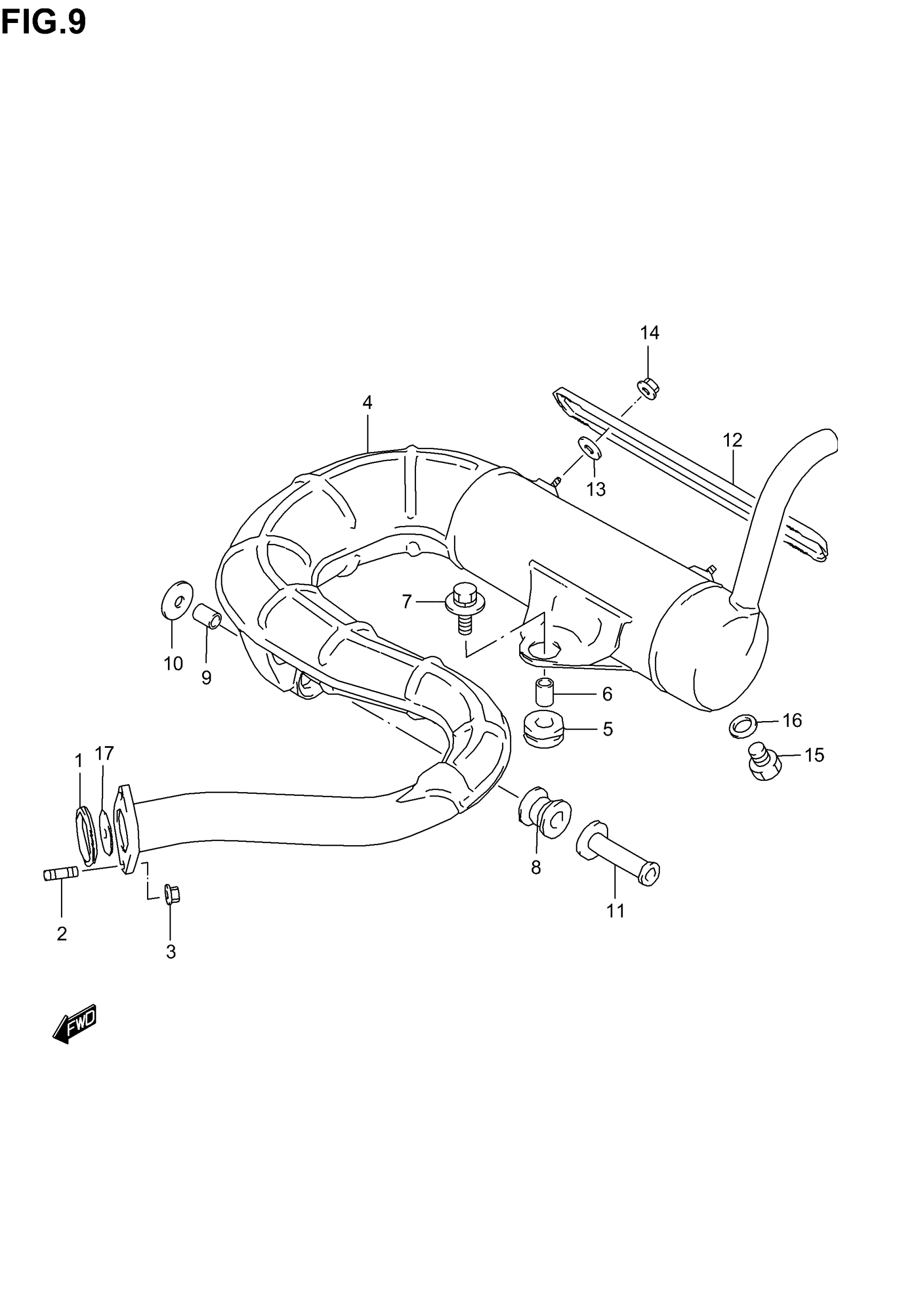

Suzuki LT80 (2006) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-23E00

$10.11

2

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

3

NUT This part replaces 08361-15063.

08361-1506A

$1.93

4

BODY, MUFFLER

14310-40B20

Unavailable

5

CUSHION

09320-13007

$3.49

6

SPACER (8.5X14X14)

09180-08202

$4.52

7

BOLT (8X35)

09118-08080

$3.03

8

CUSHION

09320-12043

$7.98

9

SPACER (8.5X12X17.5)

09180-08194

$3.05

10

WASHER (8.5X28X3.2)

09160-08137

$3.03

11

SPACER, MUFFLER SUPPORT

14770-40B00

$18.43

12

COVER, MUFFLER

14780-40B01

Unavailable

13

GASKET (6X16X1.4)

09168-06122

$2.73

14

NUT This part replaces 08319-31063.

08319-3106A

$2.03

15

PLUG, MUFFLER DRAIN

09247-12104

$2.73

16

GASKET

09168-12002

$1.59

17

PLATE, EXHAUST PIPE

14159-40B00

$4.72
