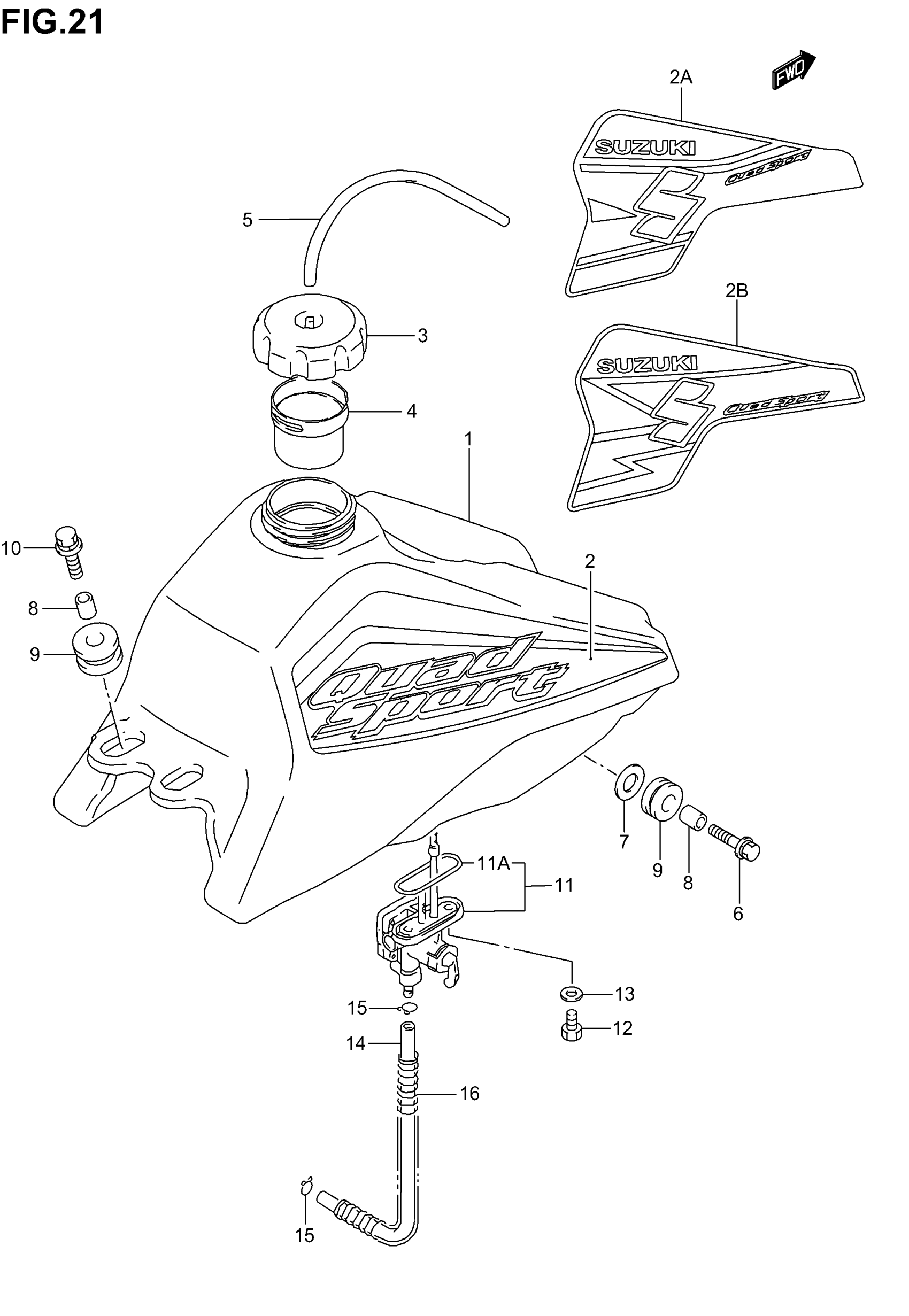

Suzuki LT80 (2006) FUEL TANK (MODEL K2/K3/K4) Diagram

#

Description
Price

1

TANK, FUEL (BLACK)

44110-40B00-291

$500.28

2

TAPE SET, FUEL TANK | MODEL K2

68110-40B40-YU5

Unavailable

2A

TAPE SET, FUEL TANK | MODEL K3 FOR GB7

68110-40B50-GY7

Unavailable

2A

TAPE SET, FUEL TANK | MODEL K3 FOR JK1

68110-40B50-JM9

Unavailable

2B

TAPE SET, FUEL TANK | MODEL K4 FOR GB7

68110-40B60-KD2

Unavailable

2B

TAPE SET, FUEL TANK | MODEL K4 FOR JK1

68110-40B60-LY7

Unavailable

3

CAP ASSY, FUEL TANK

44200-19A01

$48.20

4

TUBE, FILLER INLET

44199-19A00

$6.28

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

BOLT, FRONT

09118-08130

$3.37

7

WASHER

09160-08136

$2.50

8

SPACER

09180-08191

$2.53

9

CUSHION

09320-12016

$2.11

10

BOLT, REAR

09116-06050

$2.26

11

COCK ASSY,FUEL | Includes Item(s) 11A This part replaces 44300-40B00.

44300-40B01

$90.58

11A

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

12

SCREW, FUEL COCK

09128-06065

$2.15

13

GASKET

09168-06026

$3.10

14

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

15

CLIP

09401-08401

$1.54

16

SPRING

09440-10009

$5.47
