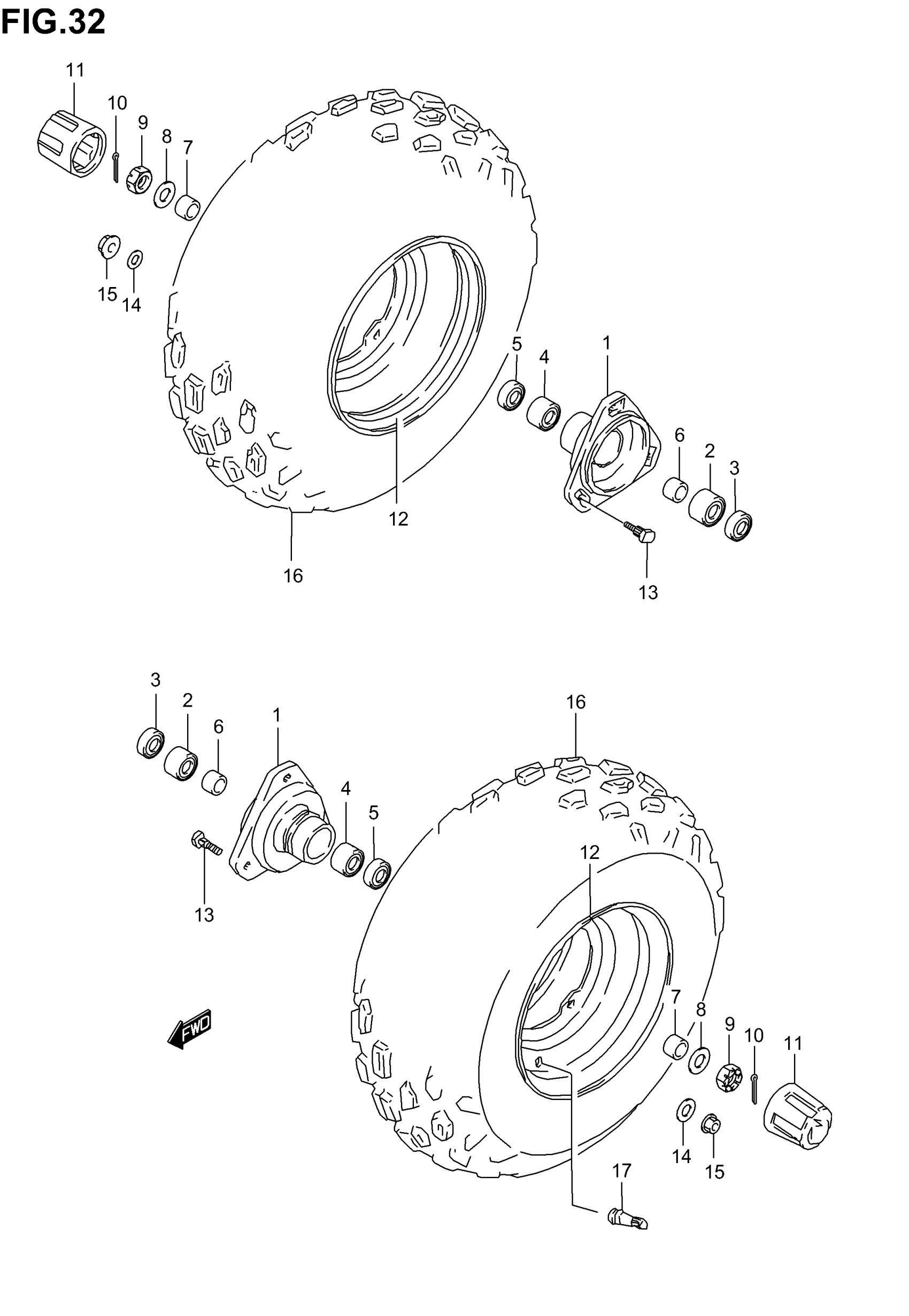

Description

Price

1

HUB, FRONT

54110-40B00

$127.20

2

BEARING, INNER (17X40X12)

09262-17031

$33.65

3

DUST SEAL, FRONT HUB INNER This part replaces 09283-22012.

09283-22028

$8.52

4

BEARING, OUTER (15X35X11)

09262-15024

$24.83

5

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$6.02

6

SPACER, FRONT HUB

54731-40B00

$4.82

7

SPACER,FRONT AXLE

54741-40B00

$4.82

8

WASHER This part replaces 08322-01143.

08322-0114A

$1.84

9

NUT, HUB This part replaces 08314-40143.

08314-4014B

$4.24

10

PIN This part replaces 04111-30308.

04111-3030A

$1.49

11

CAP, WHEEL, CENTER

54725-18A00

$10.28

12

RIM, FRONT WHEEL (8X5.5AT) (WHITE) | MODEL K2

55310-40B00-14L

Unavailable

12

RIM, FRONT WHEEL (8X5.5AT) (SILVER) | MODEL K3/K4/K5/K6

55310-40B00-13L

$312.13

13

BOLT This part replaces 09119-10051.

09119-10051-XC0

$2.92

14

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

15

NUT This part replaces 08316-10103.

08316-1010B

$2.66

16

NO DESCRIPTION AVAILABLE This part replaces 55100-40B51.

55100-40B60
