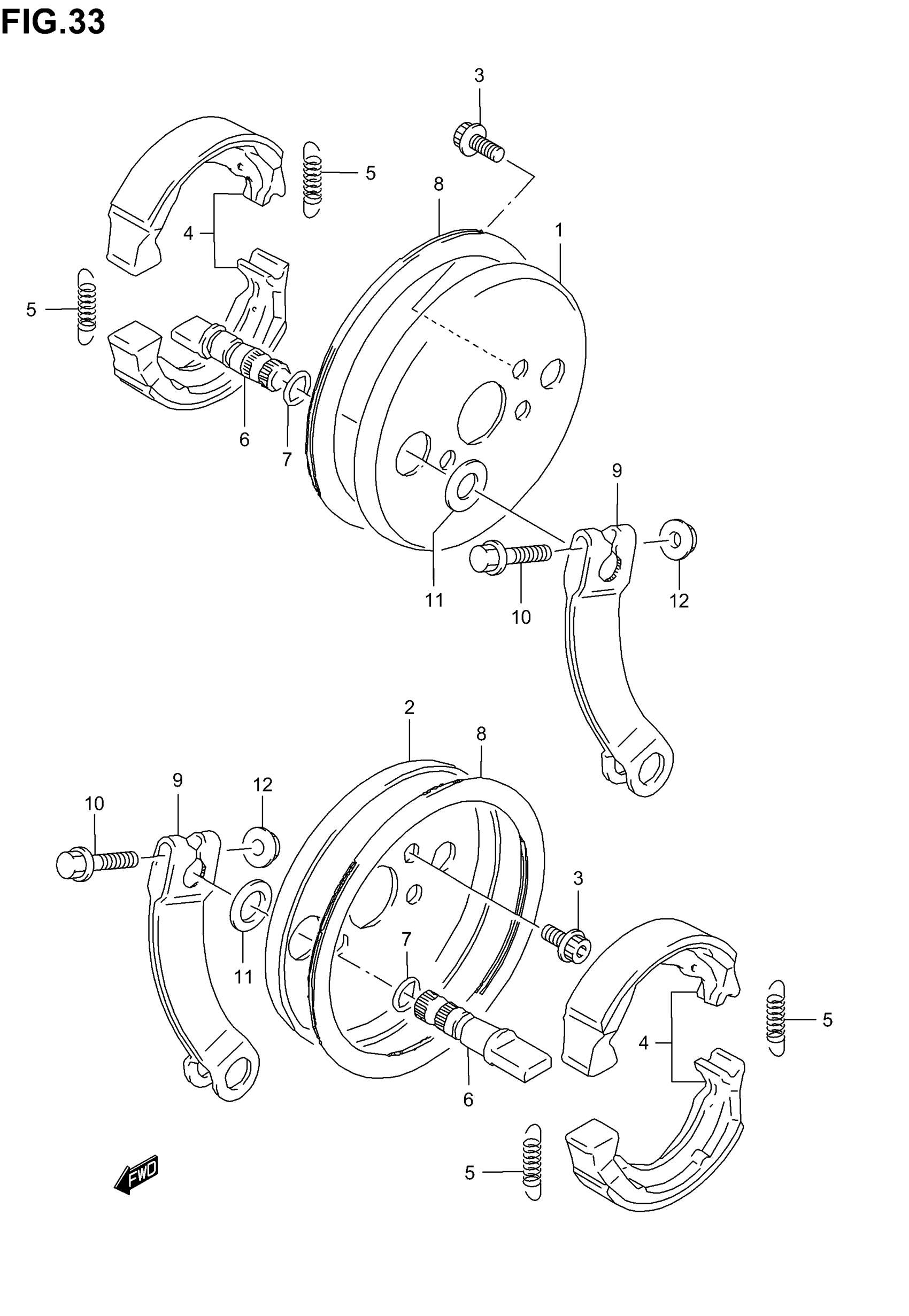

Suzuki LT80 (2006) FRONT BRAKE Diagram

#

Description
Price

1

PLATE, BRAKE ANCHOR RH

54511-40B00

$19.61

2

PLATE, BRAKE ANCHOR LH

54521-40B00

Unavailable

3

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.45

4

SHOE SET,BRAKE

54400-40810

$17.69

5

SPRING, BRAKE SHOE

09443-06029

$2.44

6

CAM, FRONT BRAKE

54441-02301

$16.87

7

O RING, (ID:9.8,OD:1.90)

09280-10016

$3.37

8

DUST SEAL

54124-40B00

Unavailable

9

LEVER, BRAKE CAM

54451-40B00

Unavailable

10

BOLT, CAM LEVER (5X27)

09103-05012

$2.38

11

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

12

NUT This part replaces 08316-20053.

08316-2005A

$2.19
