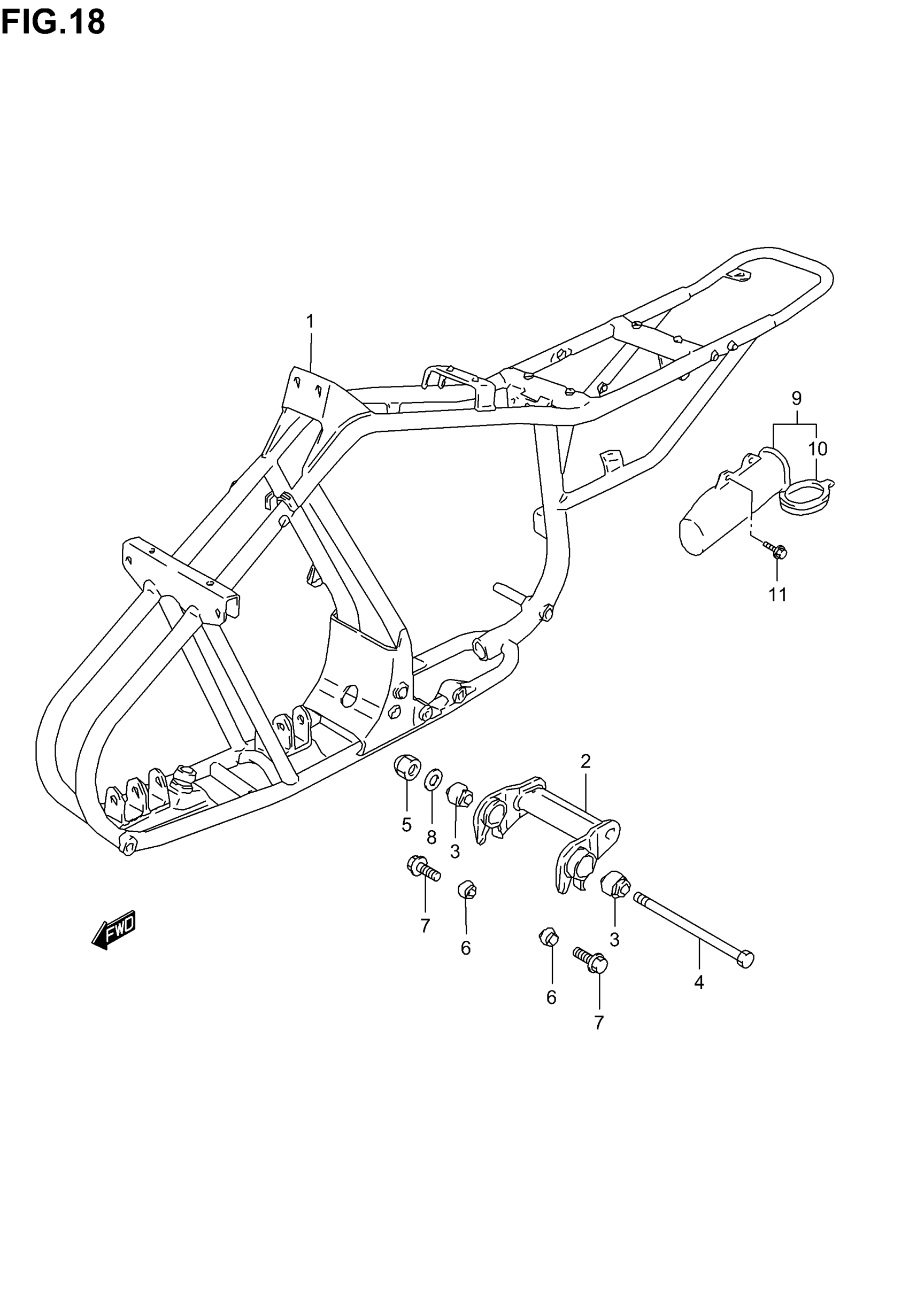

Suzuki LT80 (2006) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-40B12-019

Unavailable

1

FRAME (BLACK) | P28

41100-40B22-019

Unavailable

2

BRACKET, CRANKCASE (BLACK)

41180-40B10-019

$108.15

3

BUSHING This part replaces 09319-14006.

09319-14008

$22.86

4

BOLT, ENGINE MOUNTING (L:212) | MODEL K2/K3 This part replaces 61211-40B01.

09103-14021

$28.18

4

BOLT, CRANKCASE BRACKET | MODEL K4/K5/K6

09103-14021

$28.18

5

NUT This part replaces 08319-21148.

08319-2114A

$3.96

6

CUSHION This part replaces 09320-10023.

09320-10074

$4.45

7

BOLT This part replaces 01550-10303.

01550-1030A

$3.55

8

WASHER

09160-14027

$2.42

9

HOLDER,TOOL | MODEL K2/K3

41550-32E00

$72.82

9

HOLDER, TOOL | MODEL K4/K5/K6

41550-40BK0

Unavailable

9

HOLDER, TOOL | MODEL K3 P28

41550-32E10

Unavailable

9

HOLDER, TOOL | MODEL K4/K5 P28; Includes Item(s) 10 - 10

41550-40BL0

Unavailable

10

CAP | MODEL K2/K3

41552-37210

$9.78

10

CAP | MODEL K4/K5/K6 This part replaces 41552-40BK0.

41552-37210

$9.78

11

BOLT

09116-06006

$1.86
