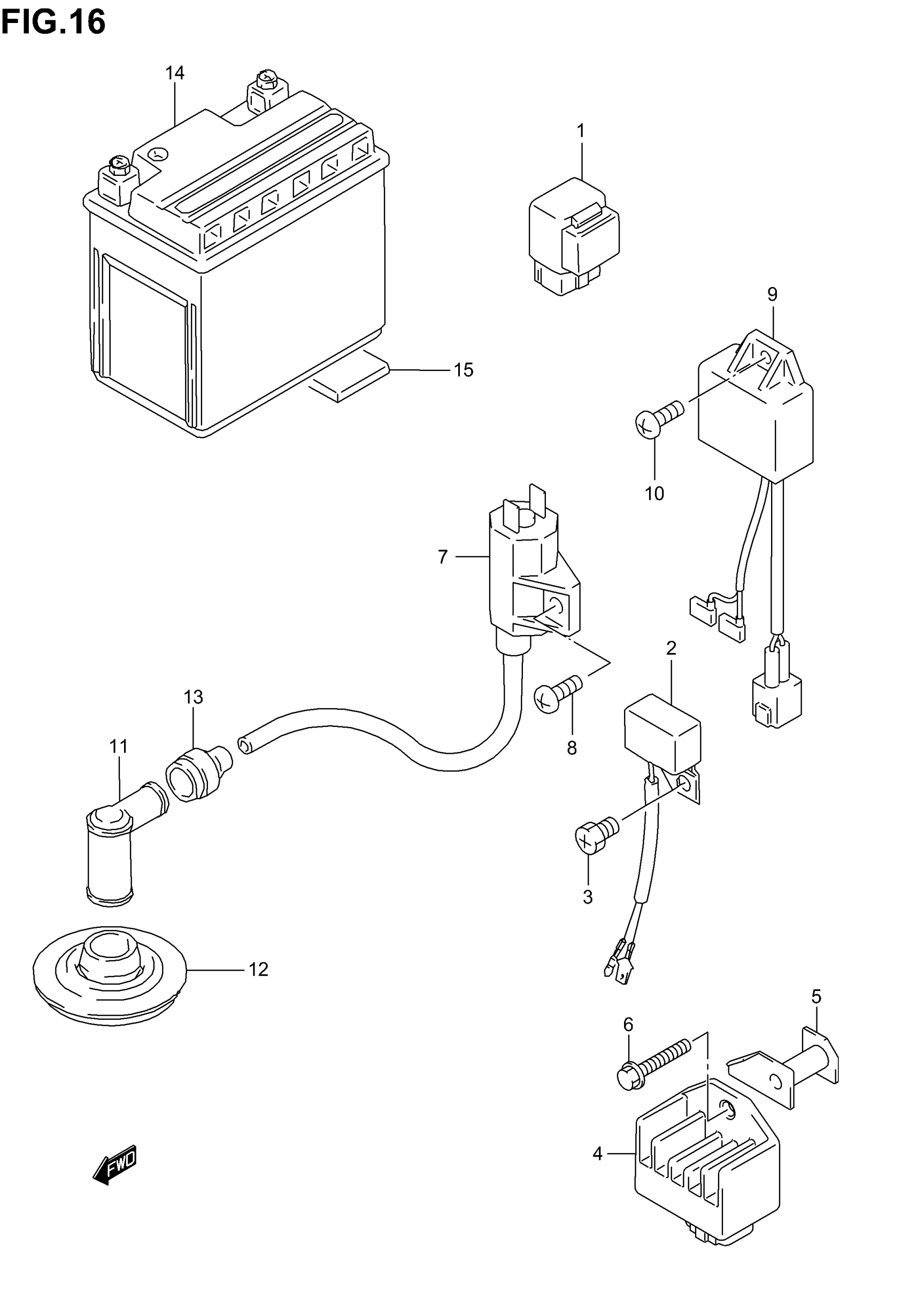

Suzuki LT80 (2006) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-40B01.

31800-40B02

$29.27

RECTIFIER ASSY | MODEL K2/K3/K4/K5

32800-40B00

Unavailable

SCREW (6X10) | MODEL K2/K3/K4/K5

09128-06044

$1.49

RECTIFIER ASSY | MODEL K6

32800-40B10

$82.35

BRACKET, RECT FTG | MODEL K6

32831-40B00

Unavailable

BOLT, RECT | MODEL K6

01550-06357

$2.77

UNIT & COIL ASSY, IGNITION

33410-22AV0

$116.00

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

CDI UNIT

32900-40B00

$238.23

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

CAP, SPARK PLUG

33510-12900

$20.08

BOOT, SPARK PLUG CAP

33543-40B00

$8.30

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

BATTERY (YTX5L-BS,12V4AH)

33610-40B20

$58.55

CUSHION, BATTERY (170X95X3) | CUT AS REQUIRED PROFILE (40X30)

33651-37000

$4.48
