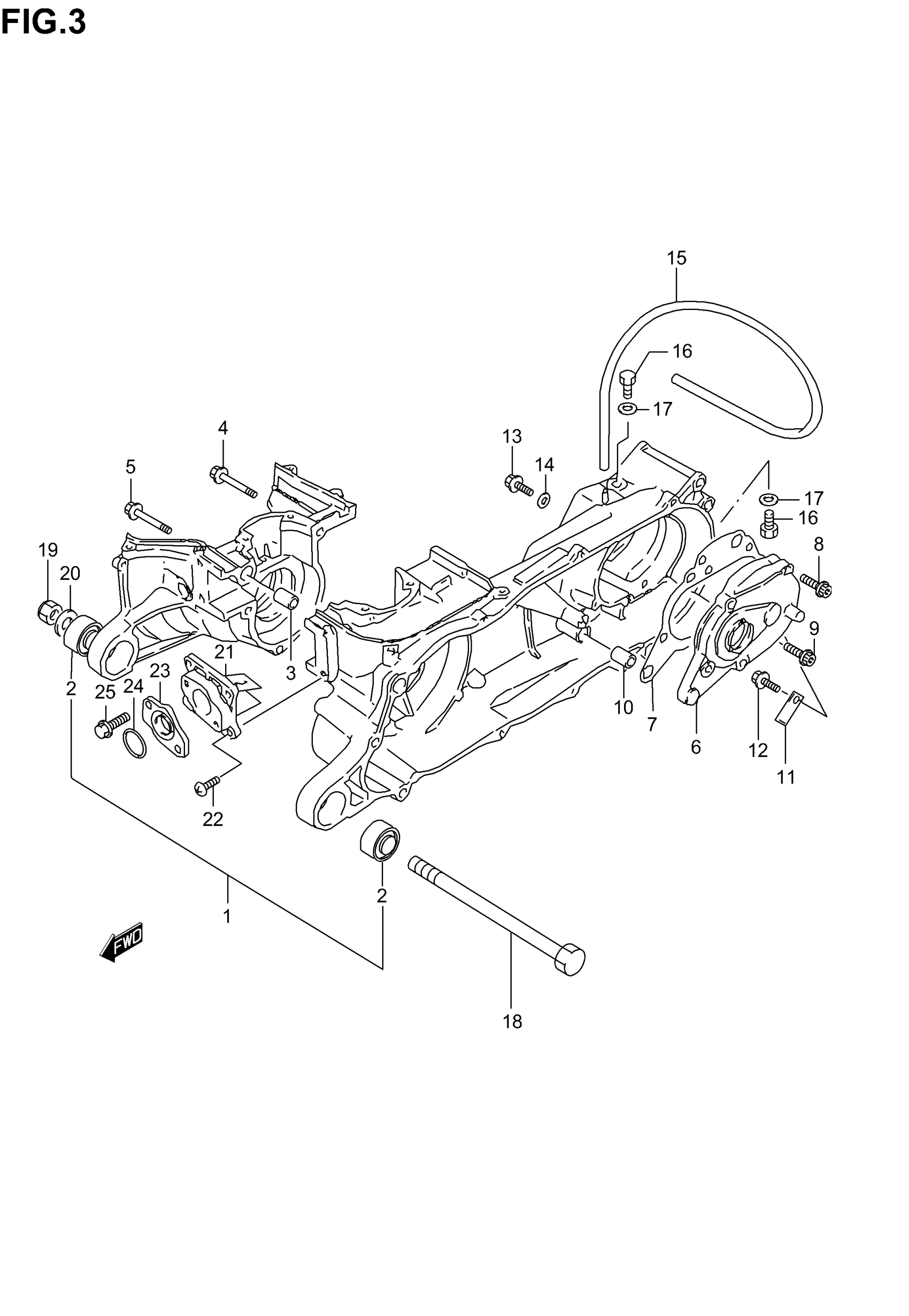

Suzuki LT80 (2006) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 5 This part replaces 11301-40821.

11301-40822

Unavailable

2

BUSH

09319-14005

$20.72

3

PIN

04211-13189

$2.19

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

6

COVER,GEAR BOX This part replaces 11430-29811.

11430-29812

Unavailable

7

GASKET, GEAR BOX COVER

11484-29A20

$12.32

8

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

9

BOLT This part replaces 07120-06303.

07120-0630B

$3.49

10

PIN

04211-11169

$1.78

11

MAGNET, GEAR BOX

11393-20E00

Unavailable

12

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

13

PLUG, OIL LEVEL

09128-06044

$1.49

14

GASKET

09168-06004

$1.49

15

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

16

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

17

GASKET (8.2X14X1)

09168-08016

$1.65

18

BOLT, ENGINE MOUNTING (L:212)

09103-14021

$28.18

19

NUT This part replaces 08319-21148.

08319-2114A

$3.96

20

WASHER

09160-14027

$2.42

21

VALVE ASSY,REED This part replaces 13150-40B00.

13150-40B01

$48.89

22

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

23

INSULATOR, CARBURETOR

13129-40B00

$8.73

24

O RING (D:1.5,ID:22.5)

09280-22002

$1.65

25

SCREW (6X19)

09128-06071

$2.77
