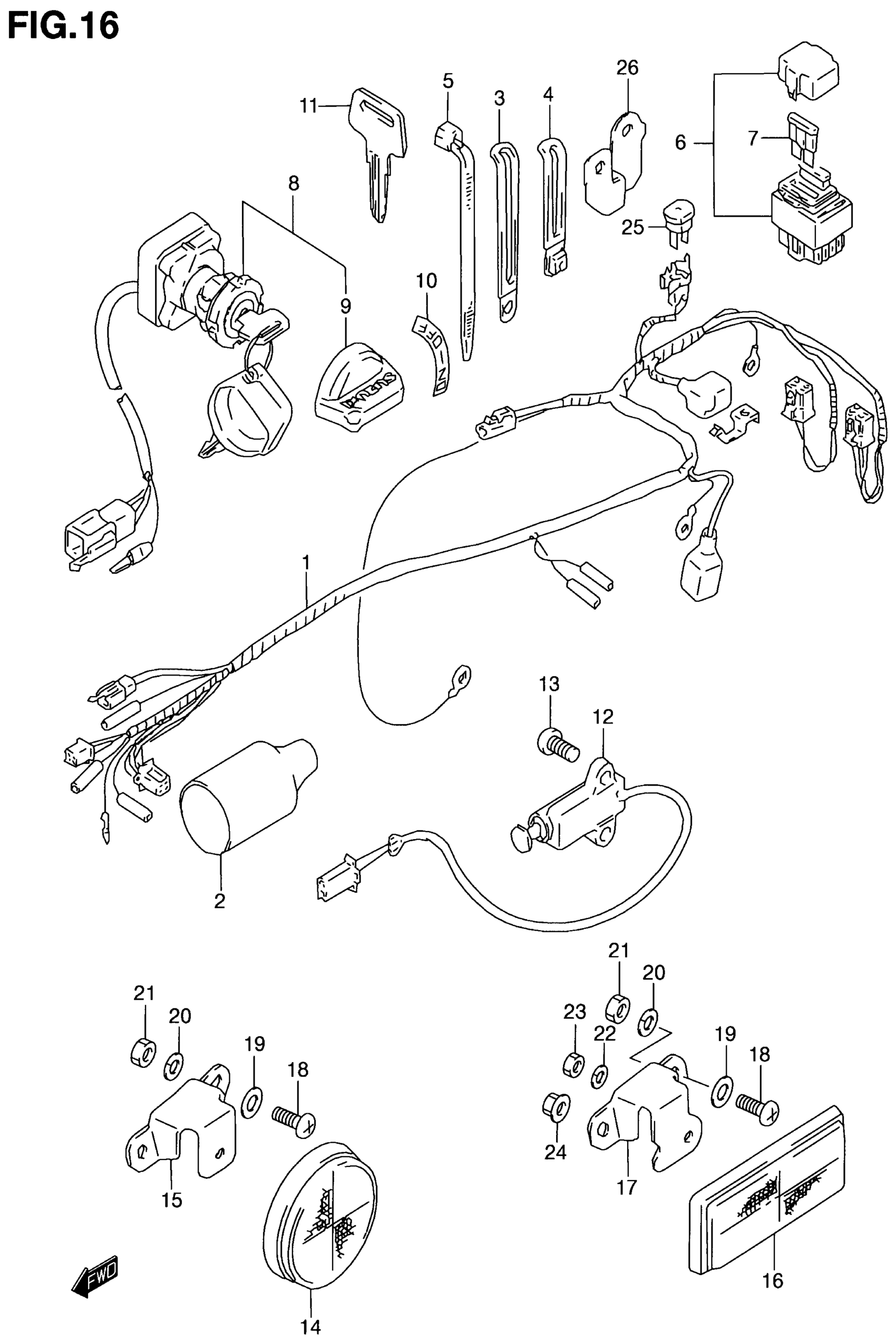

Suzuki LT80 (2001) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL T/V/W/X

36610-40B10

Unavailable

1

HARNESS, WIRING | MODEL Y/K1; Includes Item(s) 2

36610-40B20

$169.33

2

BOOT, WIRING HARNESS

36618-30000

$9.00

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

3

CLAMP (L:125)

09404-08420

$3.16

4

CLAMP (L:80)

09404-06425

Unavailable

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

6

BOX ASSY, FUSE | Includes Item(s) 7

36740-40B00

$22.43

7

FUSE (5A)

09481-05101

$1.94

8

SWITCH ASSY,IGNITION | Includes Item(s) 9 This part replaces 37110-40B00.

37110-40B01

$113.23

9

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

10

PLATE, CONTROL IDENTIFCATION

37139-40B03

$3.47

11

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

11

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

12

SWITCH ASSY,SD This part replaces 37840-40B01.

37840-40B02

$100.02

13

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

14

REFLECTOR, FRONT SIDE | E28

35950-14A00

$16.94

15

BRACKET, FRONT RH | E28

35956-40B00

Unavailable

15

BRACKET, FRONT LH | E28

35957-40B00

Unavailable

16

REFLECTOR, REAR | E28

35970-00A10

Unavailable

17

BRACKET, REAR SIDE RH | E28

35975-40B00

Unavailable

17

BRACKET, REAR SIDE LH | E28

35976-40B00

Unavailable

18

SCREW | E28 This part replaces 02142-06163.

02142-0616A

$1.49

19

.WASHER | E28 This part replaces 08322-01063.

08322-0106B

$2.26

20

LOCK WASHER | E28 This part replaces 08321-01053.

08321-0105A

$1.84

21

NUT | E28

08319-31067

$2.03

22

LOCK WASHER | E28 This part replaces 08321-01053.

08321-0105A

$1.84

23

NUT | E28 This part replaces 08310-00053.

08310-0005A

$1.84

24

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19

25

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

26

BRACKET, CIRCUIT BREAKER

36751-40B00

$14.02
