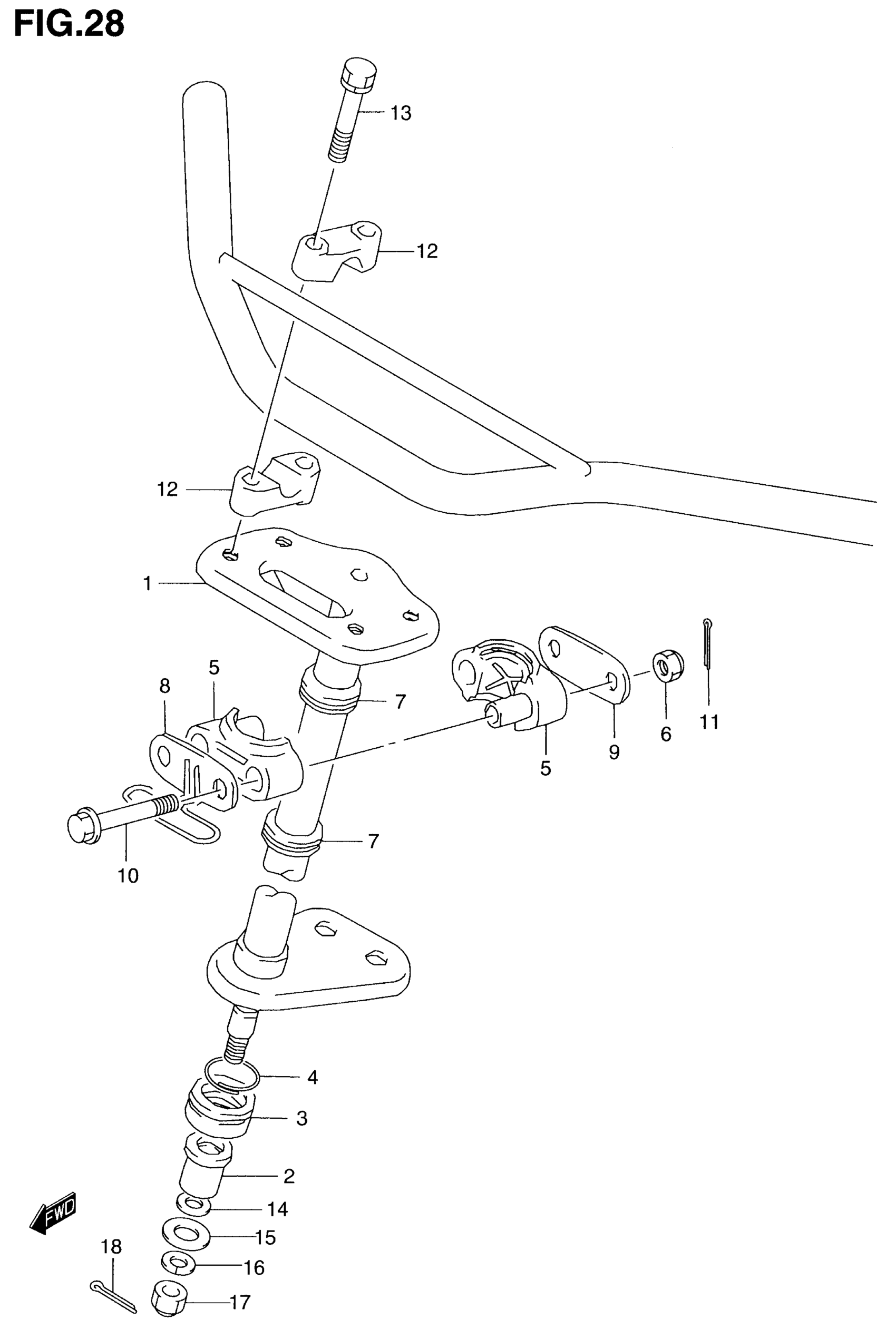

Suzuki LT80 (2001) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING (BLACK)

51650-40B00-019

Unavailable

2

BUSH,STEERING SHAFT,LOWER

51661-40B00

$15.10

3

DUST SEAL, STEERING SHAFT

51662-18900

$7.36

4

CLIP, DUST SEAL

09380-31002

$2.43

5

HOLDER,STEERING SHAFT

51670-18902

$18.02

6

NUT This part replaces 08316-10083.

08316-1008B

$2.66

7

DUST SEAL, STEERING

51678-18900

$8.12

8

REINF, STEERING HOLDER

51680-40B00

$7.75

9

REINF, STEERING HOLDER

51681-18900

Unavailable

10

BOLT (8X60)

09103-08085

$6.91

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

13

BOLT (8X55)

01254-08557

Unavailable

14

O RING (ID:13.8,D:2.50)

09280-14011

$4.77

15

WASHER | MODEL T/V This part replaces 09160-10128.

09160-10128-XC0

$2.62

15

WASHER | MODEL W/X/Y/K1 This part replaces 09160-10132.

09160-10128-XC0

$2.62

16

LOCK WASHER

09162-10008

$3.04

17

NUT | MODEL T/V/W

09159-10027

$3.10

17

NUT, REAR | MODEL X/Y/K1 This part replaces 08319-21103.

08319-2110A

$2.28

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
