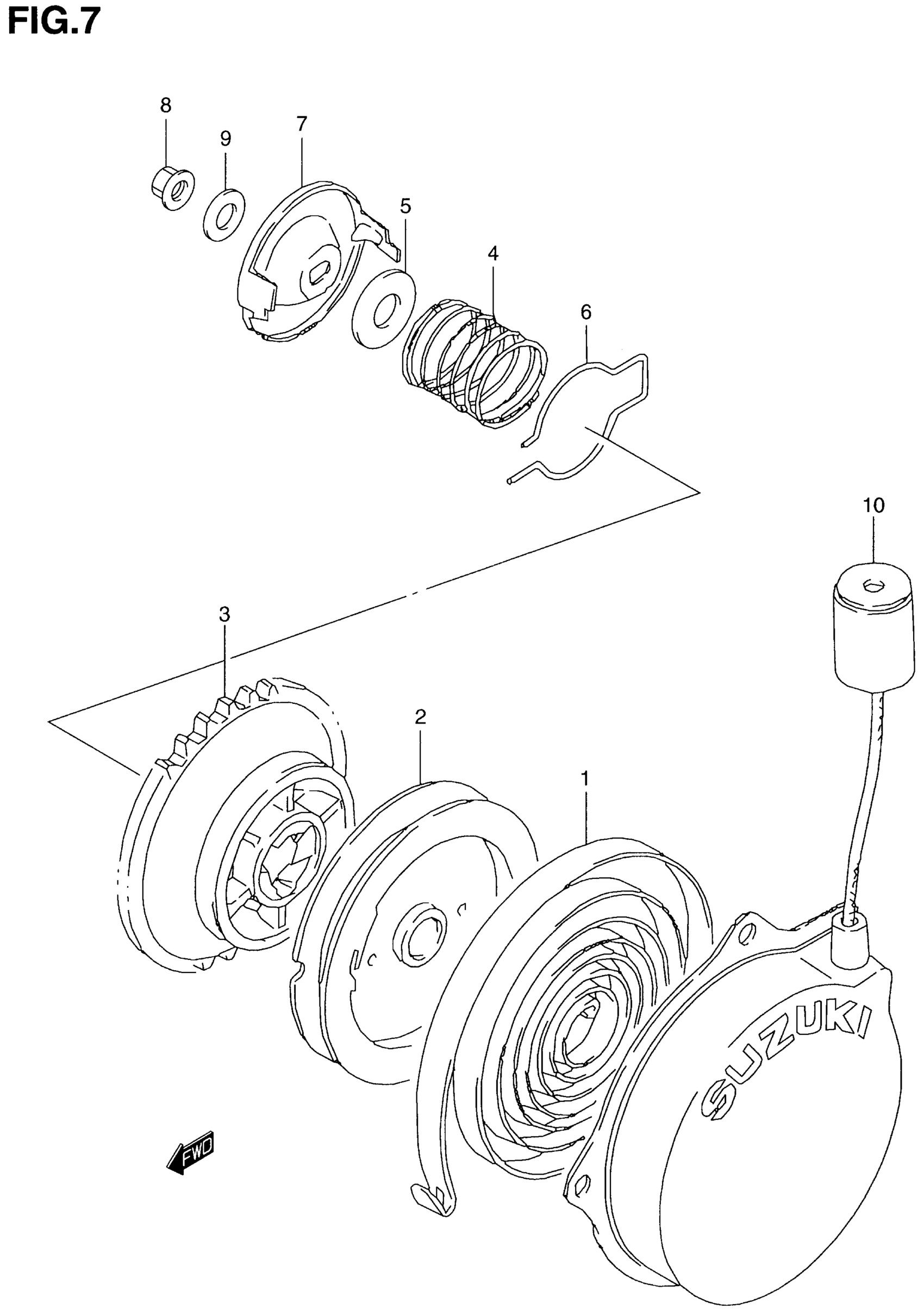

Suzuki LT80 (2001) RECOIL STARTER (OPT) Diagram

#

Description

Price

STARTER ASSY, RECOIL | Includes Item(s) 1 - 9 This part replaces 18100-40B02.

18100-40B03

$118.96

1

SPRING, SPIRAL

18142-40B00

$24.42

2

REEL

18121-40B01

$49.22

3

GEAR

18131-40B00

$37.31

4

SPRING, RETURN

18161-40B00

$14.76

5

WASHER | MODEL T/V/W This part replaces 09160-10078.

09160-10035

$1.78

5

WASHER | MODEL X/Y/K1 This part replaces 09160-10129.

09160-10035

$1.78

6

SPRING, FRICTION

18153-40B00

$9.00

7

RETAINER

18151-40B00

Unavailable

8

NUT

18334-40B00

$4.33

9

WASHER

09160-08059

$1.68

10

ROPE ASSY

18200-40B00

Unavailable
