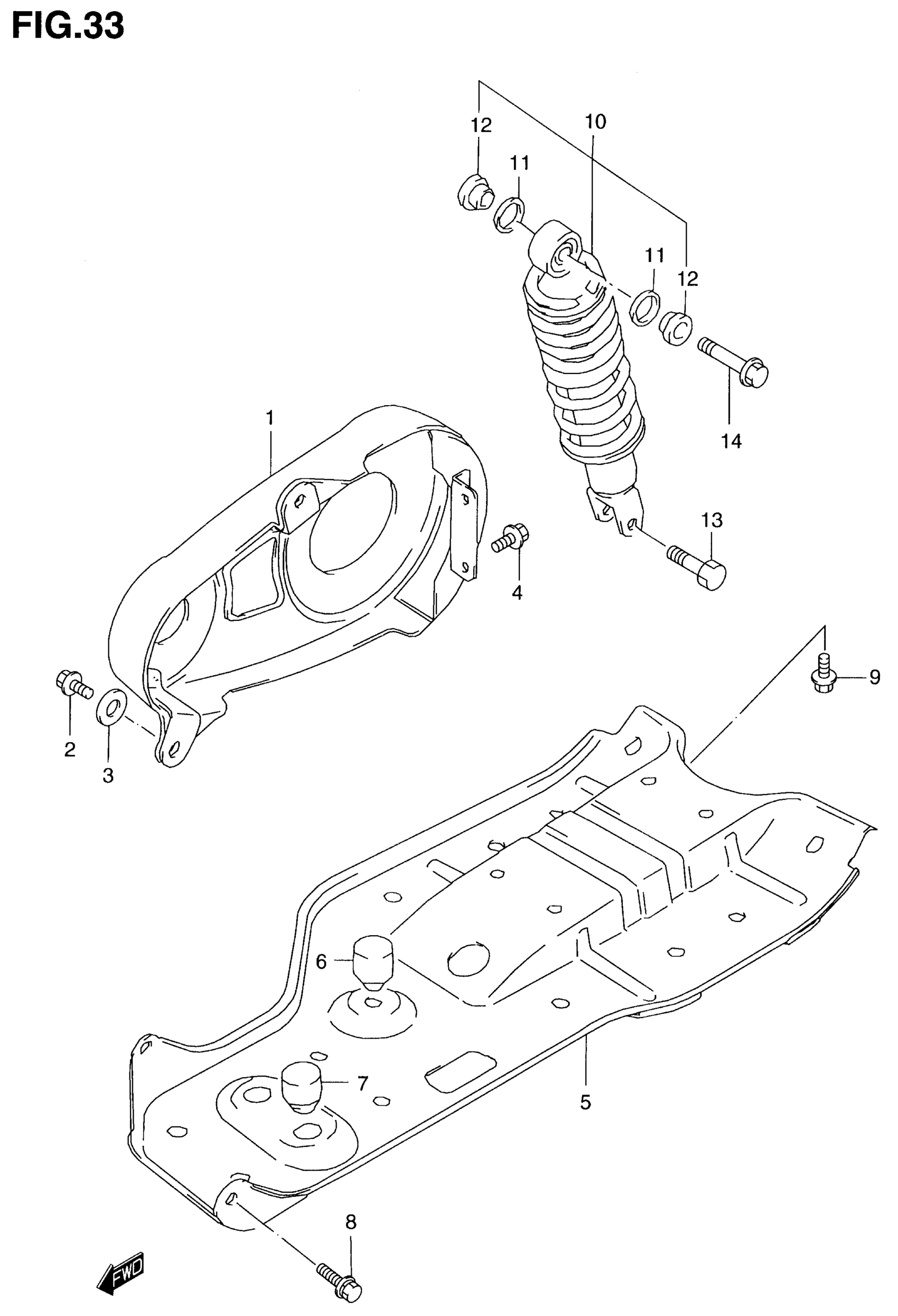

Suzuki LT80 (2001) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CASE, CHAIN

61310-40B01

$68.60

2

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

3

WASHER

09169-06026

$2.20

4

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

5

GUARD, UNDER (BLACK)

61390-40B00-019

Unavailable

6

CUSHION

09321-10017

$6.38

7

CUSHION

09321-14001

Unavailable

8

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

9

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

10

ABSORBER ASSY, REAR SHOCK (YELLOW) | Includes Item(s) 11 - 12

62100-40B10-163

Unavailable

11

SEAL, DUST

62226-27A20

$8.56

12

COLLAR

62684-40B00

$18.02

13

BOLT, LOWER (10X35)

62313-40B00

$4.52

14

BOLT, UPPER (10X44)

09103-10049

$7.63
