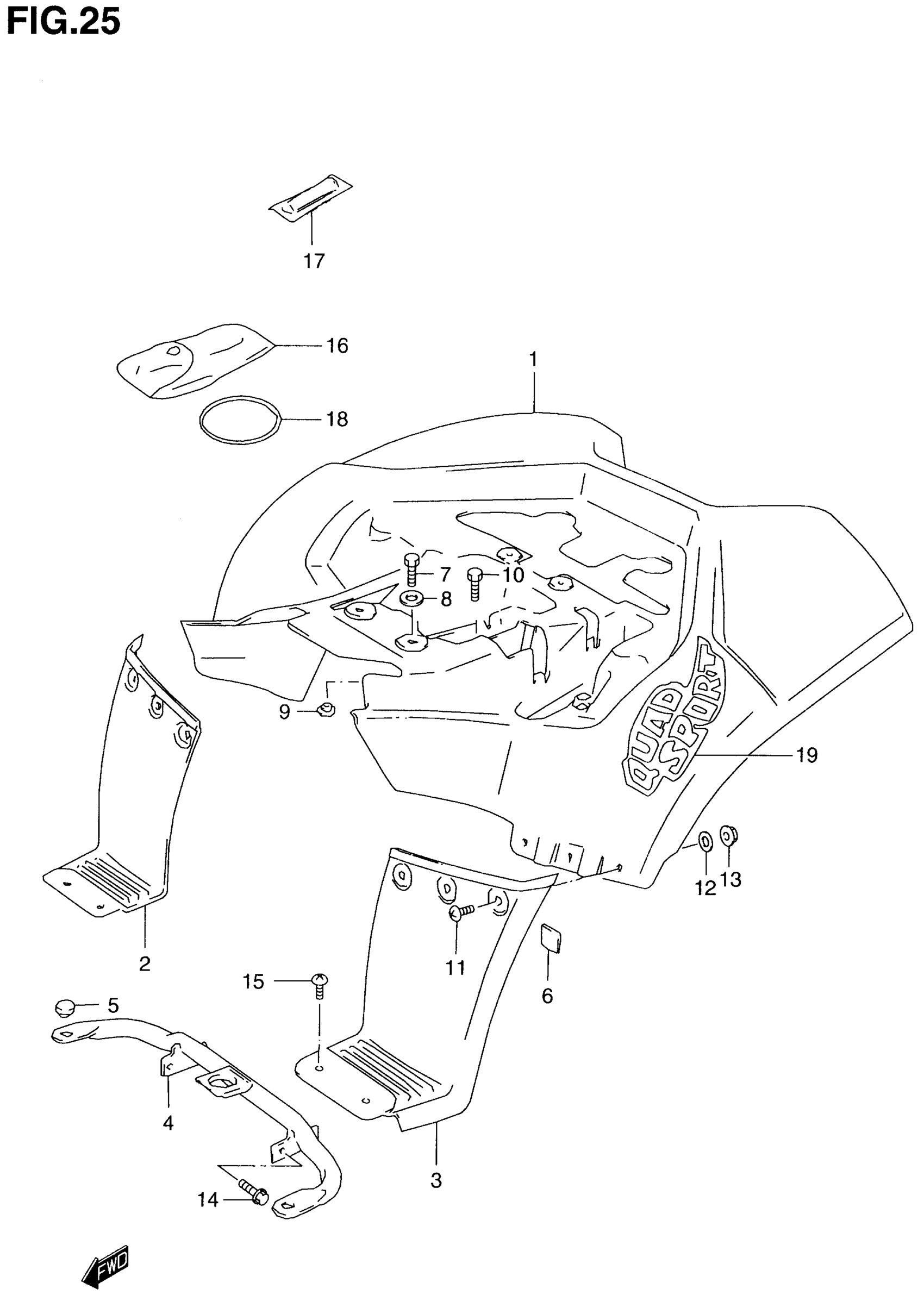

Suzuki LT80 (2001) REAR FENDER Diagram

#

Description
Price

1

BODY,REAR FENDE | MODEL T/V/W This part replaces 63111-40B00-14L.

63111-40B01-14L

Unavailable

1

BODY, REAR CENTER (WHITE) | MODEL X

63111-40B01-YD5

Unavailable

1

BODY, REAR CENTER (YELLOW) | MODEL Y/K1

63111-40B01-25Y

$509.50

1

BODY, REAR CENTER (WHITE) | MODEL T/V/W P28

63111-40B10-14L

Unavailable

1

BODY, REAR CENTER (WHITE) | MODEL X P28

63111-40B11-YD5

Unavailable

1

BODY, REAR CENTER (YELLOW) | MODEL Y/K1 P28

63111-40B11-25Y

Unavailable

2

BODY, REAR FENDER RH (BLACK)

63112-40B01-291

$31.34

3

BODY, REAR FENDER LH (BLACK)

63113-40B01-291

$31.34

4

REINFORCEMENT, REAR FENDER

63130-40B00

Unavailable

5

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

6

CUSHION, GUARD

63191-25C00

$3.05

7

BOLT, CENTER BODY

01500-06207

$2.28

8

WASHER, FRONT | MODEL T/V/W This part replaces 09160-06004.

09160-06134

$1.91

8

WASHER | MODEL X/Y/K1

09160-06134

$1.91

9

WASHER

09169-08036

$2.30

10

BOLT

09116-06010

$2.19

11

SCREW

09136-06081

$2.26

12

WASHER | MODEL T/V This part replaces 09160-06006.

09160-06084

$1.78

12

WASHER | MODEL W/X This part replaces 09160-06132.

09160-06084

$1.78

12

WASHER | MODEL Y/K1

09160-06084

$1.78

13

NUT

08319-31067

$2.03

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

15

SCREW

09136-06004

$2.15

16

TOOL ASSY This part replaces 09800-21026.

09800-21080

$36.42

17

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92

18

BAND

09280-70004

$3.85

19

EMBLEM, REAR FENDER | MODEL X

68171-40B60-K9U

Unavailable
