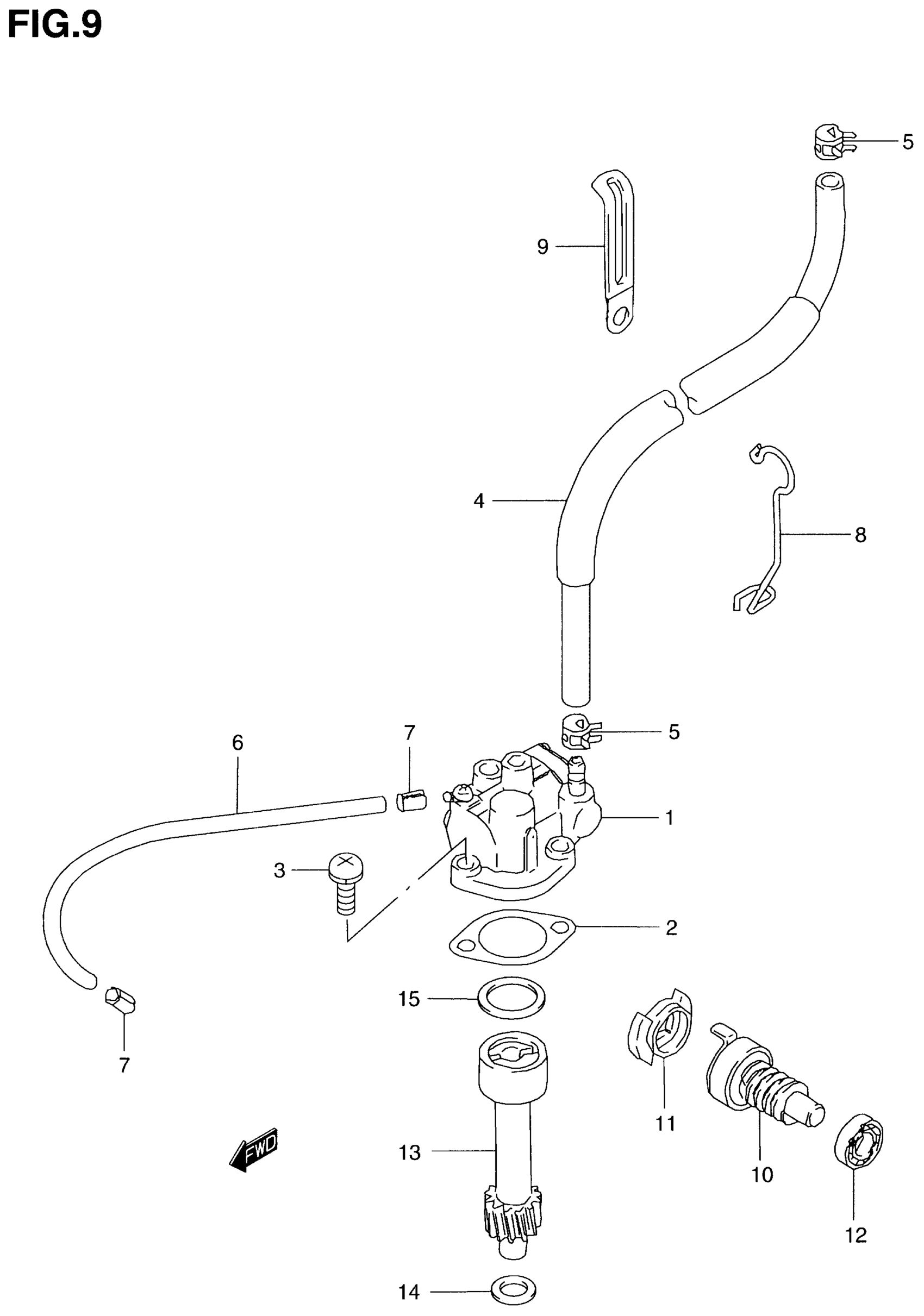

Suzuki LT80 (2001) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,OIL This part replaces 16100-40B02.

16100-40B03

$110.28

2

GASKET, OIL PUMP

16731-02300

$2.81

3

SCREW | ~E.NO.215675 This part replaces 02112-35163.

02112-3516A

$2.43

3

BOLT | E.NO.215676~ This part replaces 07130-05163.

07130-0516A

$2.41

4

HOSE,OIL NO.1 This part replaces 16810-40B00.

16810-40B01

$10.50

5

CLIP

09401-08411

$1.78

6

HOSE(2X5X600) | L:600?160 This part replaces 09352-20503-600.

09352-20504-600

$6.70

7

CLIP

09401-04401

$2.06

8

CLAMP, OIL HOSE

09403-13306

$6.80

9

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

10

GEAR, OIL PUMP DRIVE

16320-03A02

$70.13

11

PIECE, OIL PUMP DRIVE

16391-03A02

$13.68

12

BEARING (8X22X7)

09262-08008

$14.17

13

GEAR, OIL PUMP DRIVEN (NT:13)

16331-11B00

$39.33

14

WASHER | ~E.NO.190993

08211-08121

$1.99

14

WASHER (8X12X1) | E.NO.190994~

09181-08111

$1.93

15

THRUST WASHER | ~E.NO.190993

08211-15201

$2.38

15

THRUST WASHER | E.NO.190994~

09181-15111

$2.97
