2001 Suzuki LT80 Fuel Tank Diagram

← All diagrams

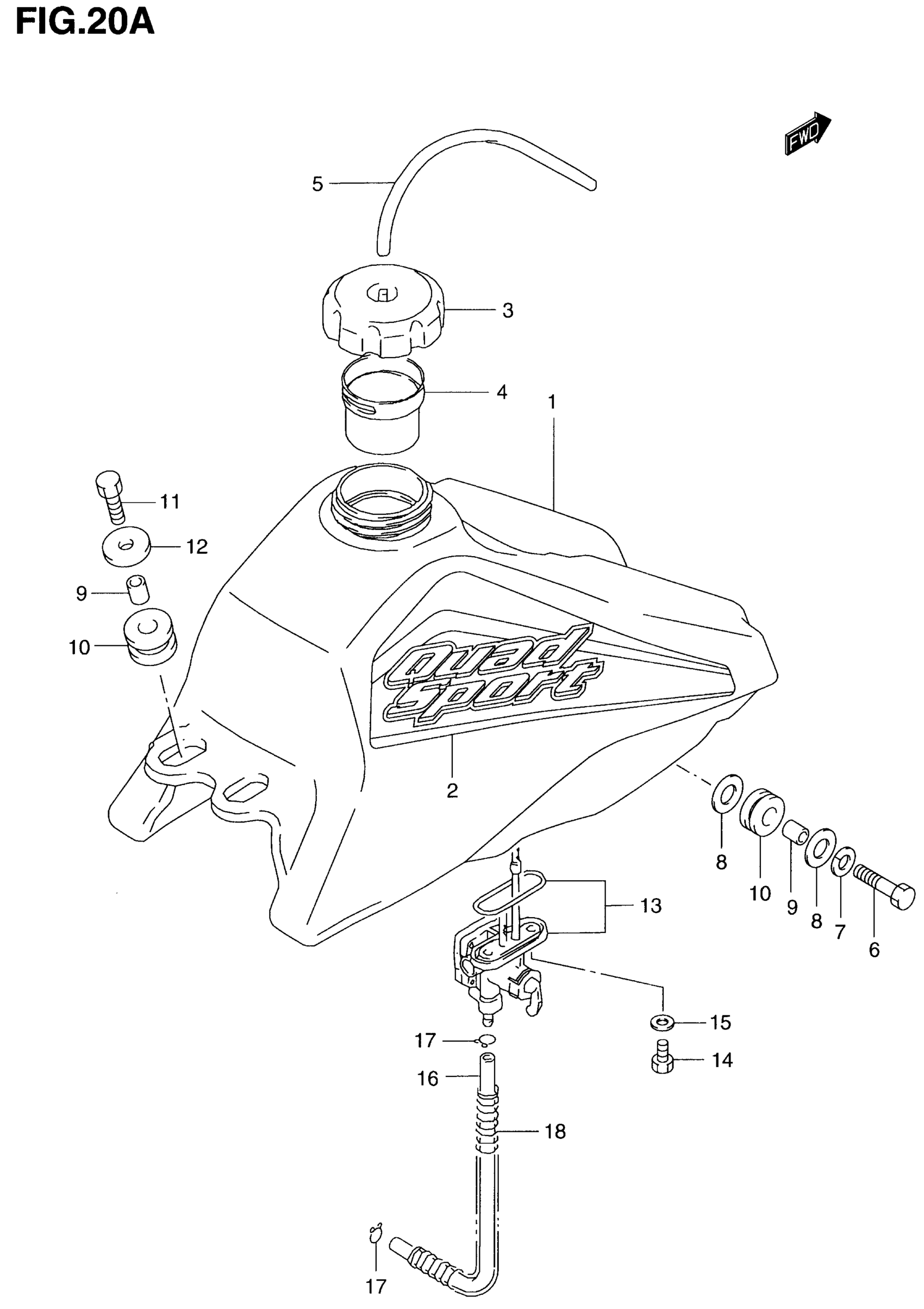

Find the part on the Fuel Tank diagram for your 2001 Suzuki LT80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT80 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (BLACK)

44110-40B00-291

1
Out of stock

2

TAPE SET, FUEL TANK

68110-40B20-DH4

1
Out of stock

3

CAP ASSY, FUEL TANK

44200-19A01

1
Out of stock

4

TUBE, FILLER INLET

44199-19A00

1
Out of stock

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

6

BOLT, FRONT

01550-08357

2
Out of stock

7

.LOCK WASHER

08321-01087

2

$2.28

In stock

8

WASHER

09160-08136

4
Out of stock

9

SPACER

09180-08191

4
Out of stock

10

CUSHION

09320-12016

4
Out of stock

11

BOLT, REAR

01500-06307

2
Out of stock

12

WASHER

09160-06136

2
Out of stock

13

COCK ASSY,FUEL This part replaces 44300-40B00.

44300-40B01

1
Out of stock

14

SCREW, FUEL COCK

09128-06065

2
Out of stock

15

GASKET

09168-06026

2
Out of stock

16

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

17

CLIP

09401-08401

2
Out of stock

18

SPRING

09440-10009

1
Out of stock
