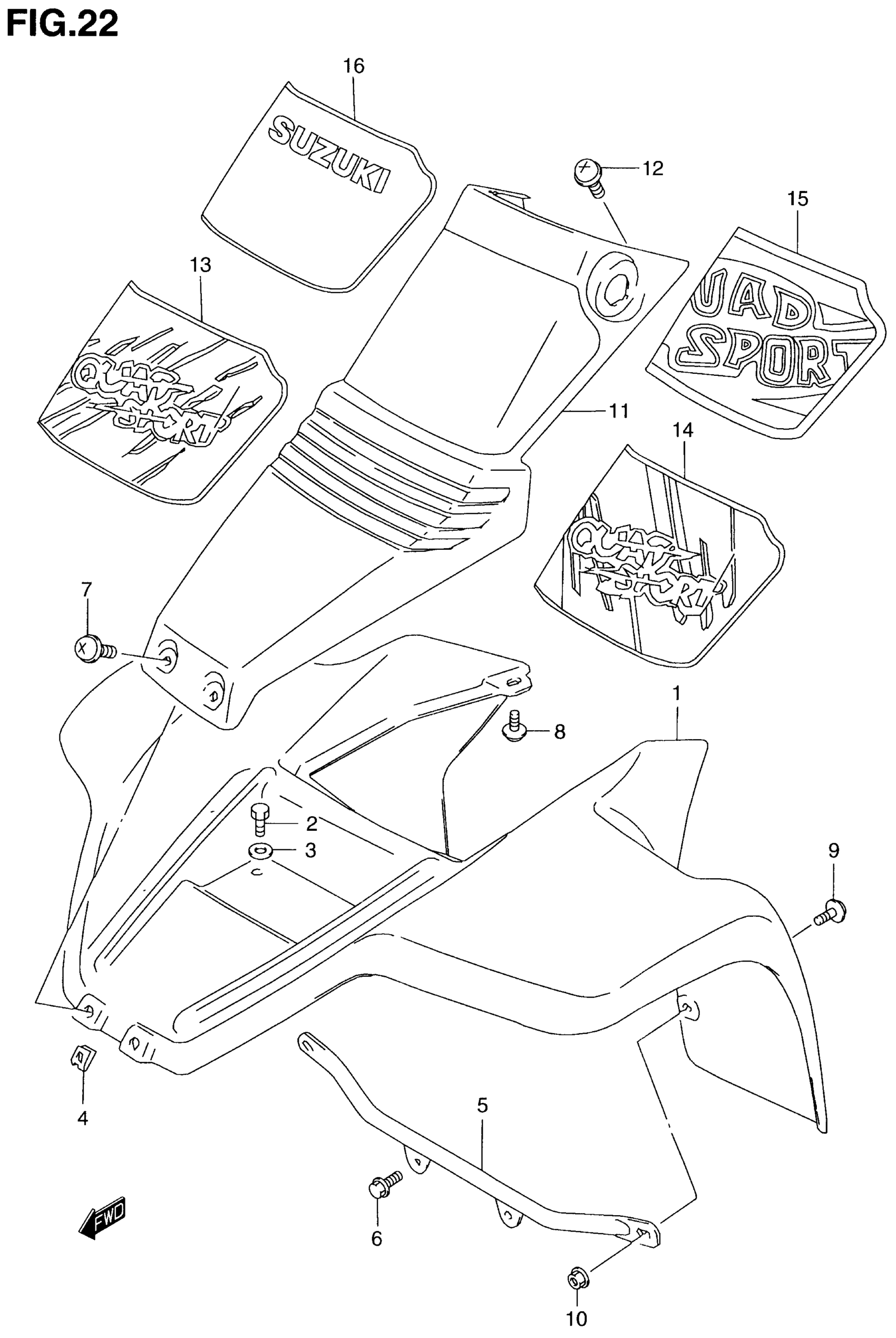

Suzuki LT80 (2001) FRONT FENDER (MODEL T/V/W/X/Y) Diagram

#

Description
Price

1

FENDER FRONT | MODEL T/V/W This part replaces 53111-40B00-14L.

53111-40B01-14L

Unavailable

1

FENDER, FRONT (WHITE) | MODEL X

53111-40B01-YD5

Unavailable

1

FENDER, FRONT (YELLOW) | MODEL Y

53111-40B01-25Y

$396.28

1

FENDER, FRONT (WHITE) | MODEL T/V/W P28

53111-40B10-14L

Unavailable

1

FENDER, FRONT (WHITE) | MODEL X P28

53111-40B11-YD5

Unavailable

1

FENDER, FRONT (YELLOW) | MODEL Y P28

53111-40B11-25Y

Unavailable

2

PLUG, DRAIN | MODEL T This part replaces 01500-08163.

01500-0816B

$2.50

2

BOLT, FENDER FRONT | MODEL V/W/X/Y

09116-08111

$3.78

3

WASHER (8.5X22X2) | MODEL T/V/W This part replaces 09160-08007.

09160-08127

$2.12

3

WASHER, FENDER FRONT | MODEL X/Y

09160-08127

$2.12

4

NUT, FENDER FRONT

53141-19A00

$4.34

5

BRACE, FRONT FENDER (BLACK) | MODEL T/V/W

53210-40B00-019

Unavailable

5

BRACE, FRONT FENDER (BLACK) | MODEL X/Y

53210-40B10-019

$48.78

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

SCREW This part replaces 09136-06062.

09136-06017

$2.59

8

SCREW, FRONT FENDER REAR

09136-06004

$2.15

9

SCREW, FENDER & BRACE

09136-06022

$2.21

10

NUT, FENDER & BRACE

08319-31067

$2.03

11

COVER, FENDER CENTER (PURPLE) | MODEL T/V/W/X

53118-40B00-Z16

Unavailable

11

COVER, FENDER CENTER (BLACK) | MODEL Y

53118-40B00-291

$80.47

12

SCREW, CENTER COVER

09136-06004

$2.15

13

TAPE, FRONT FENDER | MODEL T/V

68155-40B70-Z36

Unavailable

14

TAPE, FRONT FENDER | MODEL W

68155-40B80-H3W

Unavailable

15

TAPE, FRONT FENDER | MODEL X

68155-40B90-Y7S

Unavailable

16

TAPE, FRONT FENDER | MODEL Y

68155-40BA0-G8S

Unavailable
