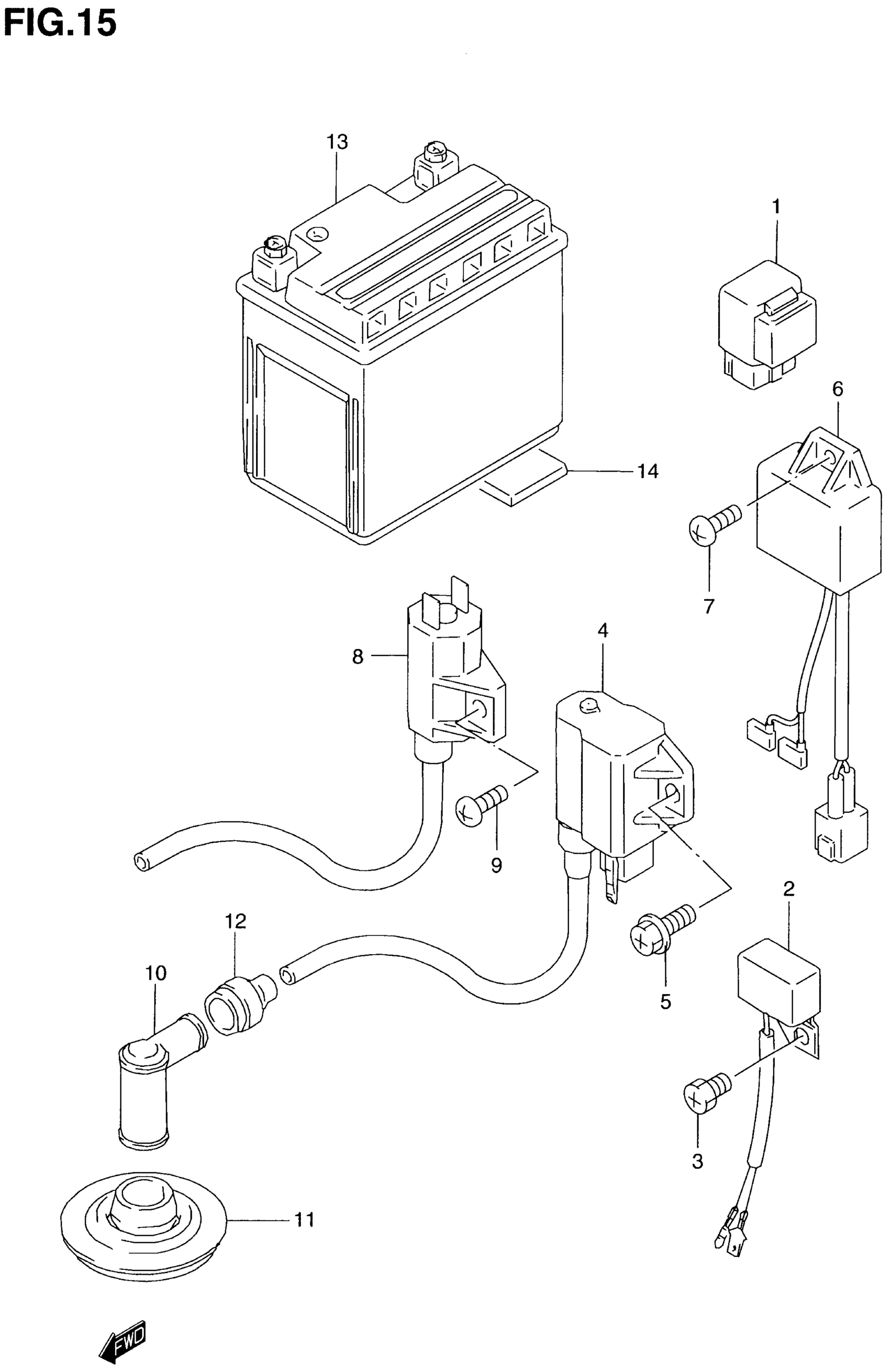

Suzuki LT80 (2001) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-40B01.

31800-40B02

$29.27

2

RECTIFIER ASSY

32800-40B00

Unavailable

3

SCREW (6X10)

09128-06044

$1.49

4

UNIT & COIL ASSY, IGNITION | MODEL T/V/W/X

33410-40B00

Unavailable

5

SCREW | MODEL T/V/W/X This part replaces 02112-76163.

02112-7616A

$2.12

6

CDI UNIT | MODEL Y/K1

32900-40B00

$238.23

7

SCREW | MODEL Y/K1 This part replaces 02162-06163.

02162-0616B

$2.03

8

UNIT & COIL ASSY, IGNITION | MODEL Y/K1 This part replaces 33410-22A00.

33410-22AV0

$116.00

9

SCREW | MODEL Y/K1 This part replaces 02162-06163.

02162-0616B

$2.03

10

CAP, SPARK PLUG | MODEL T/V/W/X This part replaces 33510-22010.

33510-97313

$14.73

10

CAP, SPARK PLUG | MODEL Y/K1

33510-12900

$20.08

11

BOOT, SPARK PLUG CAP

33543-40B00

$8.30

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

BATTERY ASSY (YTX5L-BS,12V4AH | MODEL T/V/W P3 This part replaces 33610-40B01.

33610-40B20

$58.55

13

BATTERY (YTX5L-BS,12V,4AH) | MODEL X/Y/K1 P3

33610-40B20

$58.55

13

BATTERY (YTX5L-BS,12V,4AH) | P28

33610-40B20

$58.55

14

CUSHION, BATTERY (170X95X3.0) | CUT AS REQUIRED PROFILE (30X40)

33651-37000

$4.48
